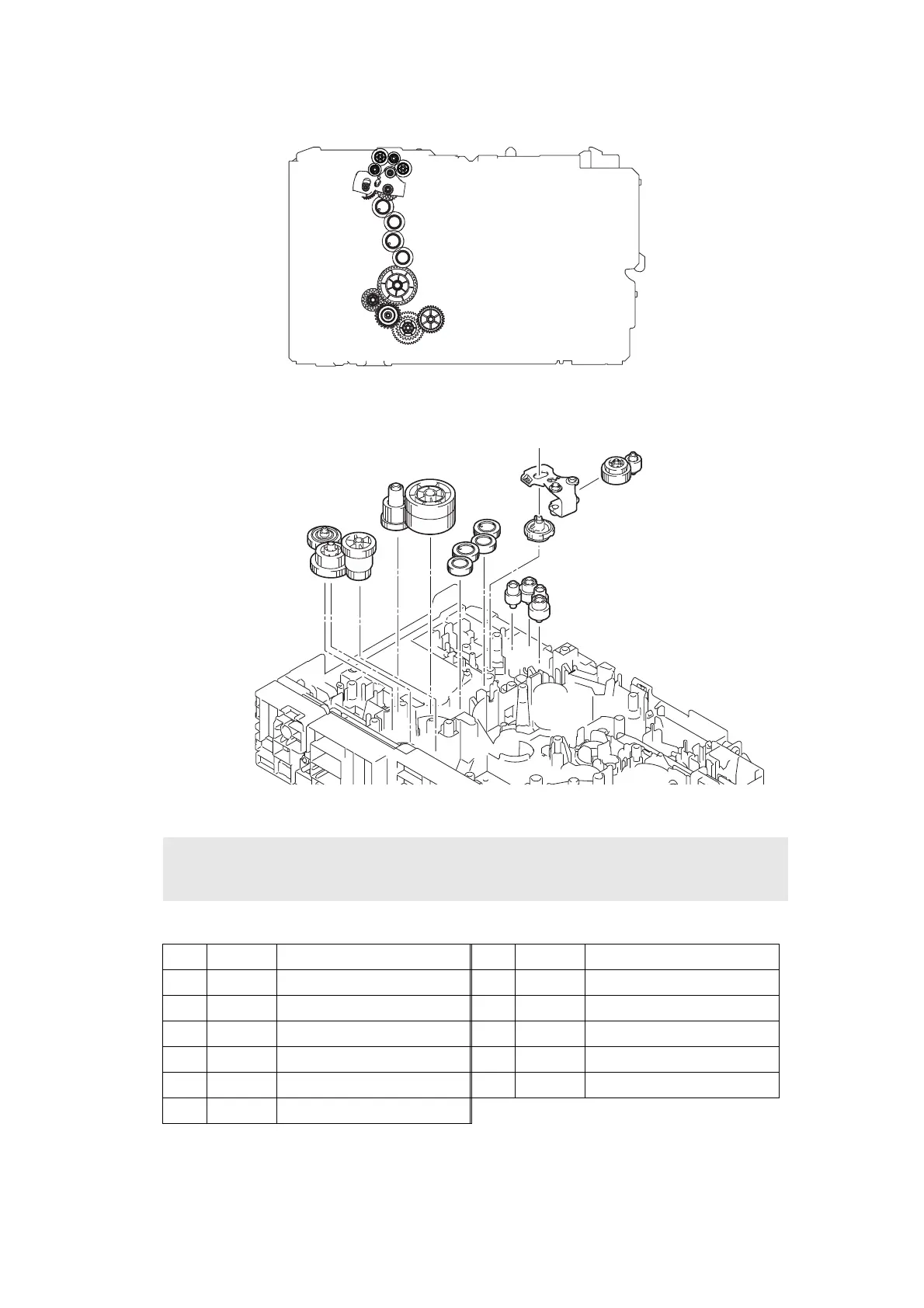

<Layout view>
Fig. 3-11
<Development view>
Fig. 3-12
<Name of gears>
* These parts are subject to change without notice.
Note:
• When handling gears, make sure that frame L faces up. Otherwise all gears come off.
14 LY4448 Fuser gear 22/33 21 LY4436 Eject idle gear 19
15 LY4438 Eject sector gear 33 22 LY4435 Eject idle gear 20
16 LY4444 Eject switch arm 23 LY4451 Duplex gear 27/19
17 LY4439 Eject gear 32/17 24 LY4450 Fuser drive gear 39
18 LY4442 Eject pendulum gear 17 25 LY4447 Fuser gear 23/40
19 LY4441 Eject idle gear 17 26 LY4449 Fuser pendulum gear 25
20 LY4440 Eject idle gear 23
