7-14
Confidential

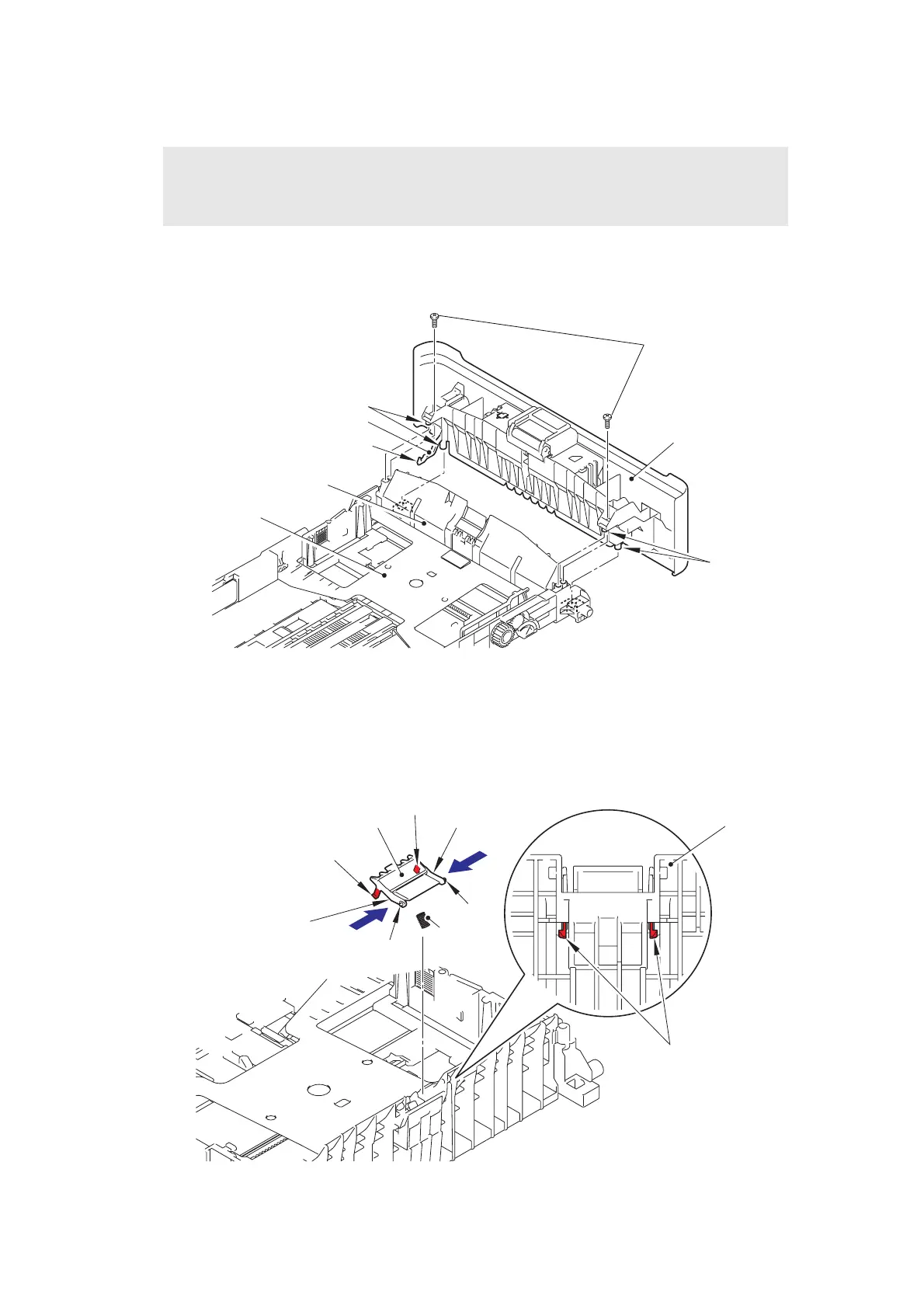

2.5 Paper feeding kit 1
(1) Remove the two taptite bind B M4x12 screws from the paper tray 1.
(2) Lift the plate to remove "A" on the T1 tray indicator from the plate, remove the four
bosses, and then remove the T1 tray cover from the paper tray 1.
Fig. 7-18
(3) Release the two hooks on the T1 separation pad ASSY from the paper tray 1.
(4) Push both arms of the T1 separation pad ASSY in the direction of the arrows to remove
both pins, and then remove the T1 separation pad ASSY from the paper tray 1.
(5) Remove the T1 separation pad spring from the T1 separation pad ASSY.
Fig. 7-19
Note:
• Paper tray 1 (250 sheets, 500 sheets): T1, Paper tray 2 (500 sheets): T2
• The illustration shows paper tray 1 (250 sheets).
Taptite bind B M4x12
T1 tray indicator
Plate
“A”
Paper tray 1
T1 tray cover
Bosses
Bosses
T1 separation pad ASSY
Hook
Arm
T1 separation
pad spring
Hooks
Paper tray 1
Arm
Pin
Pin
Hook
