3-128
Confidential

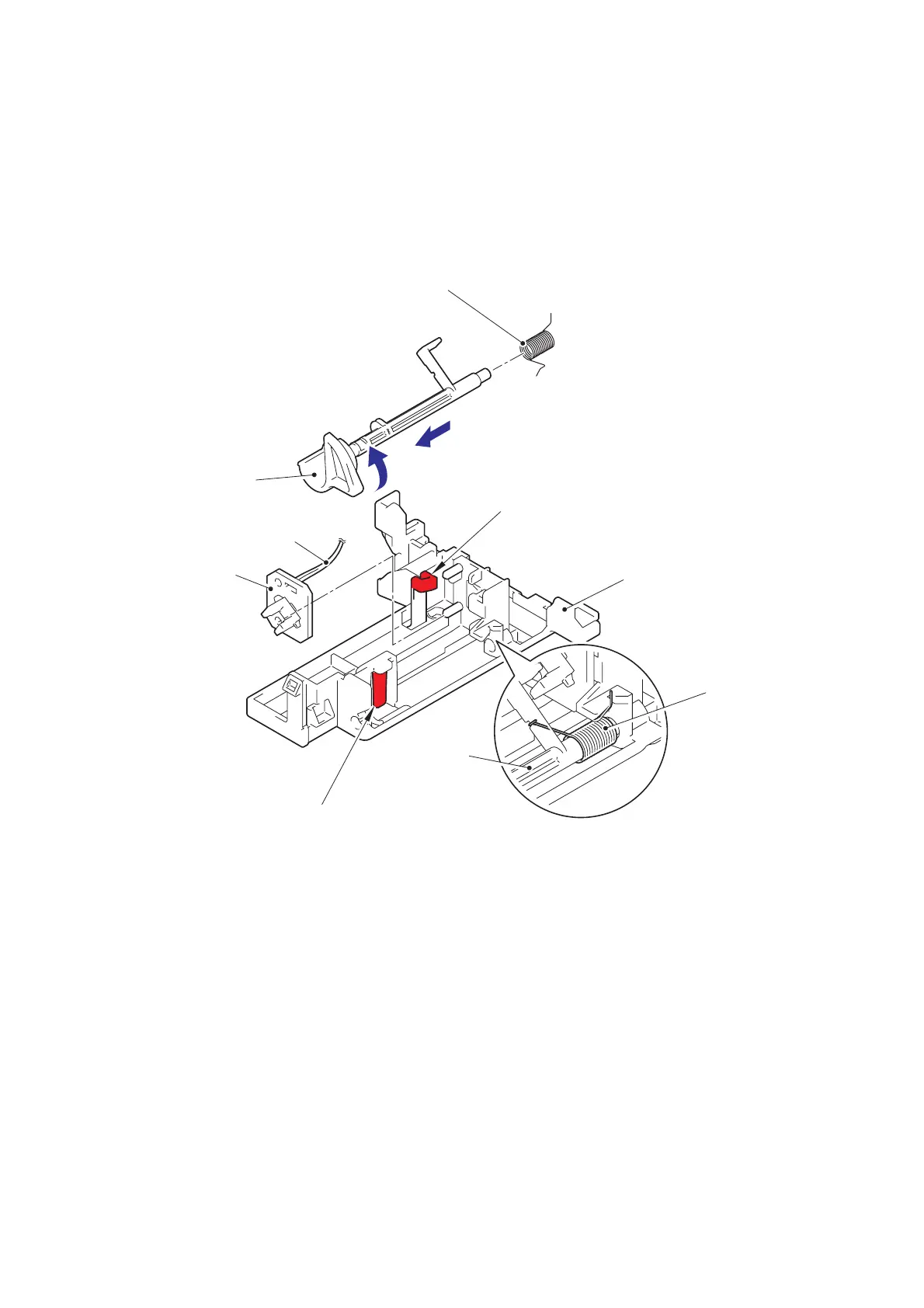

(7) Turn the T2 paper feed actuator in the direction of arrow 7a, and push the hook on the
T2 paper feed actuator holder ASSY to slide the T2 paper feed actuator in the direction
of arrow 7b to remove it from the T2 paper feed actuator holder ASSY.
(8) Remove the T2 paper feed actuator spring from the T2 paper feed actuator.
(9) Release the T2 paper feed sensor harness from the T2 paper feed actuator holder
ASSY, and then release the hook to remove the T2 paper feed sensor PCB ASSY from
the T2 paper feed actuator holder ASSY.
Fig. 3-162
7a
7b
T2 paper feed actuator
T2 paper feed actuator holder ASSY
T2 paper feed actuator spring
T2 paper feed
sensor harness
Hook
T2 paper feed
sensor PCB ASSY
Hook
T2 paper feed
actuator
T2 paper feed
actuator spring
