3-68
Confidential

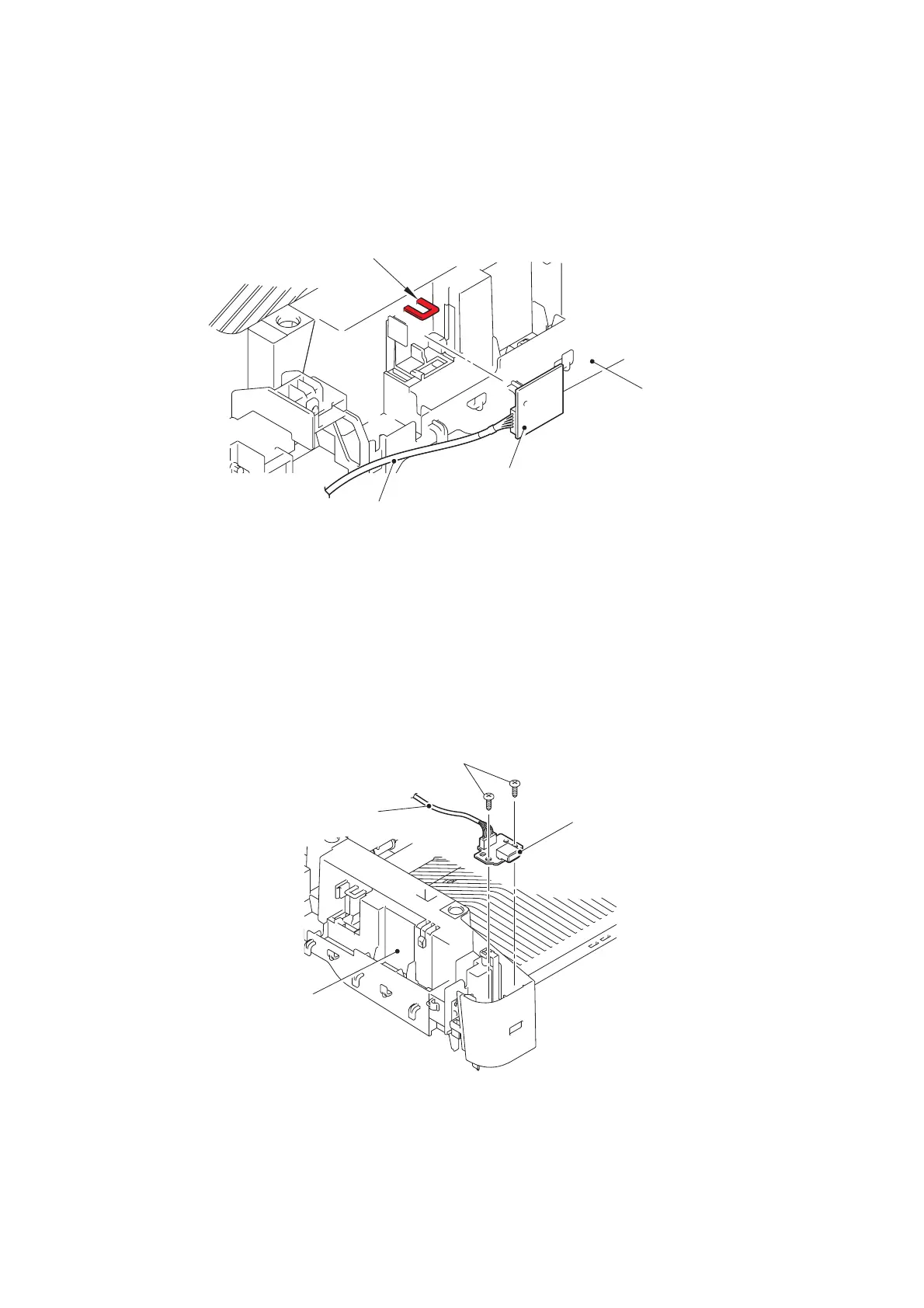

9.13 Wireless LAN PCB ASSY
(1) Release the hook, and remove the wireless LAN PCB ASSY from the joint cover.
Release the wireless LAN harness from the securing fixtures.
(2) Remove the wireless LAN harness from the wireless LAN PCB ASSY.
Fig. 3-93
Harness routing: Refer to “9.Wireless LAN PCB ASSY / USB host PCB ASSY”.
9.14 USB host PCB ASSY
(1) Remove the two taptite bind B M4x12 screws to remove the USB host PCB ASSY from
the joint cover, and release the USB host harness from the securing fixtures.
(2) Disconnect the USB host harness from the USB host PCB ASSY.
Fig. 3-94
Harness routing: Refer to “9.Wireless LAN PCB ASSY / USB host PCB ASSY”.
Joint cover
Hook
Wireless LAN PCB ASSY
Wireless LAN harness
Taptite bind B M4x12
USB host PCB ASSY
Joint cover
USB host harness
