(5) Push the two knobs on the fuser cover, and pull the fuser cover down in the direction of
the arrow.
(6) Remove the fuser cover from the bosses on the fuser unit, and remove the fuser cover
from the machine.

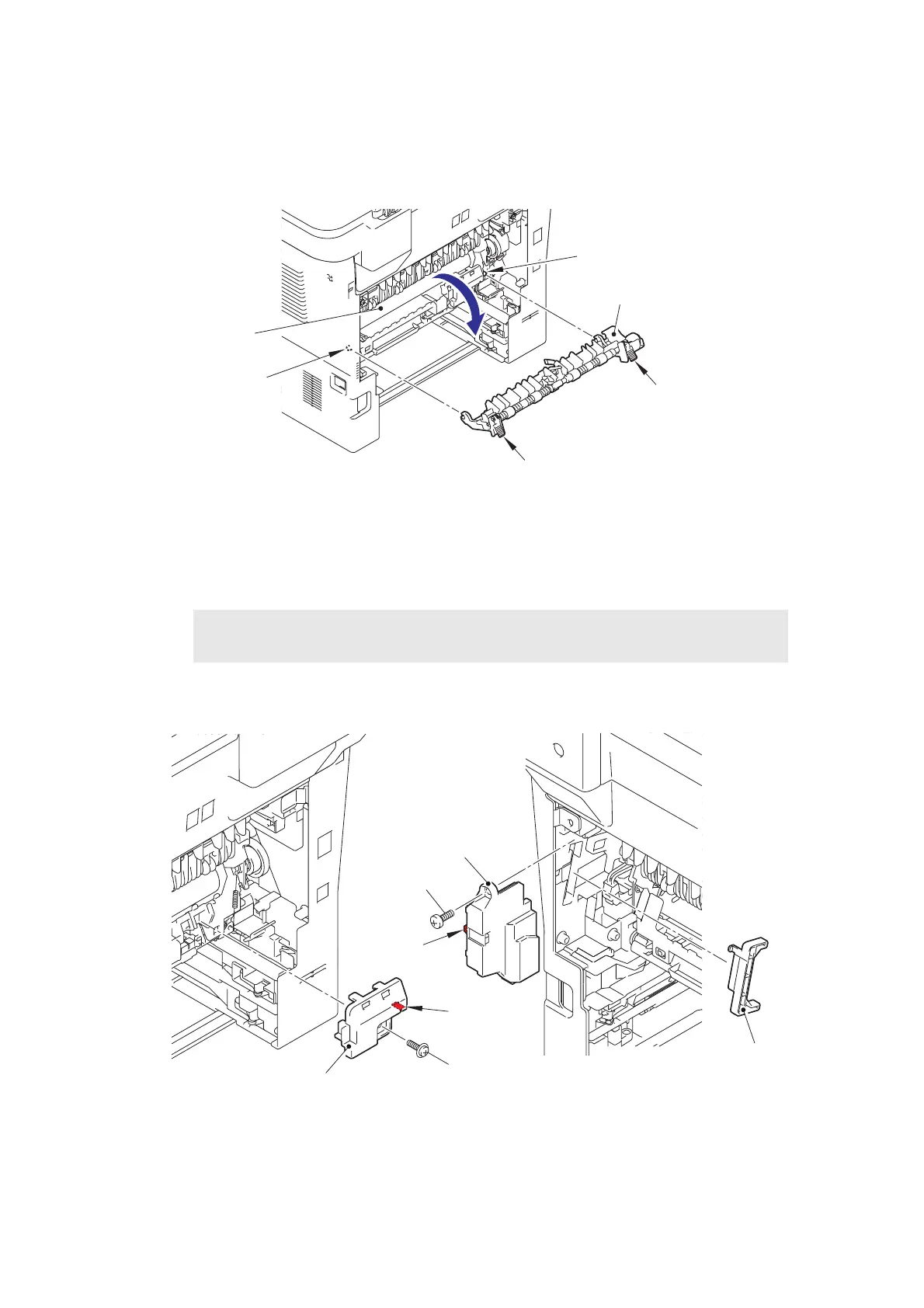

Fig. 7-4
(7) Remove the taptite bind B M4x12 screw, and release the hook to remove the fuser unit
line cover R from the machine.
(8) Remove the rear nip release link from the machine.
(9) Remove the taptite pan B M4x14 screw, and release the hook to remove the fuser unit
line cover L from the machine.
Fig. 7-5
Note:
• Make sure that the front cover is open when removing the rear nip release link.
Fuser cover
Knob
Fuser unit
Boss
Knob
Boss
Taptite pan B M4x14
Taptite bind B M4x12
Fuser unit line cover R
Hook
Hook
Fuser unit line cover L
Rear nip release link
