9.11.1 First side CIS unit

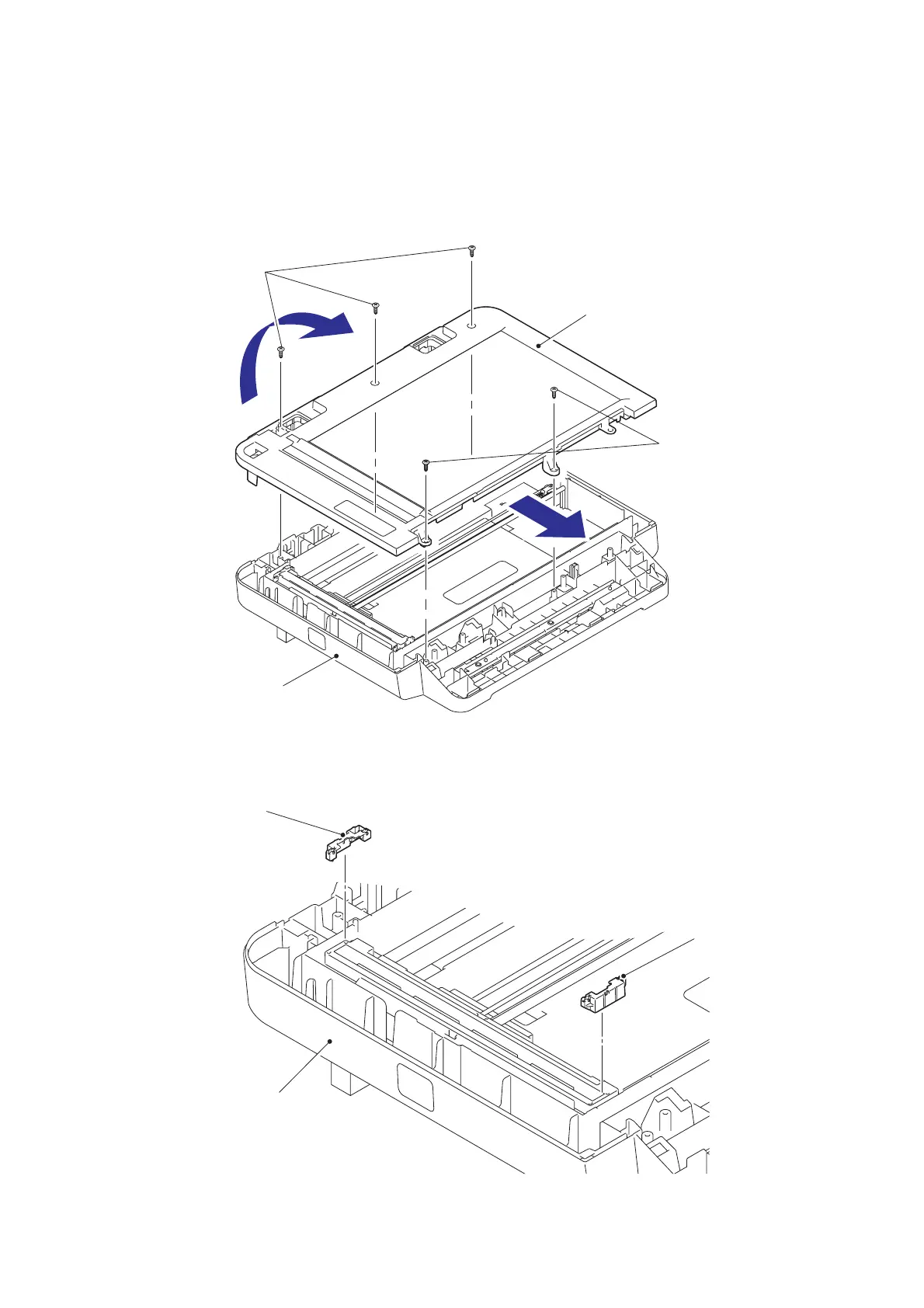

(1) Remove the five taptite bind B M4x12 screws from the document scanner top cover
ASSY.
(2) Lift the back of the document scanner top cover ASSY, and slide it in the direction of
arrow 2 to remove it from the document scanner unit.
Fig. 3-82
(3) Remove the CIS guides L and R from the document scanner unit.
Fig. 3-83
Document scanner top cover ASSY
Taptite bind B M4x12
Taptite bind B M4x12
Document scanner unit
2
CIS guide L
CIS guide R
Document scanner unit
