Brother DCP-8157DN User Manual

3-34
Confidential
9.9.3 ADF document output support flap
(1) Reverse the ADF unit.
(2) Release the two bosses, and remove the ADF document output support flap from the
ADF unit.
9.9.4 Document sub tray
(1) Open the document sub tray.
(2) Release the two bosses, and remove the document sub tray from the ADF unit.
9.9.5 ADF cover ASSY
(1) Open the ADF cover ASSY.
(2) Release the two bosses, and remove the ADF cover ASSY from the ADF unit.

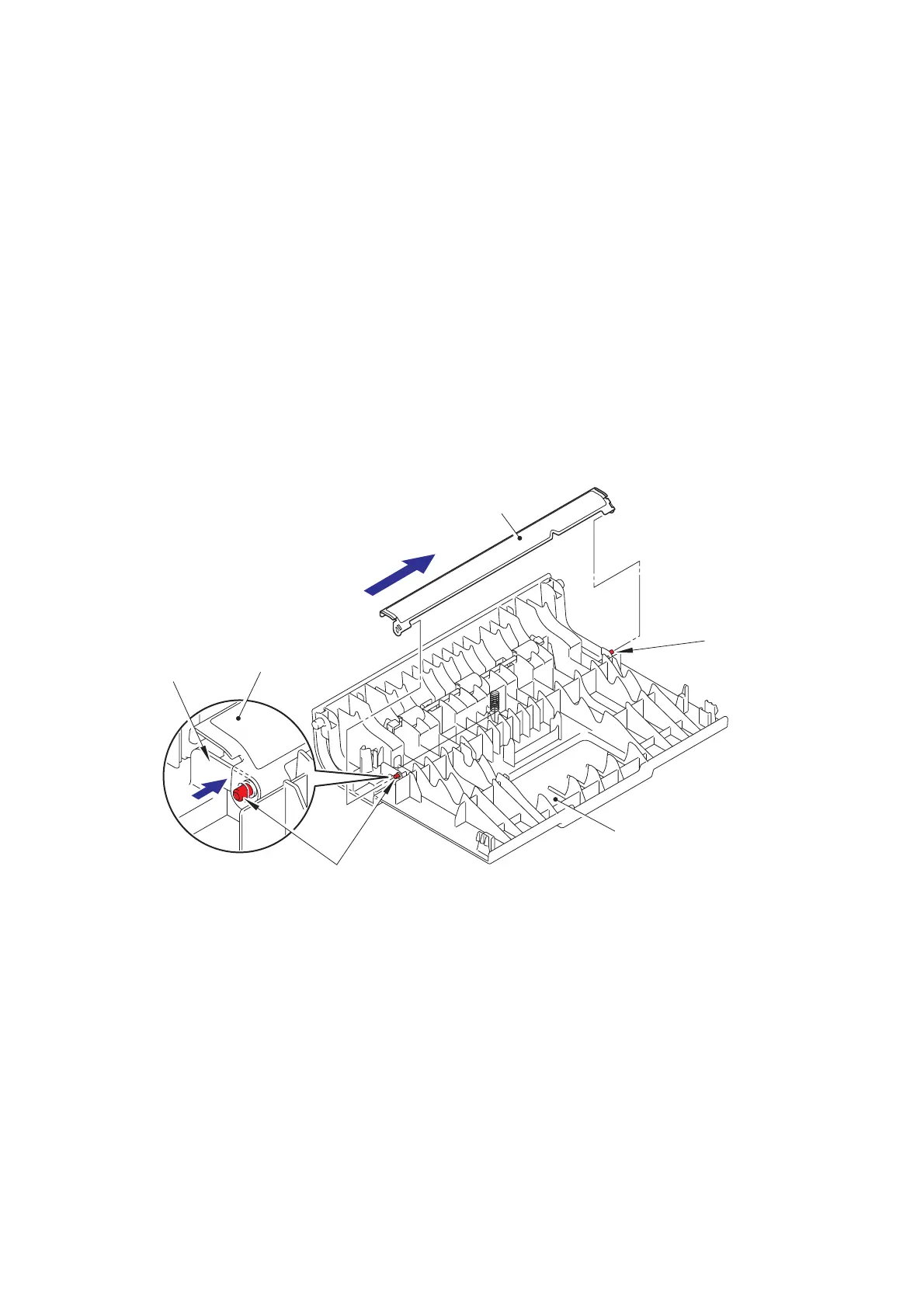

(3) Push the arm of the ADF cover ASSY in the direction of arrow 3a to release boss A from
the arm of the second side document hold. Slide the second side document hold in the
direction of arrow 3b to release it from boss B. Remove the second side document hold
from the ADF cover ASSY. (Duplex scanning models only)
Fig. 3-32
Second side document hold
ADF cover ASSY
Boss B
Second side document hold
Boss A
3a
3b
Arm
