Brother DCP-8157DN User Manual

7-15
Confidential
(6) Push the T1 lift arm in the direction of arrow 6, and remove the boss on the T1 roller
holder ASSY from the T1 lift arm.
(7) Turn the T1 roller holder ASSY in the direction of arrow 7a, and slide it in the direction of
arrow 7b to remove it from the T1 separation roller shaft. Then remove the T1 roller
holder ASSY from the machine.

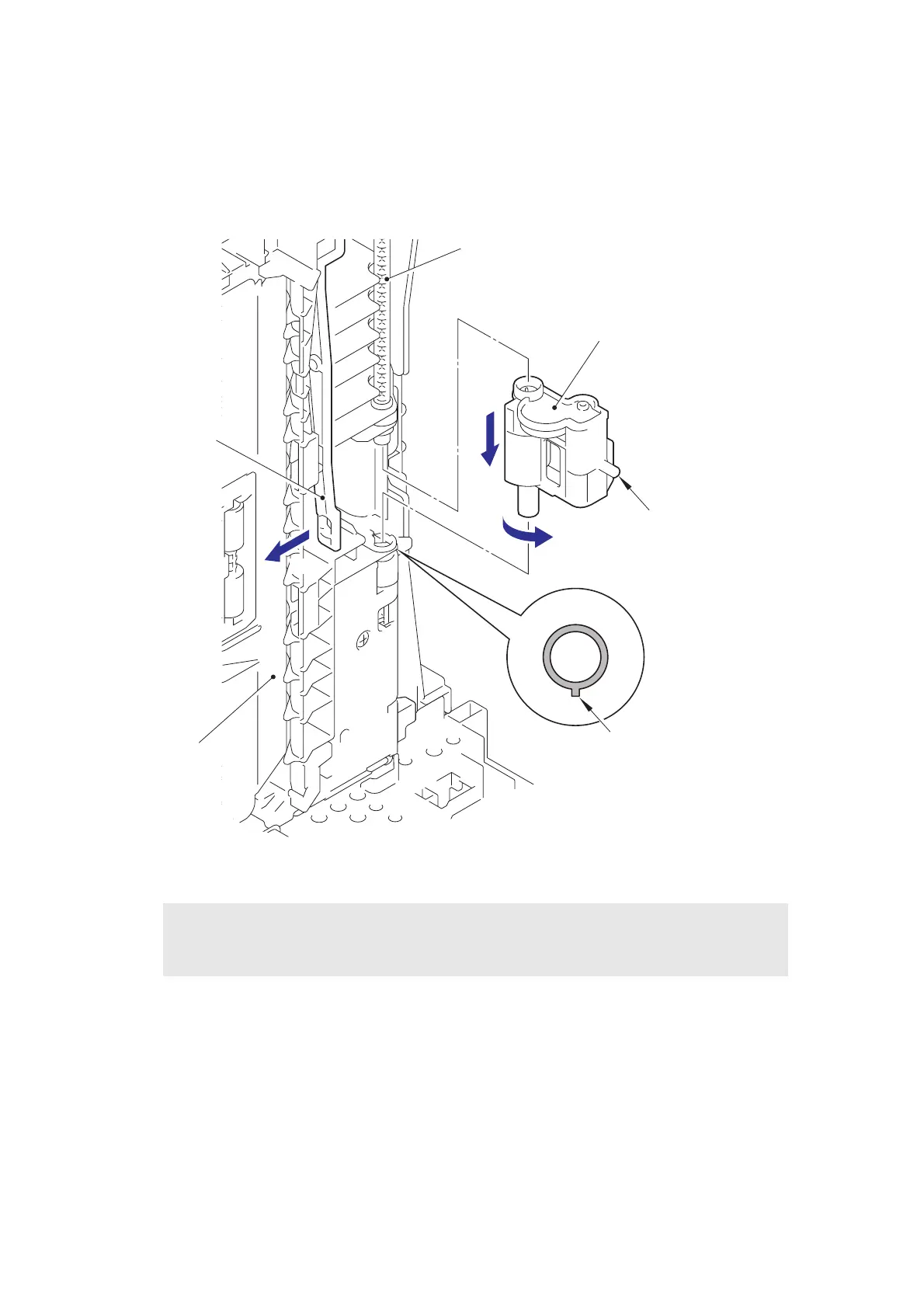

Fig. 7-20
Assembling Note:
• When attaching the T1 roller holder ASSY, engage "A" on the shaft of the T1 roller
holder ASSY with the hole on the paper feed frame, and insert the shaft into the hole.
T1 separation roller shaft
T1 lift arm
T1 roller holder ASSY
Boss
6
7a
7b
“A”
Paper feed frame
