3-118
Confidential
(6) Push the hook on the lift gear Z48M10 while lifting the plate-up plate, and remove the lift
gear Z48M10 from paper tray 2.
(7) Remove the gear Z22M10 and the idle gear Z18M10 from paper tray 2.

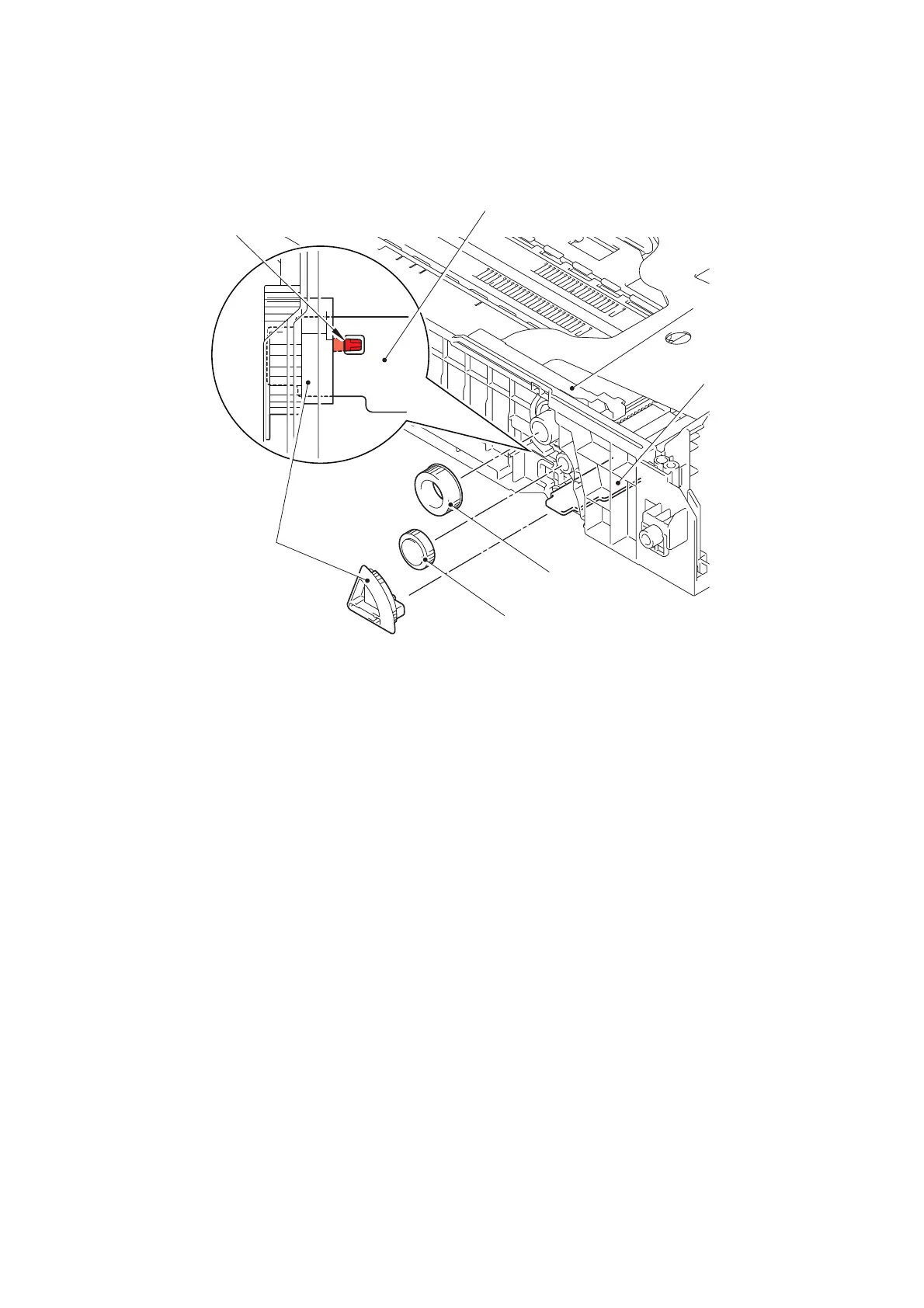

Fig. 3-148
Gear Z22M10
Idle gear Z18M10
Lift gear Z48M10
Paper tray 2
Plate-up plate
Plate-up plate
Hook
