Chapter 4
4-4
F-4-5

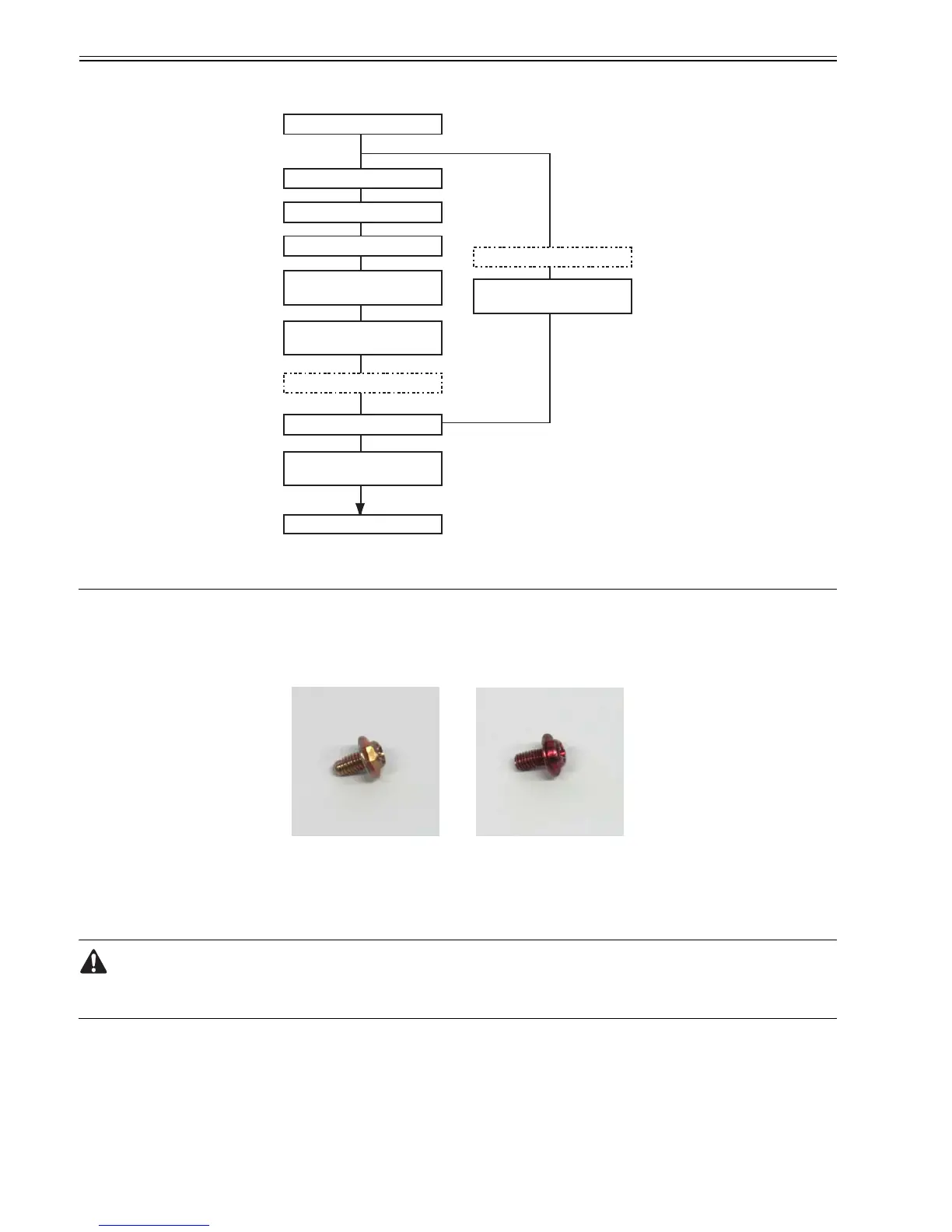

4.3 Points to Note on Disassembly and Reassembly
4.3.1 Note on locations prohibited from disassembly
0012-6514
Points where disassembly is forbidden because they are not accessible to a market adjustment are marked by red screws.
F-4-6
4.3.2 Moving the carriage manually
0014-8950
When moving the carriage, hold it by handle [1] shown below.
Move the carriage as required during assembly and disassembly to prevent the carriage from contacting the parts to be removed.
You cannot move the carriage when capping has been performed. Refer to DISASSEMBLY/REASSEMBLY > Points to Notes on Disassembly and Reassembly
> Opening the caps and moving the wiper unit to remove the caps, and then move the carriage.
<Legend > c: Connector h: Hook s: Screw
Printer
Automatic ink drain
Manual ink drain
Right circle cover (L) (h1)
Right circle cover (S) (h1)
Right side covers (s3, h2)
Left/right tank cover units
(s3)
Drain the ink in subtanks
Move the carriage to
above the platen
Ink tank unit(c5, s2)
4. Ink Tank unit Disassembly Flow
Remove the left/right
ink tube joints
Left/right tank cover units
(s3)
To Next Page
