Chapter 6
6-30

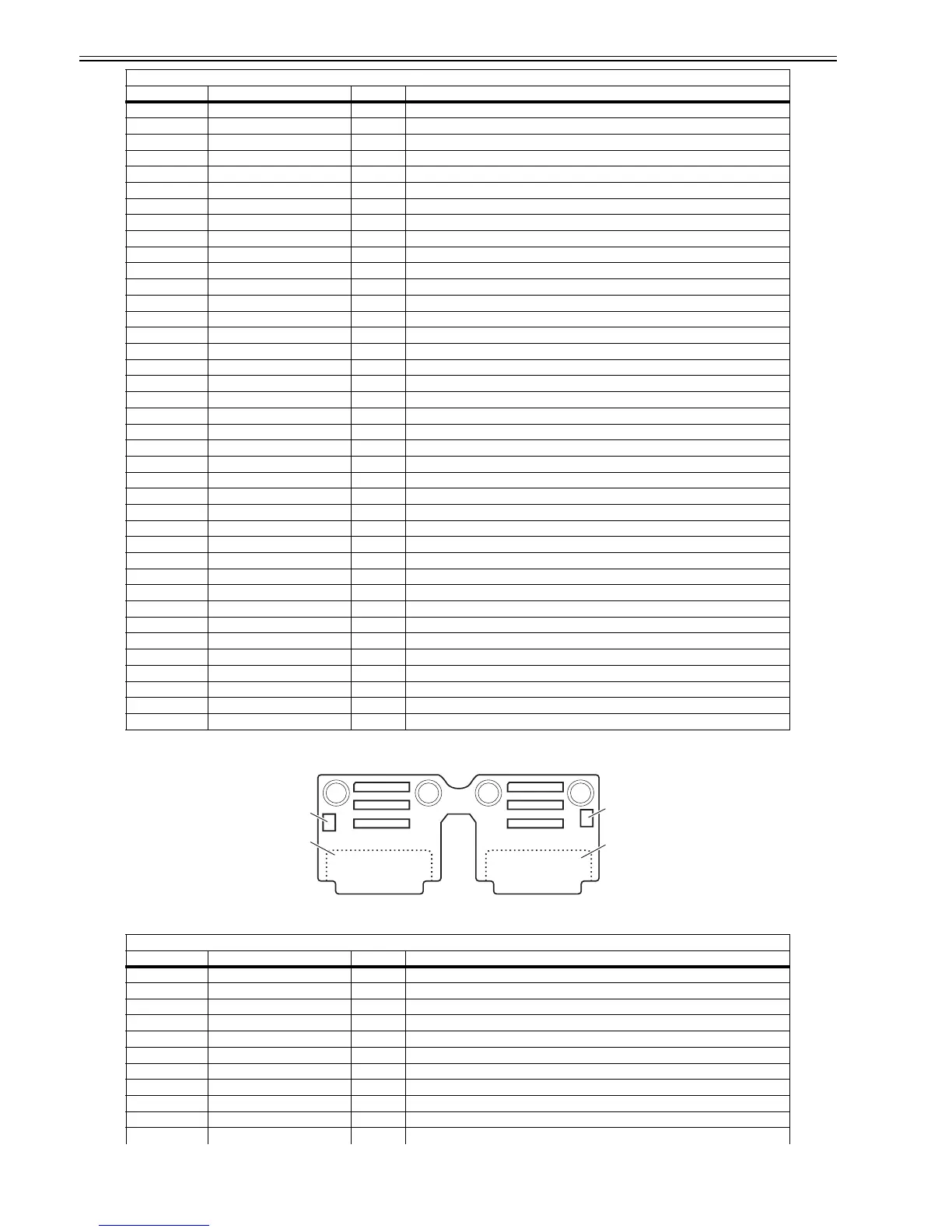

6.2.3 Head relay PCB
0012-6667
F-6-3
T-6-36
12 H0-DASH LICC2 OUT Head analogue switch A/D trigger signal
13 GND - GND
14 H0-DLD_LICC2 OUT Head(R) analogue switch latch signal
15 GND - GND
16 H0-DATA_LICC2 OUT Head(R) analogue switch data signal
17 GND - GND
18 H0-DASLK_LICC2 OUT Head(R) analogue switch clock signal
19 GND - GND
20 H0-DSOUT1 IN Head(R) temperature output signal 1
21 GND - GND
22 H0-DSOUT2 IN Head(R) temperature output signal 2
23 GND - GND
24 H0-C-DATA-4-OD OUT Odd head(R) data signal 4(C)
25 GND - GND
26 H0-C-HE-4 OUT Head(R) heat enable signal 4(C)
27 GND - GND
28 H0-B-DATA-3-OD OUT Odd head(R) data signal 3(B)
29 GND - GND
30 H0-B-DATA-2-OD OUT Odd head(R) data signal 2(B)
31 GND - GND
32 H0-B-HE-2 OUT Head(R) heat enable signal 2(B)
33 GND - GND
34 H0-A-DATA-1-OD OUT Odd head(R) data signal 1(A)
35 GND - GND
36 H0-A-DATA-0-OD OUT Odd head(R) data signal 0(A)
37 GND - GND
38 H0-A-HE-0 OUT Head(R) heat enable signal 0(A)
39 GND - GND
40 H0-A-DATA-0-EV OUT Even head(R) data signal 0(A)
41 GND - GND
42 H0-A-DATA-1-EV OUT Even head(R) data signal 1(A)
43 GND - GND
44 H0-A-HE-1 OUT Head(R) heat enable signal 1(A)
45 GND - GND
46 H0_LT OUT Head(R) latch signal
47 GND - GND
48 H0_CLK OUT Head(R) clock signal
49 GND - GND
50 LIFT_CAM_IN IN Lift cam sensor output signal
J101
Pin Number Signal name IN/OUT Function
1 GND - GND
2 GND - GND
3 VHT12 IN Power supply
4 VH2_FB IN VH2 feed back voltage
5 VH2 IN Power supply
6 VH2 IN Power supply
7 VH2 IN Power supply
8 VH2 IN Power supply
9 VH2 IN Power supply
10 VH2 IN Power supply
11 GND - GND
J803
Pin Number Signal name IN/OUT Function
J201
J202
J203
J101
J102
J103
J502
J602
J501
J601
