Chapter 4
4-18

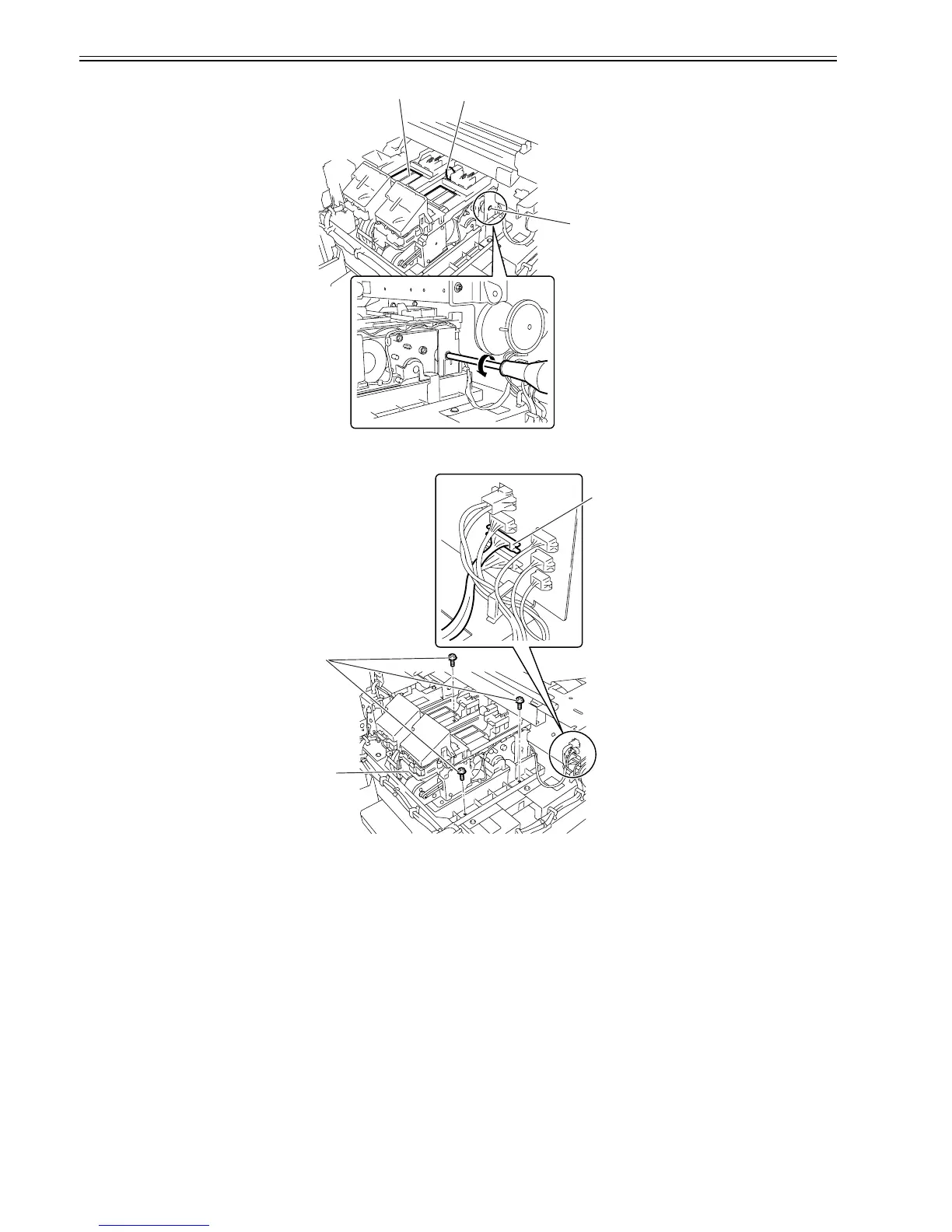

F-4-40
2) Remove connector [1] and three screws [2] and then remove purge unit [3].
F-4-41
4.3.10 Ink tank unit
0014-8979
a) Removing ink tank units
1) Drain the ink. See Disassembly/Reassembly > Points to Note on Disassembly/Reassembly >Draining the ink.
2) Detach the joint between the ink tube unit and ink tank unit [1].
3) Remove four screws [2] and five connectors [3] and then remove the ink tank unit.
[1]
[3]
[2]
[1]
[2]
[3]
