Chapter 4
4-5
F-4-7
4.3.3 Units requiring draining of ink
0014-8953
When disassembling the following units of the ink passage, drain the filled ink completely to prevent ink leakage. For how to drain the ink, refer to DISASSEM-
BLY/REASSEMBLY > Points to Notes on Disassembly and Reassembly > Draining the ink.
[1] Carriage unit
Refer to DISASSEMBLY/REASSEMBLY > Points to Notes on Disassembly and Reassembly > Carriage unit.
[2] Ink tube unit
Refer to DISASSEMBLY/REASSEMBLY > Points to Notes on Disassembly and Reassembly > Ink tube unit.
[3] Ink tank unit
Refer to DISASSEMBLY/REASSEMBLY > Points to Notes on Disassembly and Reassembly >Ink tank unit.
4.3.4 External covers
0014-8958

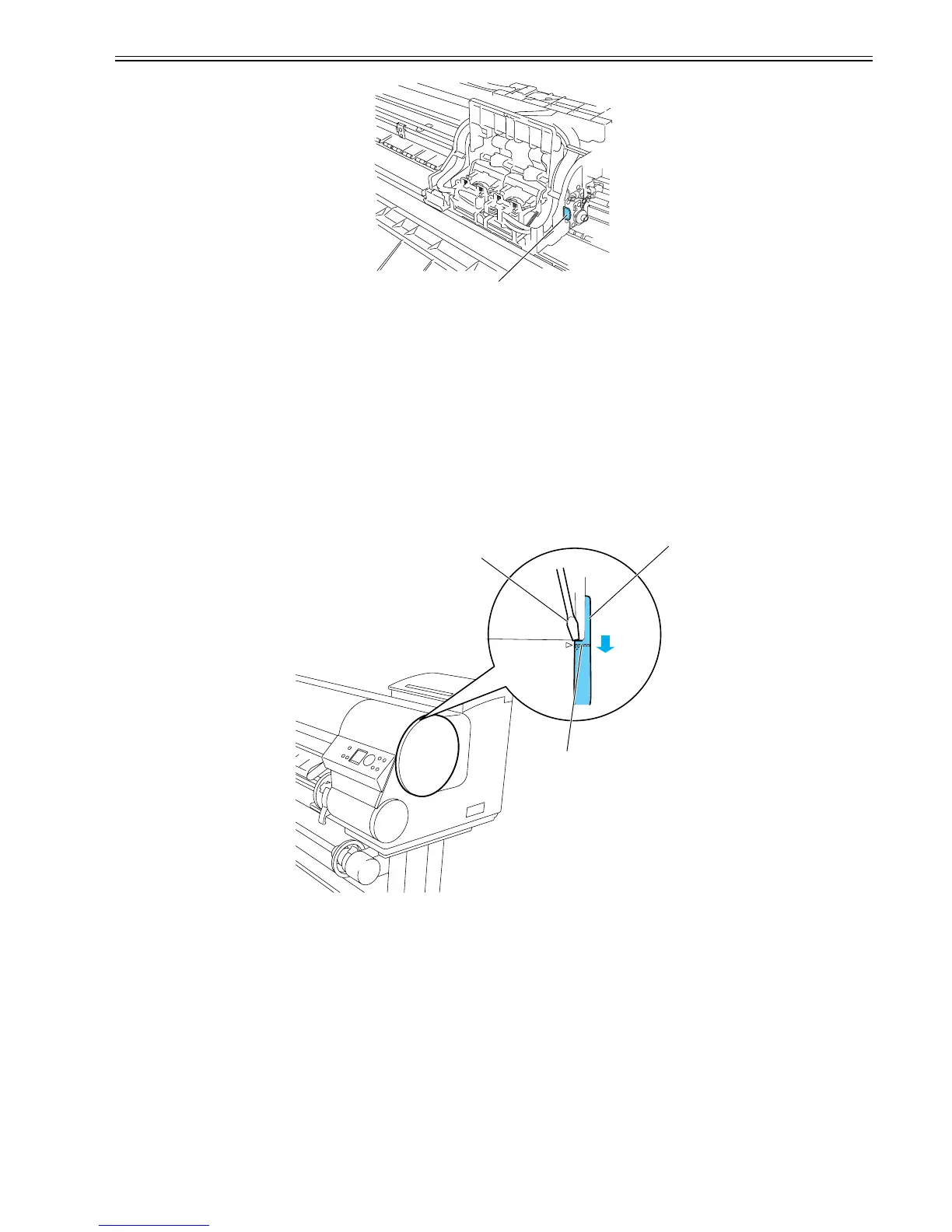

a) Left circle cover (L)/Right circle cover (L)
Removing left circle cover (L)/right circle cover (L)
1) To remove circle cover (L) [1], insert flathead screwdriver [2] at the position indicated to remove claw [3] and turn the cover forward to remove.
F-4-8
Installing left circle cover (L)/right circle cover (L)
1) Install circle cover (L) [1] with its part [2] inserted in arrow mark [3] of the right side cover and turn the cover backward to install.
[1]
[2]
[1]
[3]
To Next Page
