Canon 1692B002 - Linear Encoder

Chapter 4
4-21

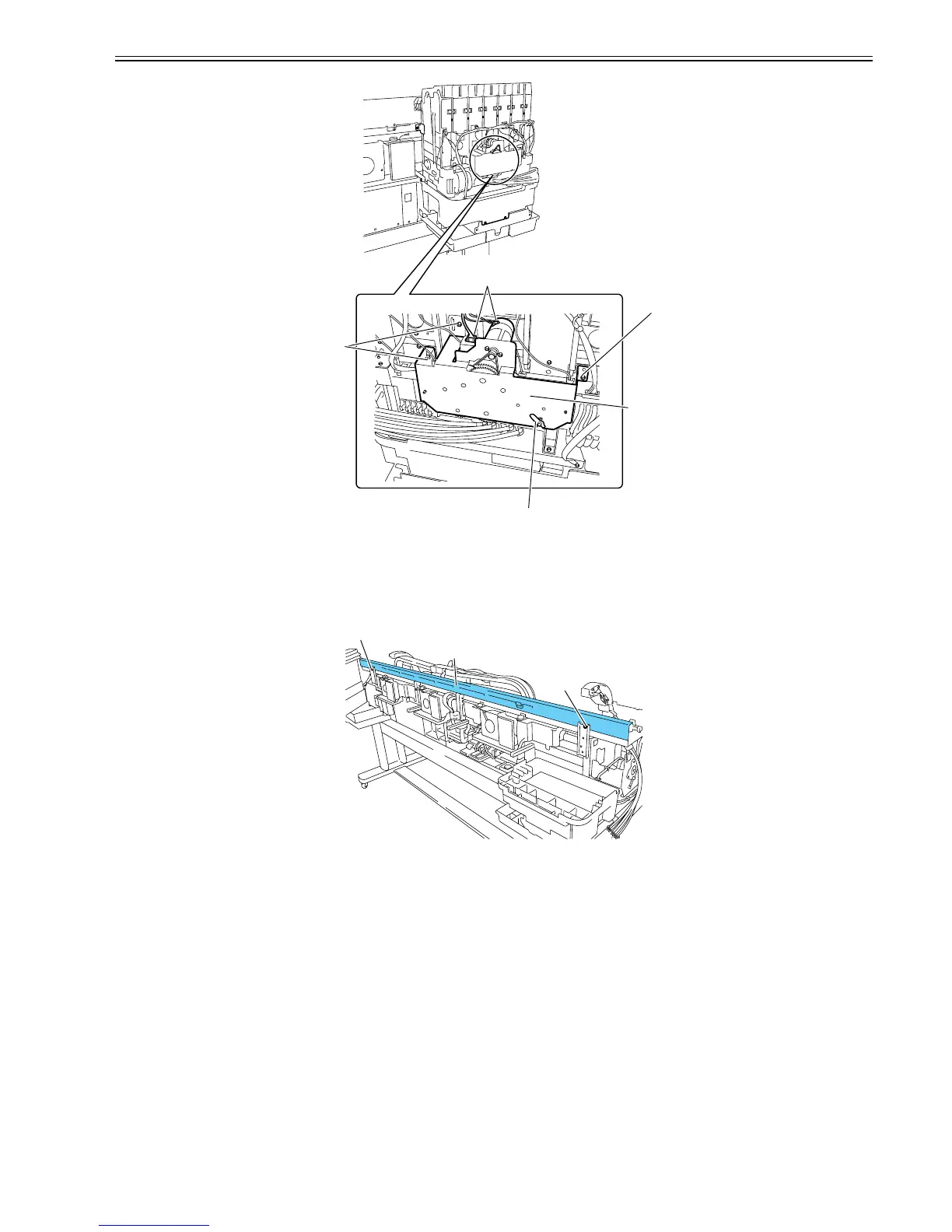

F-4-45
4.3.11 Linear encoder
0014-8985
a) Removing the linear encoder
1) Move the carriage to above the platen.
2) Remove two screws [1] and upper rear stay [2].
F-4-46
3) Remove two screws [1] and linear encoder [2].
[1]
[1]
[3]
[2]
[4]
[1]
[1]
[2]
