1.5.2 Rear
0014-8838
F-1-10
T-1-4
1.5.3 Carriage
0012-6263
F-1-11
T-1-5

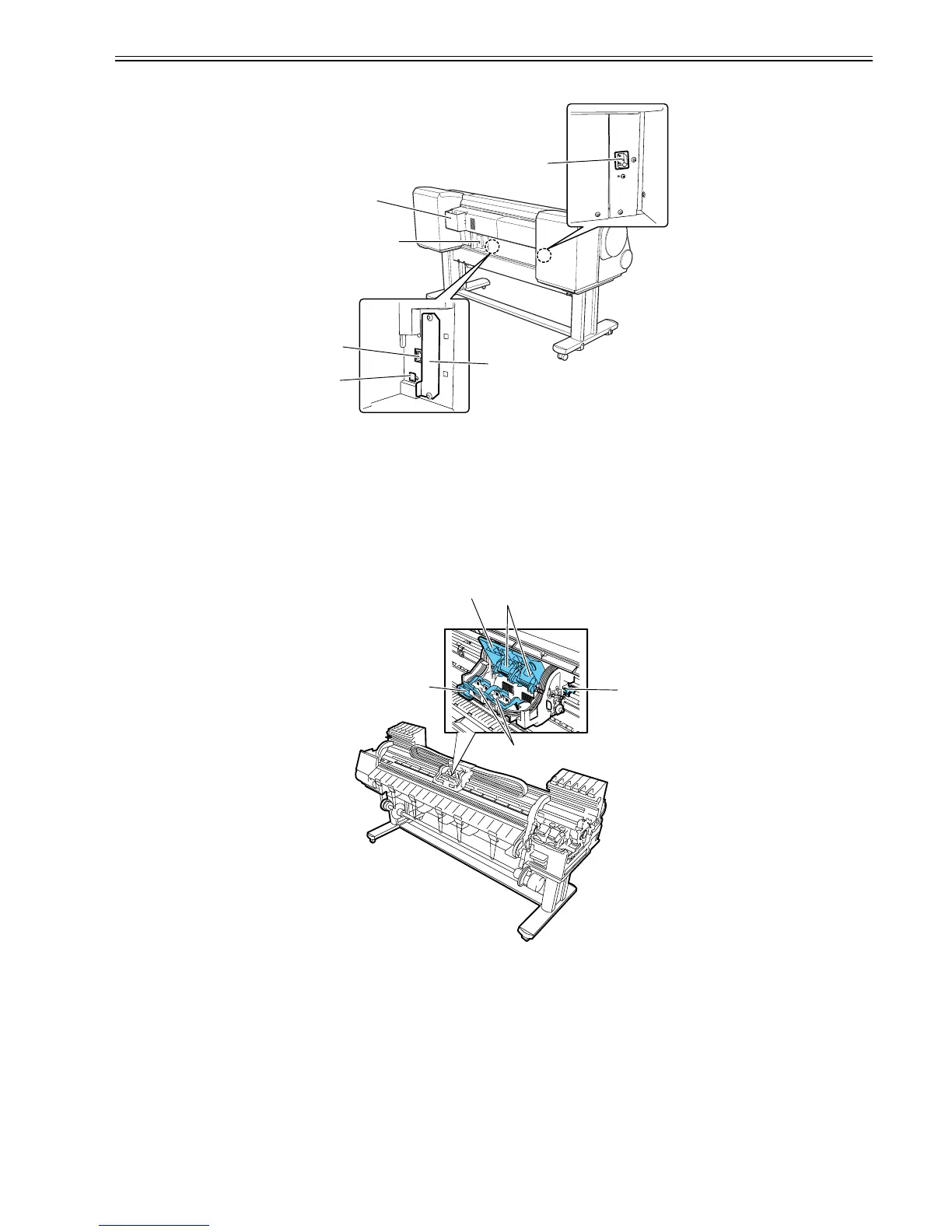

[1] Media take-up unit power cord connector Connect the power cord of the media take-up unit to this connector.
[2] Expansion board slot Mount an expansion PCB on this slot.
[3] Ethernet connector Connect the Ethernet cable to this connector.
[4] USB port Connect the USB cable to this port.
[5] Accessory pocket Holds printer manuals, assembly tools, and other items.
[6] Power cord connector Connect the power cord to this connector.
[1] Carriage cover Protects the carriage unit.
[2] Printhead fixer cover Clamps the printhead.
[3] Printhead fixer lever Locks the printhead lock cover.
[4] Cutter unit Round-blade cutter used to cut paper automatically.
[5] Shaft cleaner Keeps the carriage shaft clean.
[1]
[2]
[3]
[4]
[5]
[6]
[2]
[3]
[4]
[5]
[1]
