2.3.2.4 Printhead
2.3.2.4.1 Structure of Printhead
0013-8015
Each printhead is an integrated assembly of six trains of nozzles. Capable of controlling each nozzle individually, each printhead implements discharge control for
six colors by itself.
a) Nozzle arrangement
The nozzle assembly is formed of 1,280 nozzles arranged at 600-dpi intervals in a zigzag pattern, offering a total of 2,560 nozzles 1,200-dpi intervals.

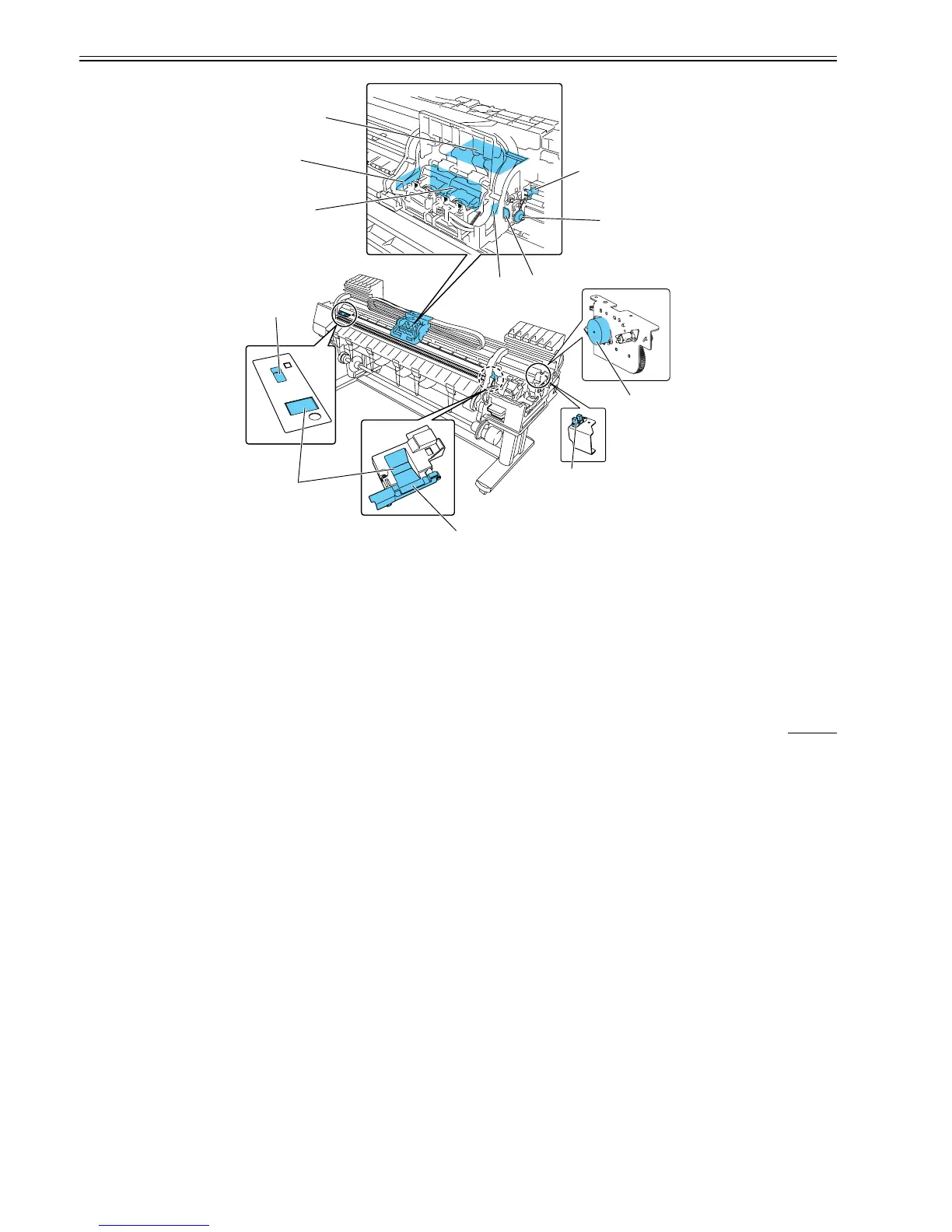

[1] Carriage relay PCB [7] Shaft cleaner
[2] Multi sensor [8] Maintenance jet tray
[3] Head relay PCB [9] Carriage HP sensor
[4] Lift cam sensor [10] Multisensor reference
[5] Sensor flag [11] Head management sensor unit
[6] Lift cam [12] Lift motor
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
