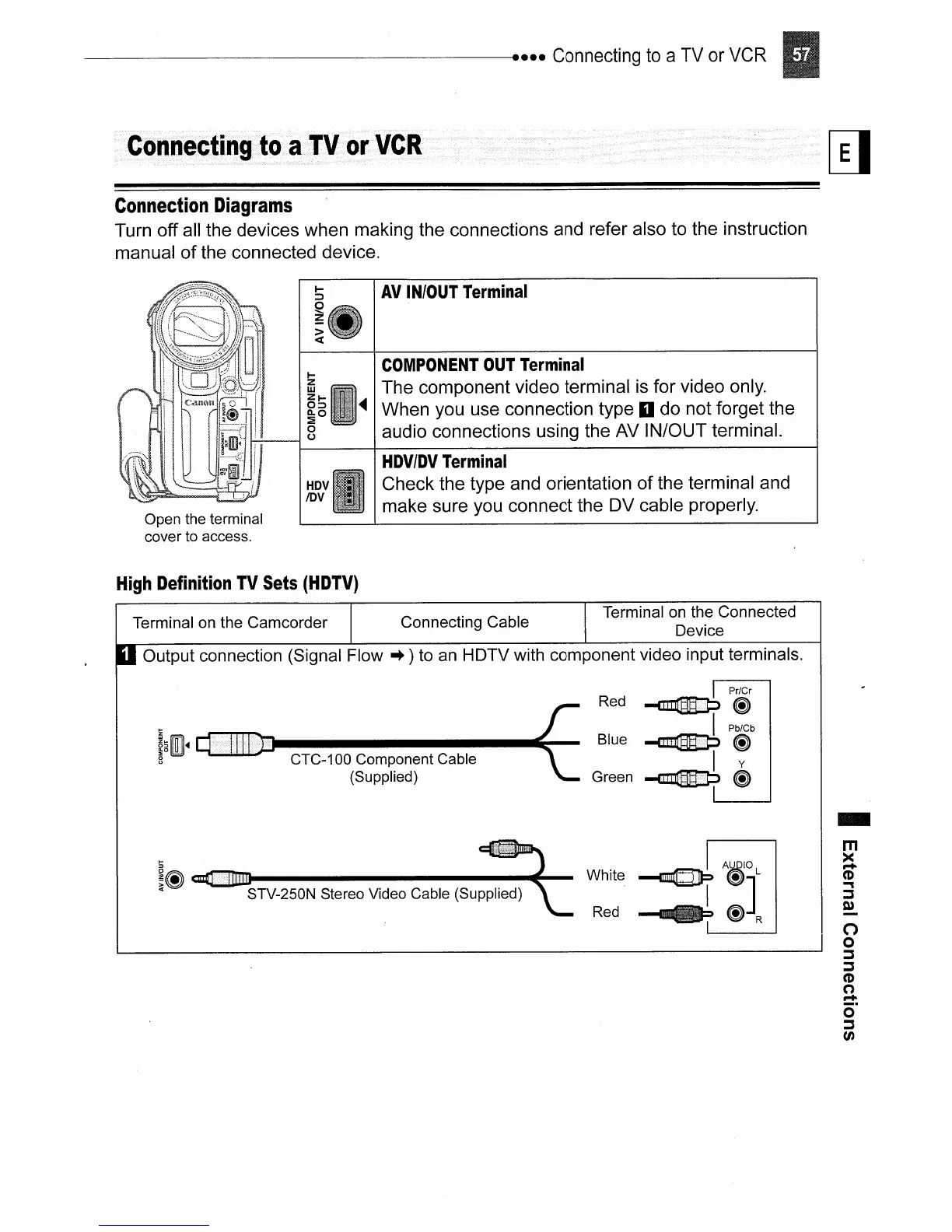

Connection Diagrams
Turn off all the devices when making the connections and refer also to the instruction
manual
of the connected device.
Open the terminal
cover to access.
AV IN/OUT Terminal
COMPONENT OUT Terminal
The component video terminal is for video only.
When you use connection type
0 do not forget the
audio connections using the
AV IN/OUT terminal.
HDV/DV Terminal
Check the type and orientation of the terminal and
make sure you connect the DV cable properly.
High Definition TV Sets (HDTV)
Terminal on the Camcorder Connecting Cable
Terminal on the Connected
Device
Output connection (Signal Flow" ) to an HDTV with component video input terminals.
Red
Igm~ ~---1IJIJ.JtI-C·TC·_·1·0o·c·o·m·p·o·n·en·t·c·a·bl·e --IIIIIfi;~
(Supplied)
Pr/Cr
Red ~~
I Pb/Cb
Blue ~ ~
I y
Green ~ ~
White ~A~OL
.1 <!)J
R
-
m
><
....
(I)
..,
~
e!-
O
o
~
~
(I)
(")
....
(5"
~
en

Canon HV10 Specifications

General

Filter size	37 mm
Digital zoom	200 x
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	6.1 - 61 mm
Sensor type	CMOS
Total megapixels	2.96 MP
Optical sensor size	1/2.7 \
Viewfinder resolution	123000 pixels
Viewfinder screen size	0.27 \
Display diagonal	2.7 \
Display resolution	210000 pixels
Media types supported	MiniDV
Camcorder tape type	Mini-DV
Camera shutter speed	1/2000 s
Product color	Black, Silver
Battery type	BP-310

Weight and Dimensions

Depth	104 mm
Width	56 mm
Height	106 mm
Weight	440 g
