2.5 LED
There are two LEDs, LED1 and LED2 These can be turned on and off individually.
The functions of each are as follows:
(1) LED1 (recharge LED)
This is for recharge status, notifying that power is being supplied for charging (it cannot be lit by user
instructions).
(2) LED2 (general-purpose LED)
i This LED lights or flashes for scan complete, alarm occurrence, warning occurrence, wireless
incoming call, and user-specified purpose.
It is used for user notifications, for completion of scanning by the scanner, for wireless
connection status (Bluetooth, SS wireless, W-WAN, GPS, etc.), and for user-specified purposes.
ii LED lighting can be suppressed from the system library.
For details, refer to the System Library Manual.
Color Purpose
Orange Recharging
Green Recharging complete
Red Recharge error
LED１
(Recharge)
Blinking red Recharge error
Red User notification (alarm), scanning error
Green Scanning successful
Blue Connection established via Bluetooth
Orange SS wireless connected, W-WAN connected, GPS connected
Magenta In USB connection (ActiveSync, FLCE, WMDC, LMWIN, etc.)
LED2
(General
purpose)
Cyan Resuming
All colors can be used by user specification.

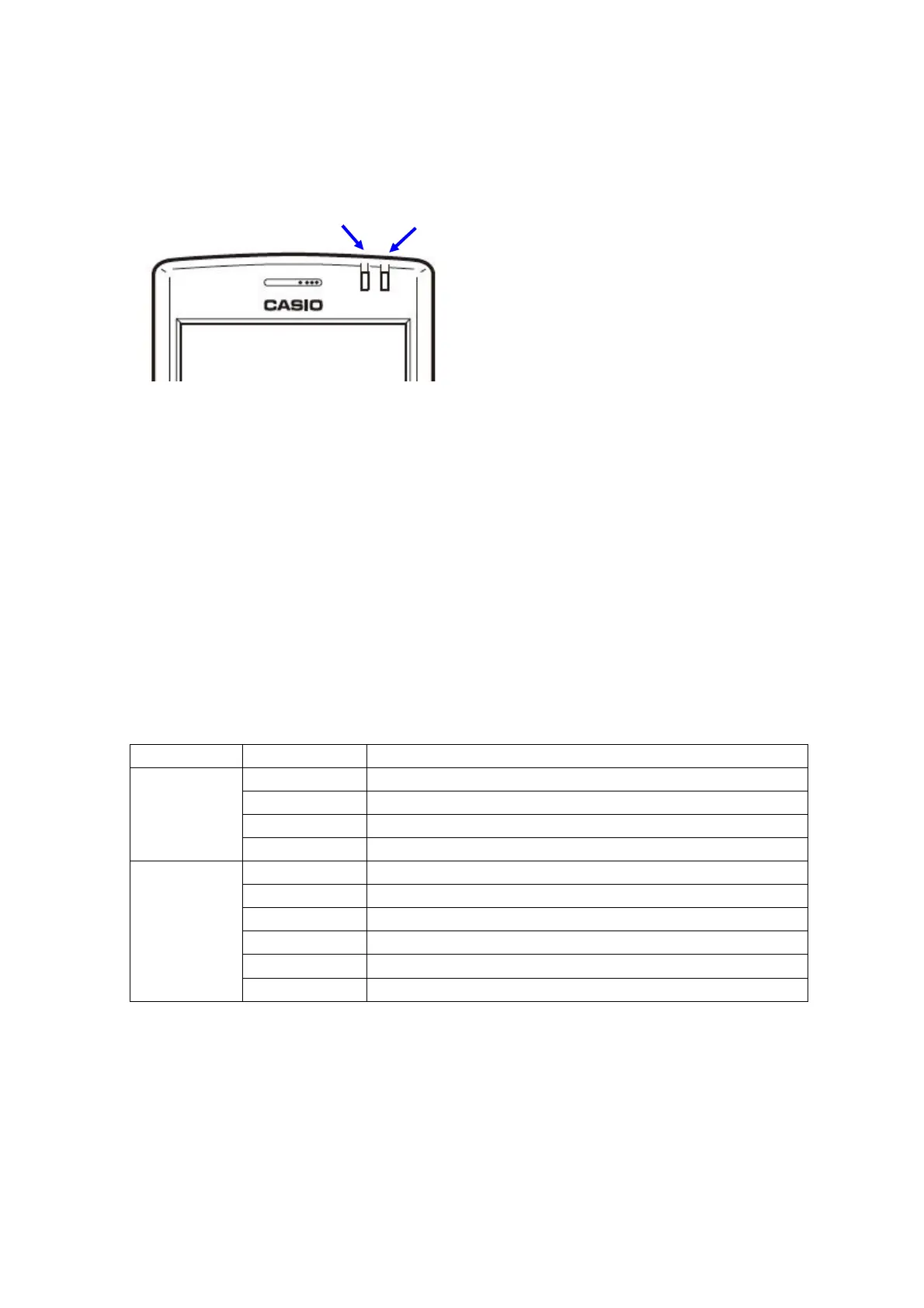

LED1
LED2
