142

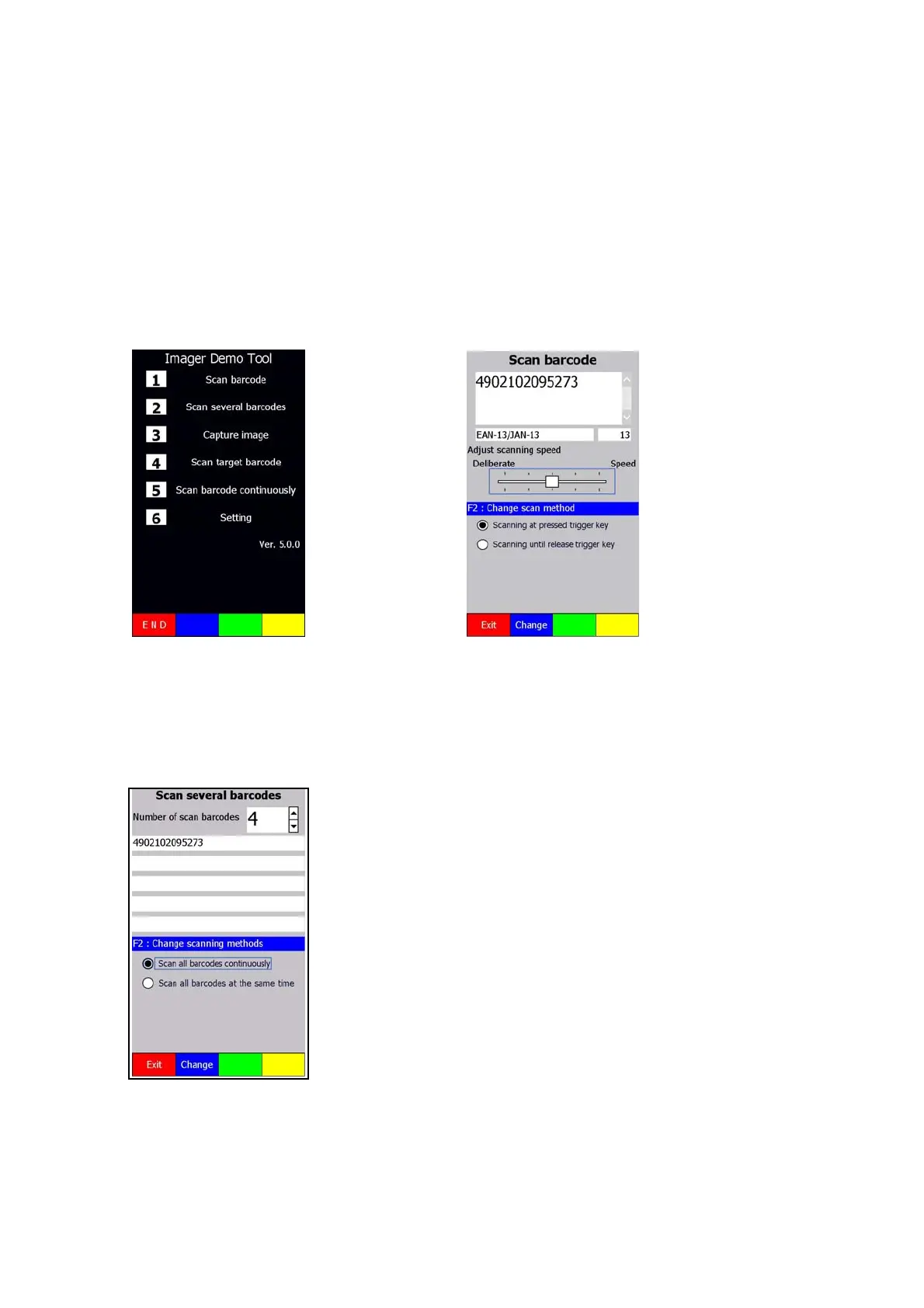

3.6.3 Image Scanner Demo
This application demonstrates the performances of reading 1D and 2D symbologies with the
integrated CMOS Imager (model dependant). The application consists of four menus;
- Single Decode
- Multi Decode
- Image Capture
- Sign Capture
Select Start -> Image Scanner Demo.
Scan Barcode
This mode reads a single bar code symbol every time one of the Trigger keys is pressed and then
displays scanned bar code, symbology name and the no. of digits. To exit this mode, tap Quit
button.
Scan Multiple Barcodes
This mode reads specified number of bar code symbols at a time and then displays each scanned
bar code in the respective boxes in the following figure. The number of symbols to continuously
scan can be specified is either 2, 3 or 4.
To Next Page
