Cisco ASR-920-24SZ-IM, ASR-920-24SZ-M, ASR-920-24TZ-M Aggregation Services Router Hardware Installation Guide
Chapter 1 Overview
Cisco ASR 920 Series Routers Features
Front and Back Panel
The following figures show the port numbering for the Cisco ASR-920-24SZ-IM Router:

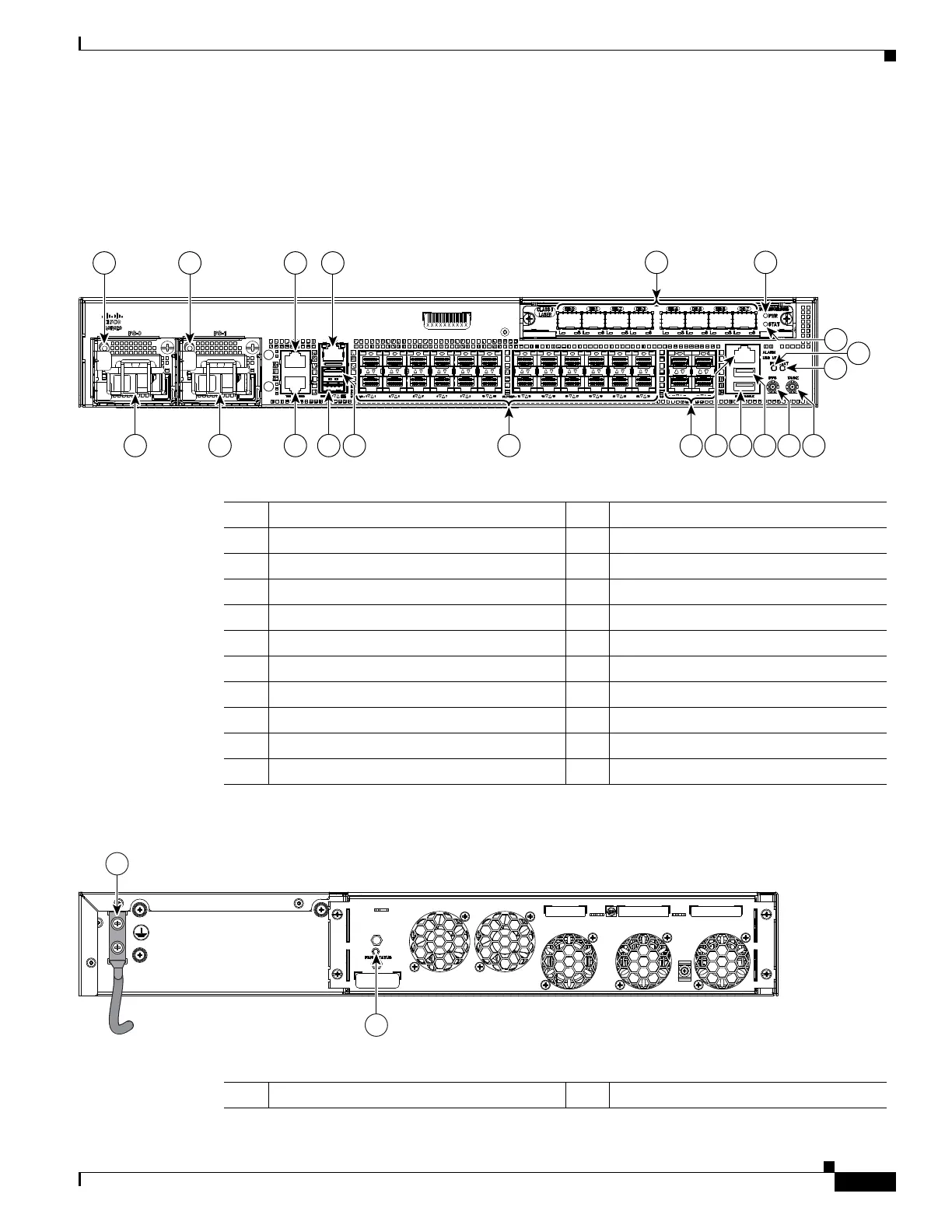

Figure 1-5 Front Panel of Cisco ASR-920-24SZ-IM Router
Figure 1-6 Back Panel of Cisco ASR-920-24SZ-IM Router
1
3578 10
11
14 15
16
17 18
19
20
21
6
2 49
391970
1312
1 Power Supply 0 (AC or DC) 12 4x10GE SFP+
2 Power Supply 0 LED (AC or DC) 13 Alarm port
3 Power Supply 1 (AC or DC) 14 USB Console port
4 Power Supply 1 LED (AC or DC) 15 USB Memory port
5 RJ-48 slot for ToD 16 Interface Module (IM) power LED
6 RJ-48 slot for BITS 17 1 PPS co-axial connector
7 Console port (TIA/EIA-232F) 18 10 MHz co-axial connector
8 Auxiliary Console port 19 IM Status LED
9 Management port 20 System Status LED
10 24x1GE SFP Fiber ports 21 Board power LED
11 Slot for ports on the interface module — —
2
1
391971
1 Grounding lugs 2 Fan status LED
