Cisco ASR-920-24TZ-M Installation Guide

3-40
Cisco ASR-920-24SZ-IM, ASR-920-24SZ-M, ASR-920-24TZ-M Aggregation Services Router Hardware Installation Guide
Chapter 3 Installing
Installing and Removing SFP Modules

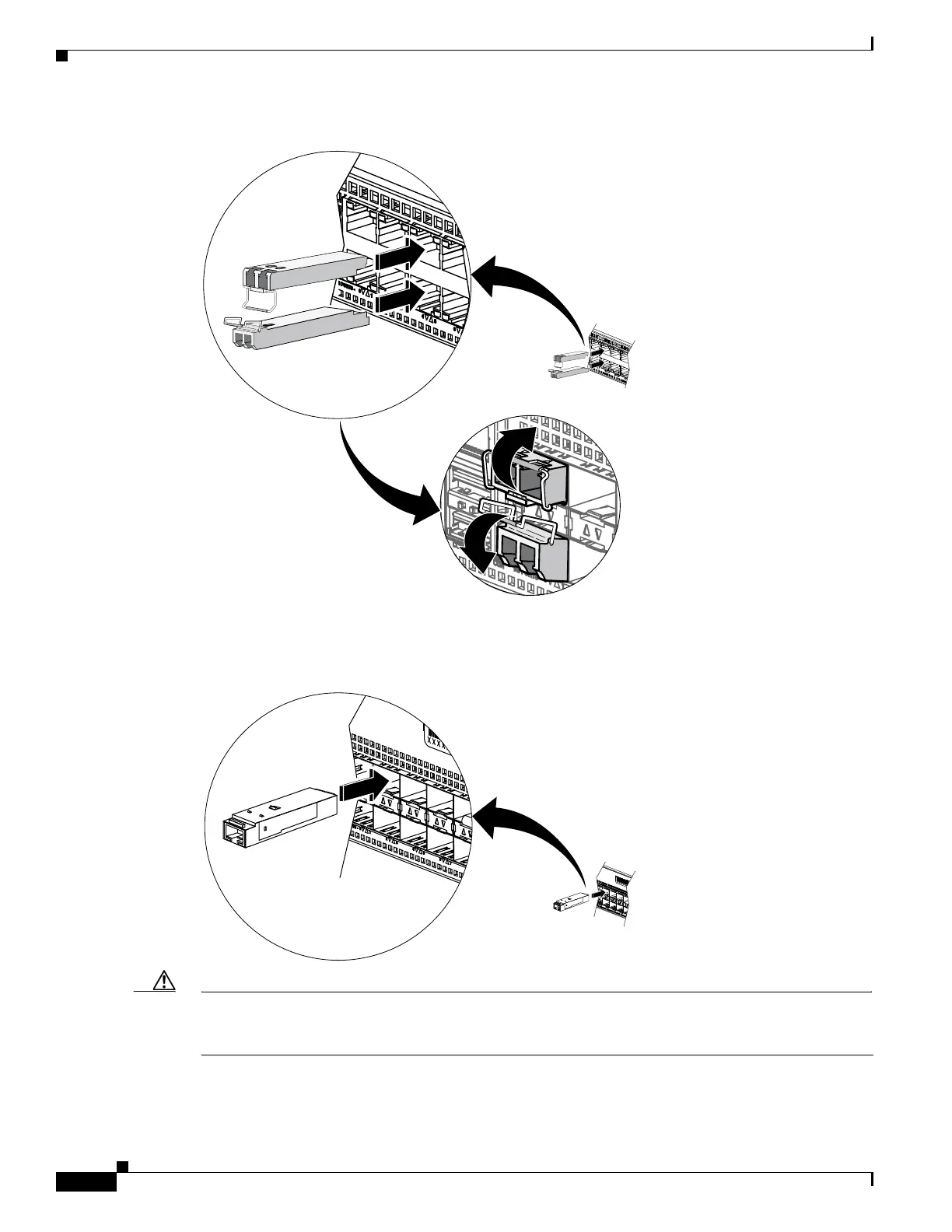

Figure 3-30 Installing an SFP Module without a Bale-Clasp Latch into an SFP Module Slot on Cisco
ASR 920-24SZ-IM, ASR-920-24SZ-M, ASR-920-24TZ-M Router
Caution Do not remove the dust plugs from the fiber-optic SFP module port or the rubber caps from the
fiber-optic cable until you are ready to connect the cable. The plugs and caps protect the SFP module
ports and cables from contamination and ambient light. Store the dust plugs for later use.
Step 5 Insert the cable connector into the SFP module:
• For fiber-optic SFP modules, insert the LC cable into the SFP module.
391987
392061
