Binary outputs
Use min. 1 mm
2
cables for wiring of binary outputs. Use external relays as indicated on the schematic
below for all outputs except those where low-current loads are connected (signalization etc..).
NOTE:
The function of each output has to be assigned during the configuration.
CAUTION!
Use suppression diodes on all relays and other inductive loads!

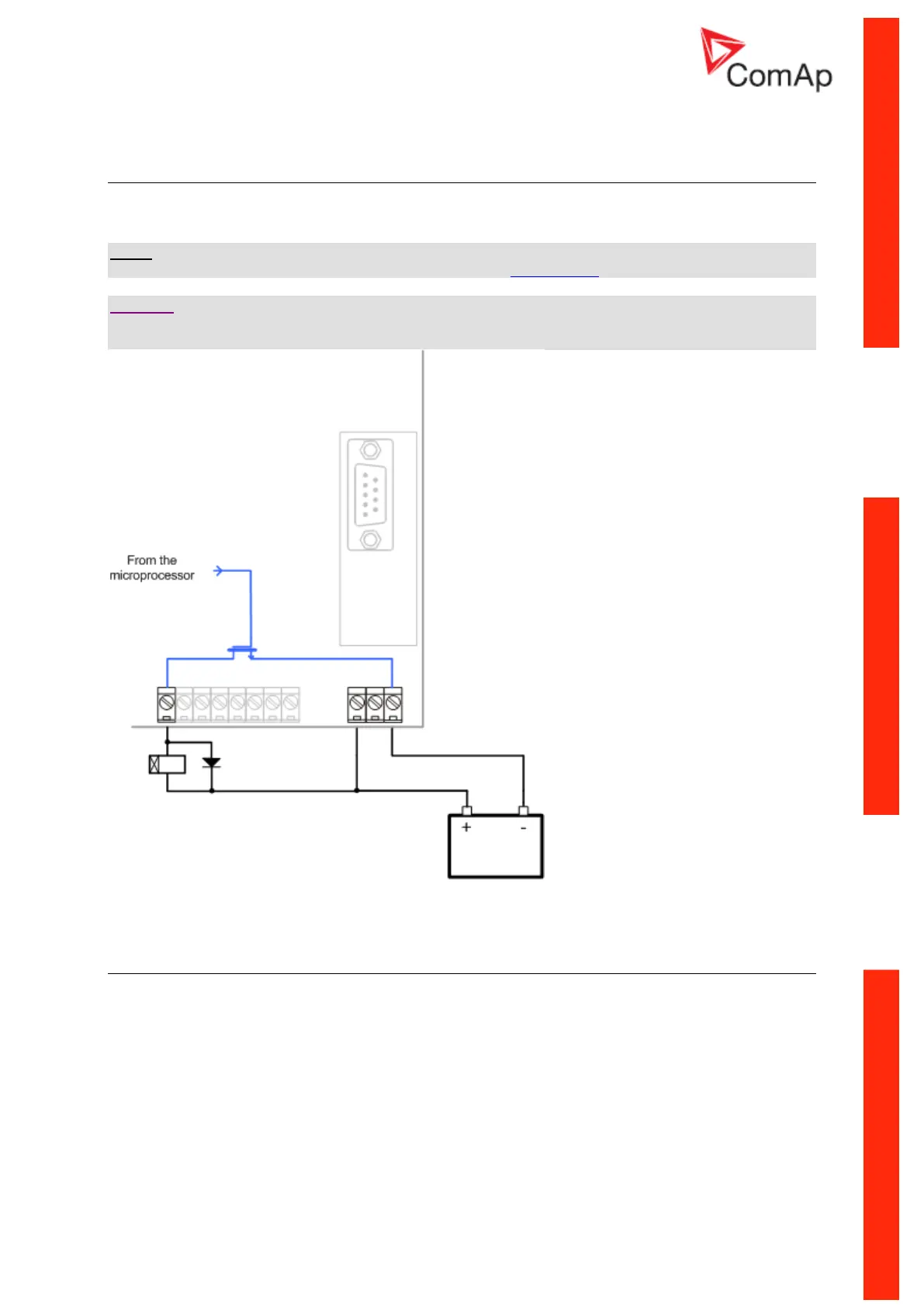

WIRING OF BINARY OUTPUTS
Analog inputs
The analog inputs are designed for resistive automotive type sensors like VDO or DATCON. The
sensors are connected either by one wire (the second pole is sensor body) or by two wires.
In case of grounded sensors connect the AI COM terminal to the engine body as near from
the sensors as possible.
In case of isolated sensors connect the AI COM terminal to the negative power supply
terminal of the controller as well as the opposite poles of the sensors.
