DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
144
Basic LLDP Port Settings
To view this window, click Configuration > LLDP > Basic LLDP Port Settings

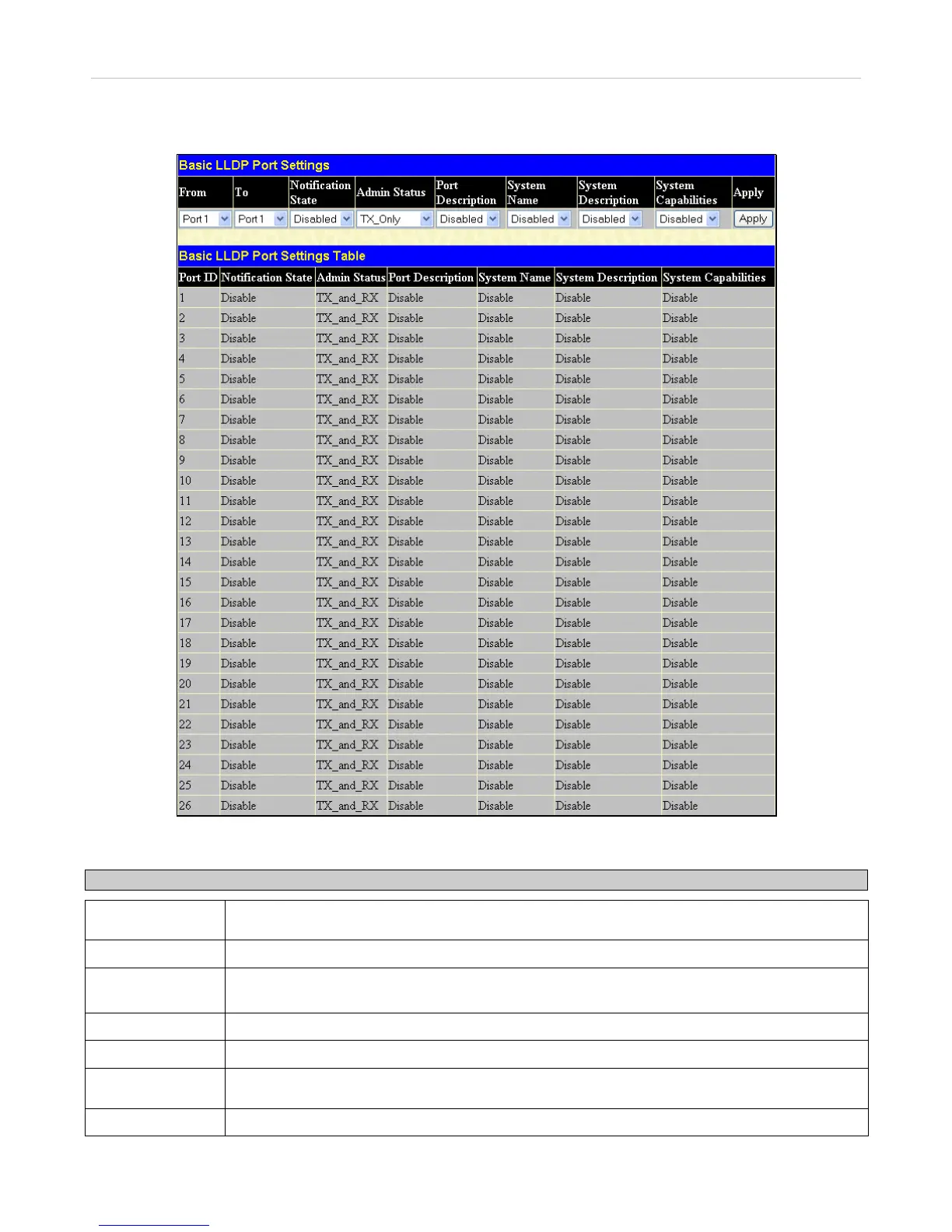

Figure 6- 127. Basic LLDP Port Settings window
The following parameters can be set:
Parameter Description
From Port/To
Port
Use the pull-down menu to select a range of ports to be configured.
Notification State
Use the pull-down menu to Enable or Disable the status of the LLDP notification.
Admin State
Select the status of the notification, use the drop-down menu to choose between TX, RX, TX And
RX or Disabled.
Port Description
Use the pull-down menu to Enable or Disable the status of the LLDP Port Description.
System Name
Use the pull-down menu to Enable or Disable the status of the LLDP System Name.
System
Description
Use the pull-down menu to Enable or Disable the status of the LLDP System Description.
System
Use the pull-down menu to Enable or Disable the status of the LLDP System Capabilities.

D-Link DES-3526 - Switch - Stackable Specifications

General

Device Type	Switch
Manufacturer	D-Link
Model	DES-3526
Enclosure Type	Rack-mountable
Stacking	Yes
Stack Ports	2
MAC Address Table Size	8K entries
Power Over Ethernet (PoE)	No
VLAN Support	Yes
Quality of Service (QoS)	Yes
SNMP Support	Yes
Product Type	Stackable
Routing Protocol	Static Routing
Remote Management Protocol	HTTP
Features	VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Jumbo Frame Support	Yes
Power Supply	Internal
Dimensions (W x D x H)	440 x 210 x 44 mm
Management	Web-based management
Ports	24 x 10/100 + 2 x Gigabit SFP
