xStack
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
239
Click Apply to implement the settings changed.
After enabling the Switch to be a Commander Switch (CS), the Single IP Management folder will then contain four added links
to aid the user in configuring SIM through the web, including Topology, Firmware Upgrade, Configuration Backup/Restore
and Upload Log File.
Topology
The Topology window will be used to configure and manage the Switch within the SIM group and requires Java script to function
properly on your computer. The following message should appear the first time the user clicks the Topology link in the Single IP
Management folder.

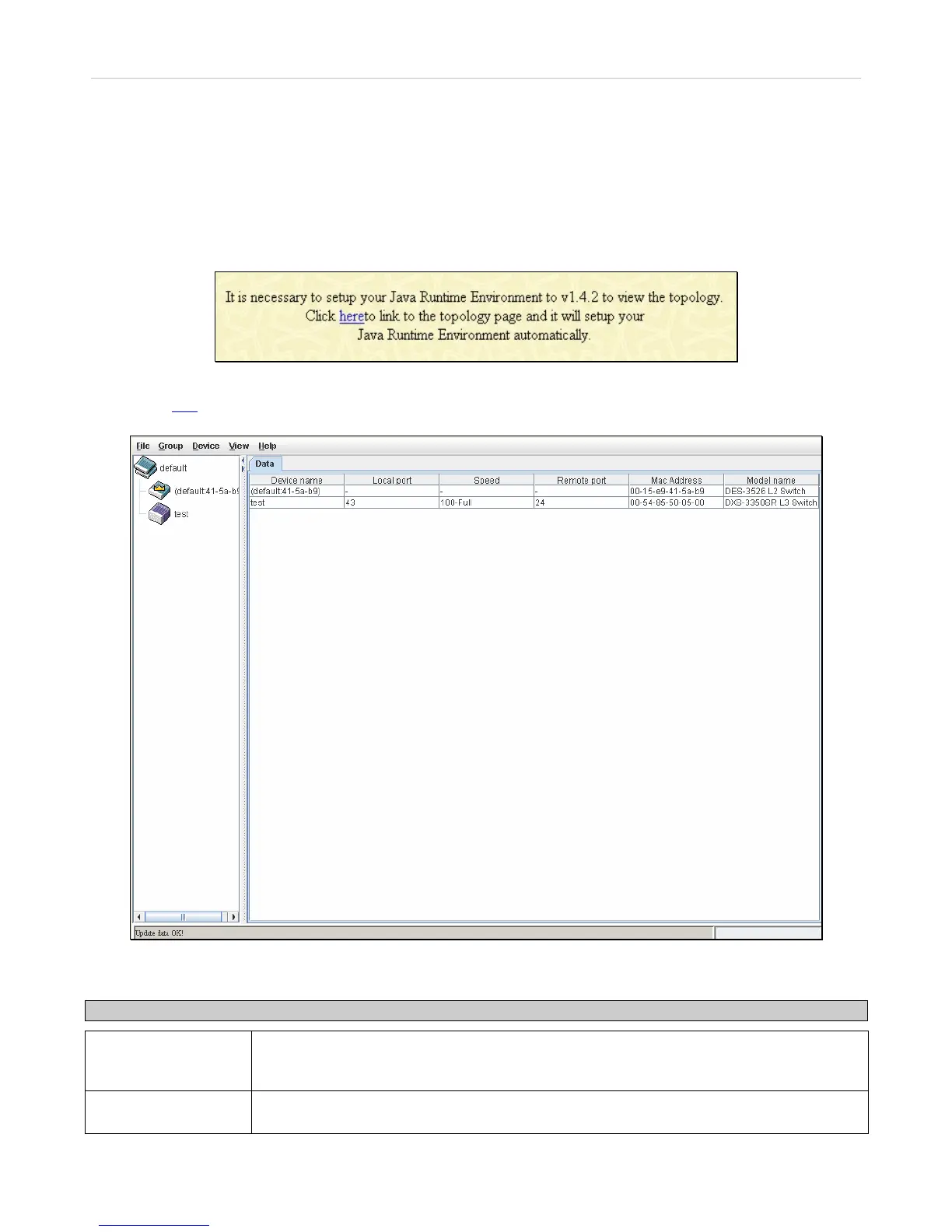

Figure 10- 3. Java window
Clicking the here
link will setup the Java Runtime Environment on your server and lead you to the topology window, as seen
below.
Figure 10- 4. Single IP Management window-Tree View
The Tree View window holds the following information under the Data tab:
Parameter Description
Device Name
This field will display the Device Name of the switches in the SIM group configured by the
user. If no Device Name is configured by the name, it will be given the name default and
tagged with the last six digits of the MAC Address to identify it.
Local Port
Displays the number of the physical port on the CS that the MS or CaS is connected to. The
CS will have no entry in this field. The CS will not display an entry in this field.
