Upload Log
To upload the switch history log file to a TFTP server, click Maintenance > TFTP Services > Upload Log:

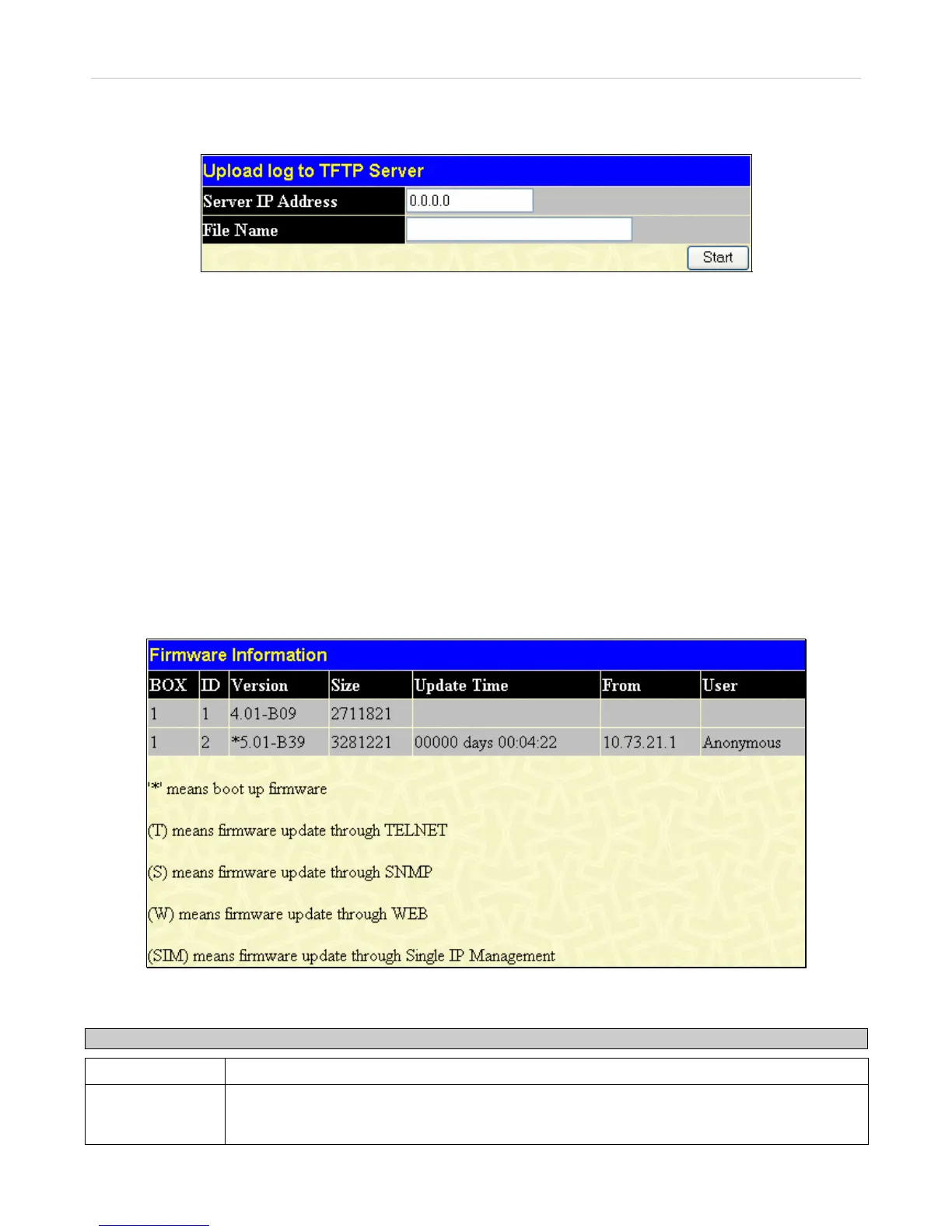

Figure 9- 4. Upload Log to TFTP Server window
Enter the IP address of the TFTP server and the path and filename for the history log on the TFTP server.
Click Start to record the IP address of the TFTP server and to initiate the file transfer.
Multiple Image Services
The Multiple Image Services folder allows users of the xStack
®
family of switches to configure and view information regarding
firmware located on the Switch. The Switch allows two firmware images to be stored in its memory and either can be configured
to be the boot up firmware for the Switch. For information regarding firmware images located on the Switch, open the Firmware
Information link. The default setting for the Switch’s firmware will have the boot up firmware stored in Image 1, but the user
may set either firmware stored to be the boot up firmware by using the Config Firmware Image window.
Firmware Information
The following screen allows the user to view information about current firmware images stored on the Switch. To access the
following screen, click Maintenance > Multiple Image Services > Firmware Information.
Figure 9- 5. Firmware Information window
This window holds the following information:
Parameter Description
BOX
States the stacking ID number of the switch in the switch stack.
ID
States the image ID number of the firmware in the Switch’s memory. The Switch can store 2
firmware images for use. Image ID 1 will be the default boot up firmware for the Switch unless
otherwise configured by the user.
