DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

152

LLDP Remote Port Information

To view this window, click Configuration > LLDP > LLDP Remote Port Table

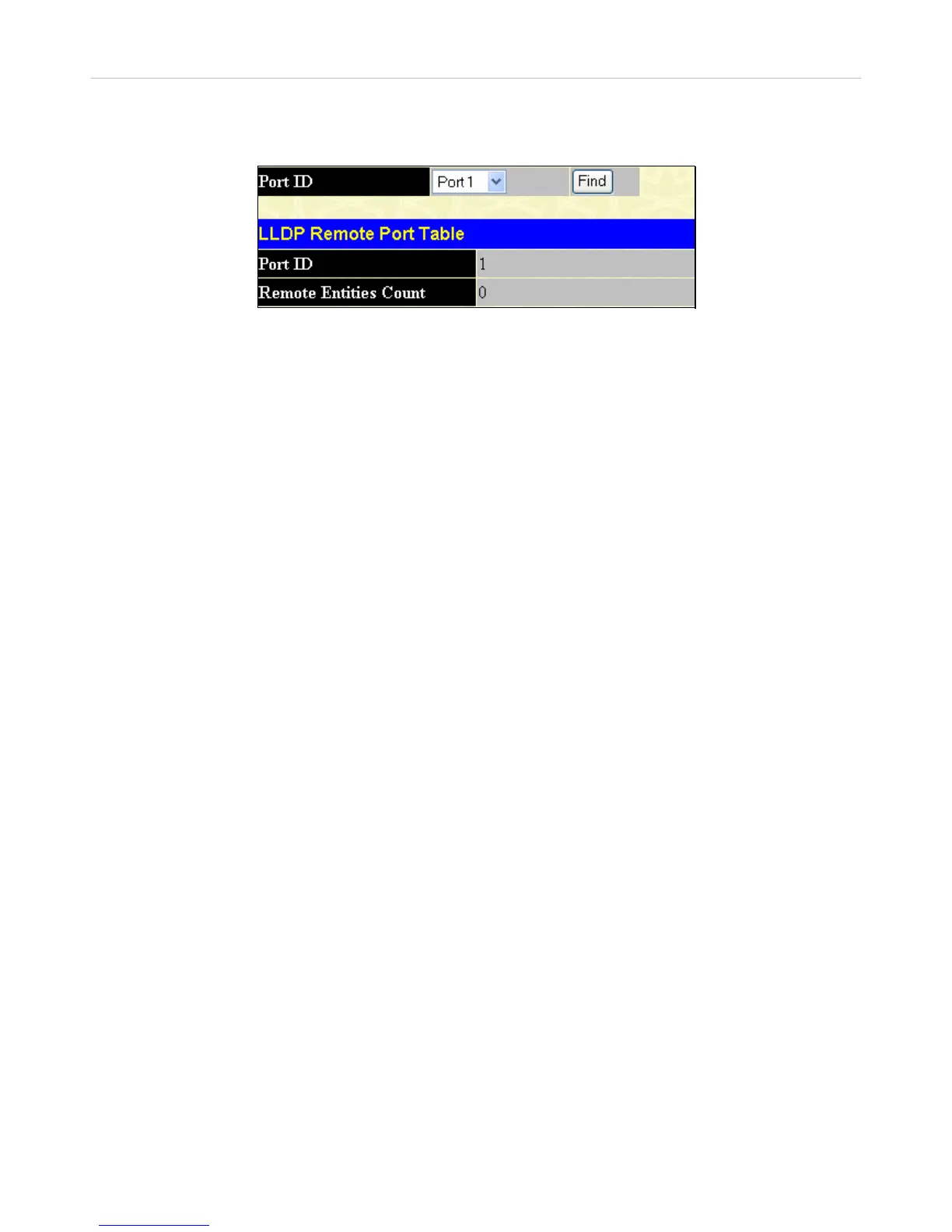

Figure 6- 136. LLDP Remote Port Information window

Select the port you wish to view by using the drop-down menu and click Find the information will be displayed in the lower half

of the table.

User Manual1
