xStack
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
47
The following parameters can be set:
Parameter Description
VID
The VLAN ID of the multicast VLAN to be created. The user may choose a number between
1-4094 to identify this VLAN. Up to 3 multicast VLANs can be configured.
VLAN Name
The name of the multicast VLAN to be configured. Each multicast VLAN is given a name that
can be up to 32 characters. Up to 3 multicast VLANs can be configured.
Replace Source IP
With
Enter a source IP address that you want to replace.
State
The user may enable or disable this VLAN using the pull down menu here.
Source Port
A port on the Switch to be designated as the source port for multicast traffic. Multicast traffic
entering the switch will be forwarded from this port to member ports on the same VLAN.
Note that the Source port must be different from the member ports of the created VLAN.
Member Port
A port or range of member ports to add to the multicast VLAN. These ports will receive
multicast traffic from the source port. Remember, the source port cannot be the same as any
member port.
Click Apply to create the multicast VLAN.

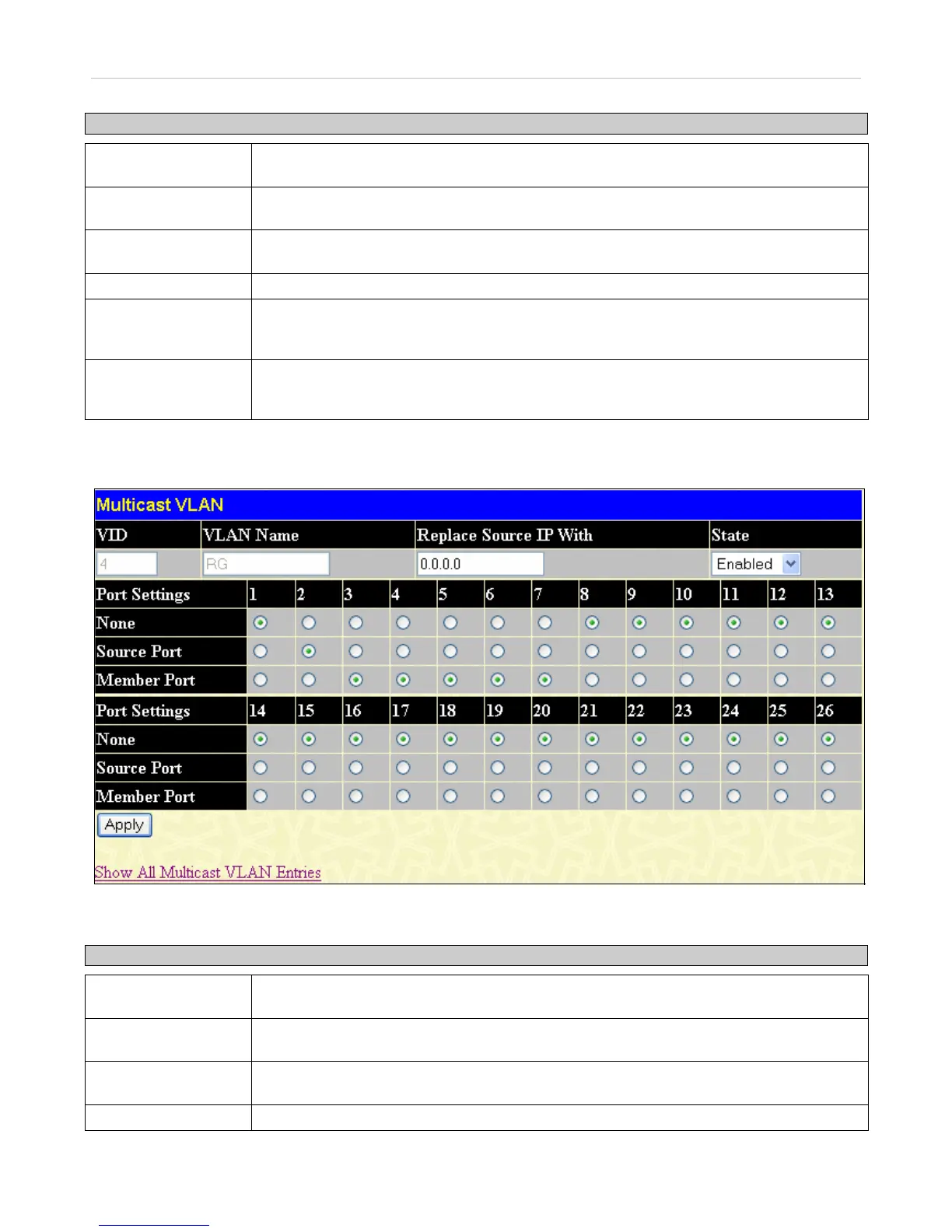

To modify a previously created multicast VLAN, click the Modify button in the Current Multicast VLANs Entries Table,
which will display the following window for the user to configure.
Figure 6- 22 Multicast VLAN window - Modify
The following parameters can be set:
Parameter Description
VID
Displays the VLAN ID of the configured multicast VLAN. Up to 3 multicast VLANs can be
configured.
VLAN Name
The name of the configured multicast VLAN. Each multicast VLAN is given a name that can
be up to 32 characters. Up to 3 multicast VLANs can be configured.
Replace Source IP
With
Enter a source IP address that you want to replace in this field.
State
The user may enable or disable this VLAN using the pull down menu here.
