80DSL-2750B User Guide
Advanced Conguration
Before following the steps below, please factory reset the DSL-2750B. After it has booted up, disable the
Wireless by depressing the button on the back of the unit. Complete the following steps to set up Bridge
mode on the DSL-2750B:
1. Open a web browser and enter http://192.168.1.1.
2. Log in with the default user name (admin) and password (refer to back label of 2750B).

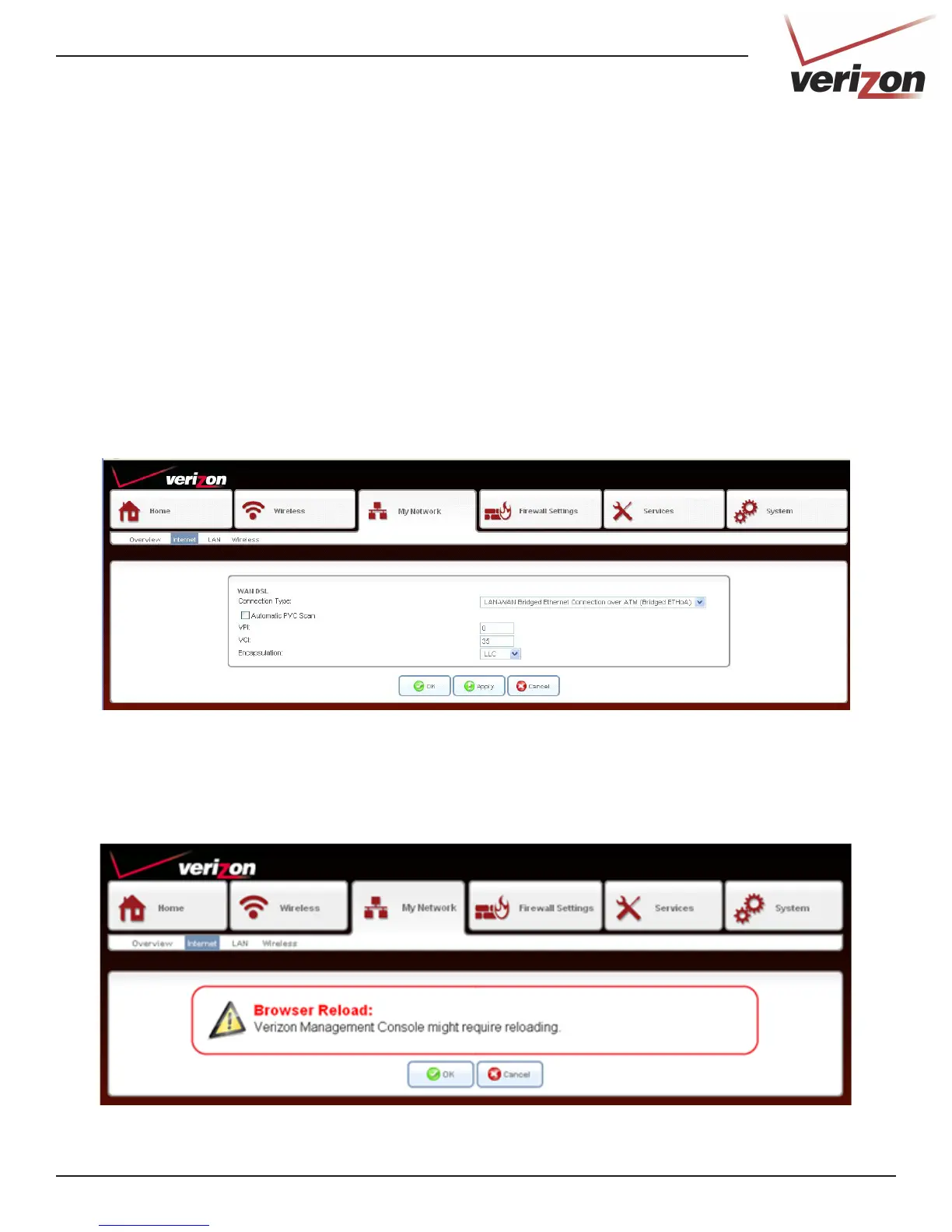

3. Select My Network > Internet.
4. From the drop-down menu next to Connection type, select LAN-WAN Bridged Ethernet Connection
over ATM (Bridged ETHoA).
Bridge Mode
5. Click Apply.
6. When the following message appears, click OK.
