Installing the infrared camera
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

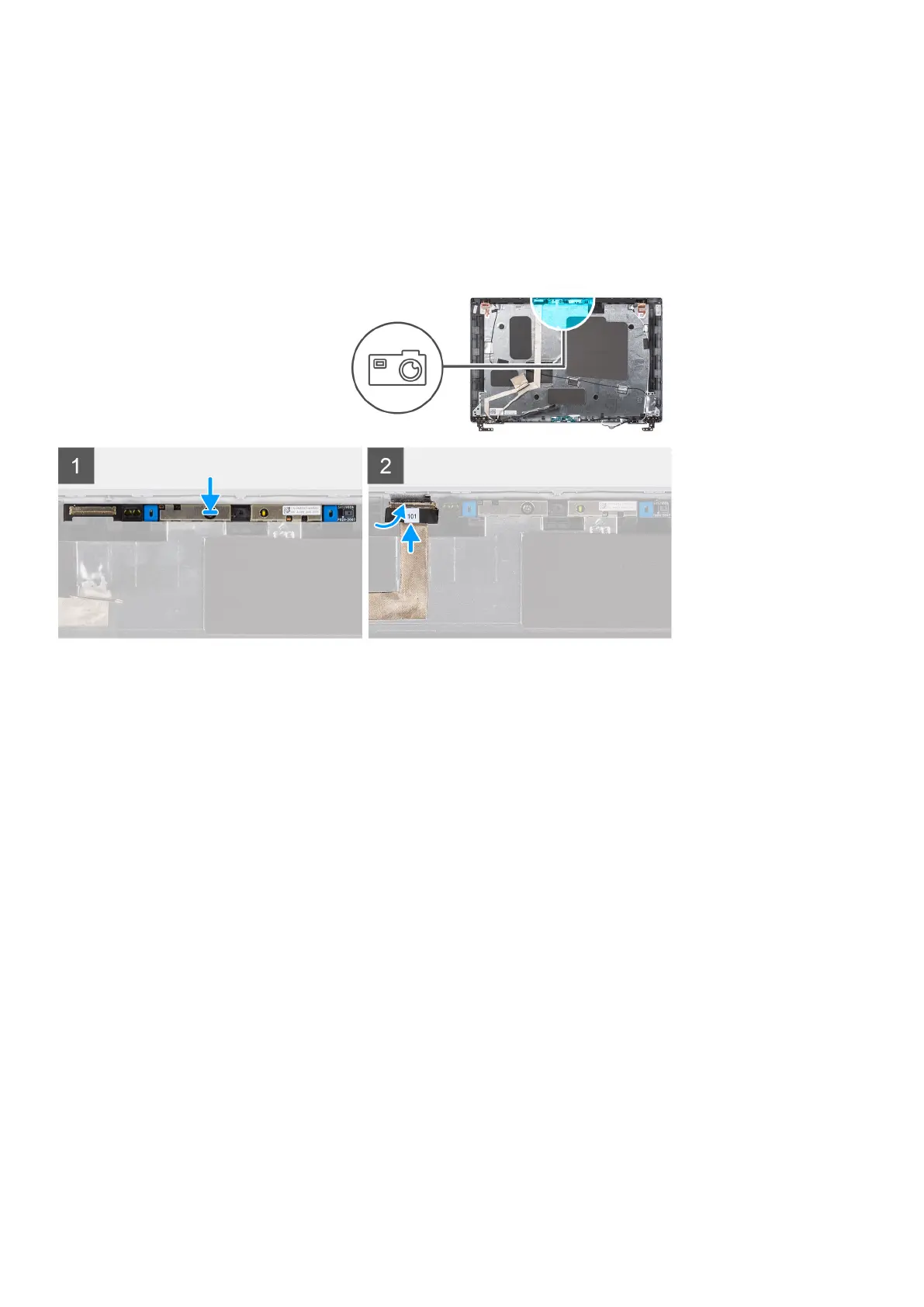

The following image indicates the location of the infrared camera and provides a visual representation of the installation
procedure.
Steps
1. Align and place the infrared camera module into the slot on the display back cover.
2. Connect the infrared camera cable to the connector on the camera module.
3. Adhere the tape to secure the infrared camera cable in place.
Next steps
1. Install the display hinge.
2. Install the display panel.
3. Install the display bezel.
4. Install the display assembly.
5. Install the WWAN card.
6. Install the Wireless card.
7. Install the base cover.
8. Install the microSD card.
9. Install the SIM card.
10. Follow the procedure in After working inside your computer.
eDP/display cable
Removing the eDP/display cable
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
108
Removing and installing components
