Dell P104F Service Manual

Steps

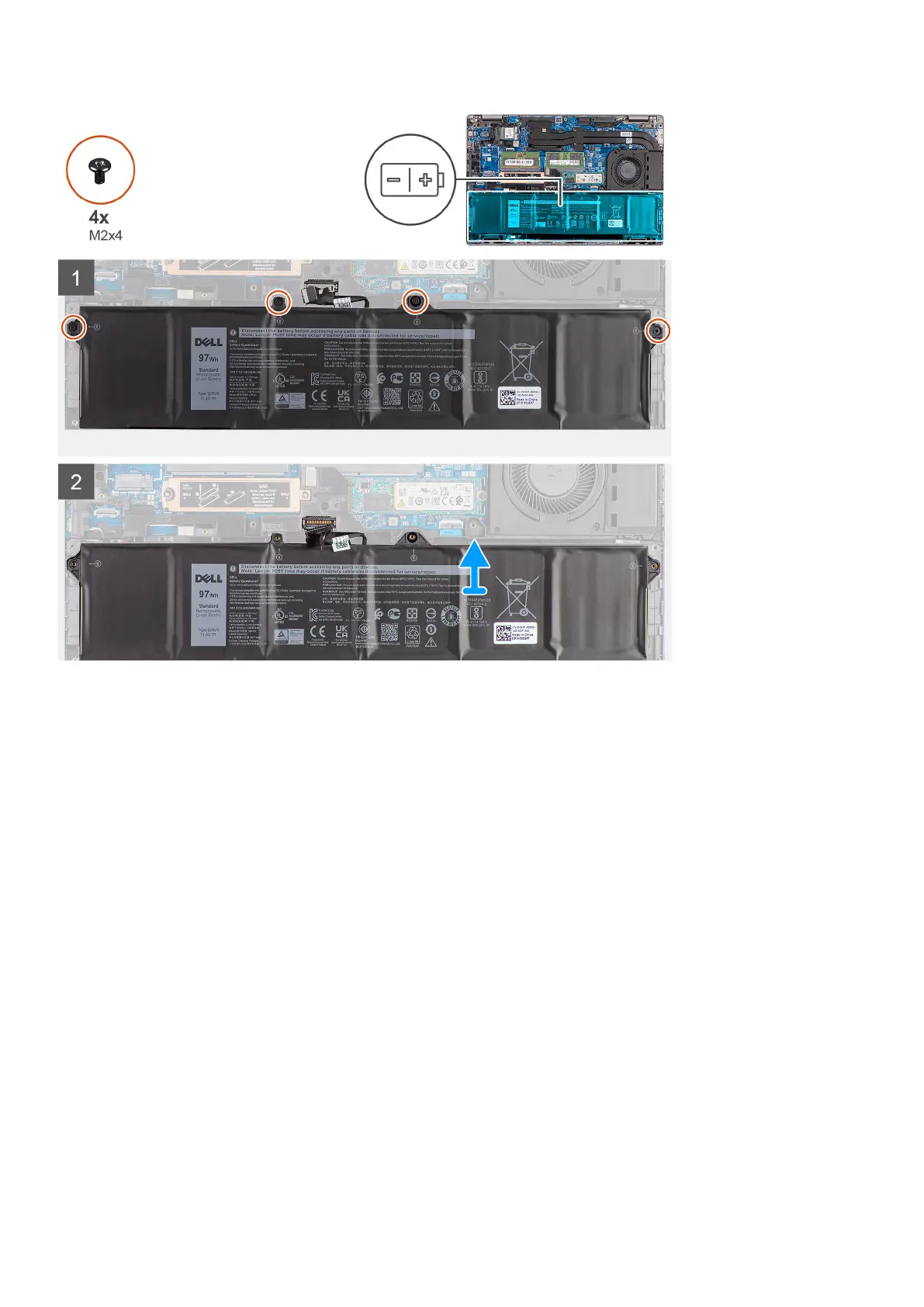

1. Align the screw holes on the 6-cell battery with the screw holes on the palm-rest and keyboard assembly.
2. Replace the four screws (M2x4) that secure the 6-cell battery to the palm-rest and keyboard assembly.
3. Connect the battery cable to the connector on the system board.
Next steps
1. Install the base cover.
2. Install the microSD card.
3. Install the SIM tray.
4. Follow the procedure in After working inside your computer.
Battery cable
Removing the 4-cell battery cable
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
5. Remove the battery.
50
Removing and installing components

Dell P104F Specifications

General

Brand	Dell
Model	P104F
Category	Laptop
Language	English
