Steps

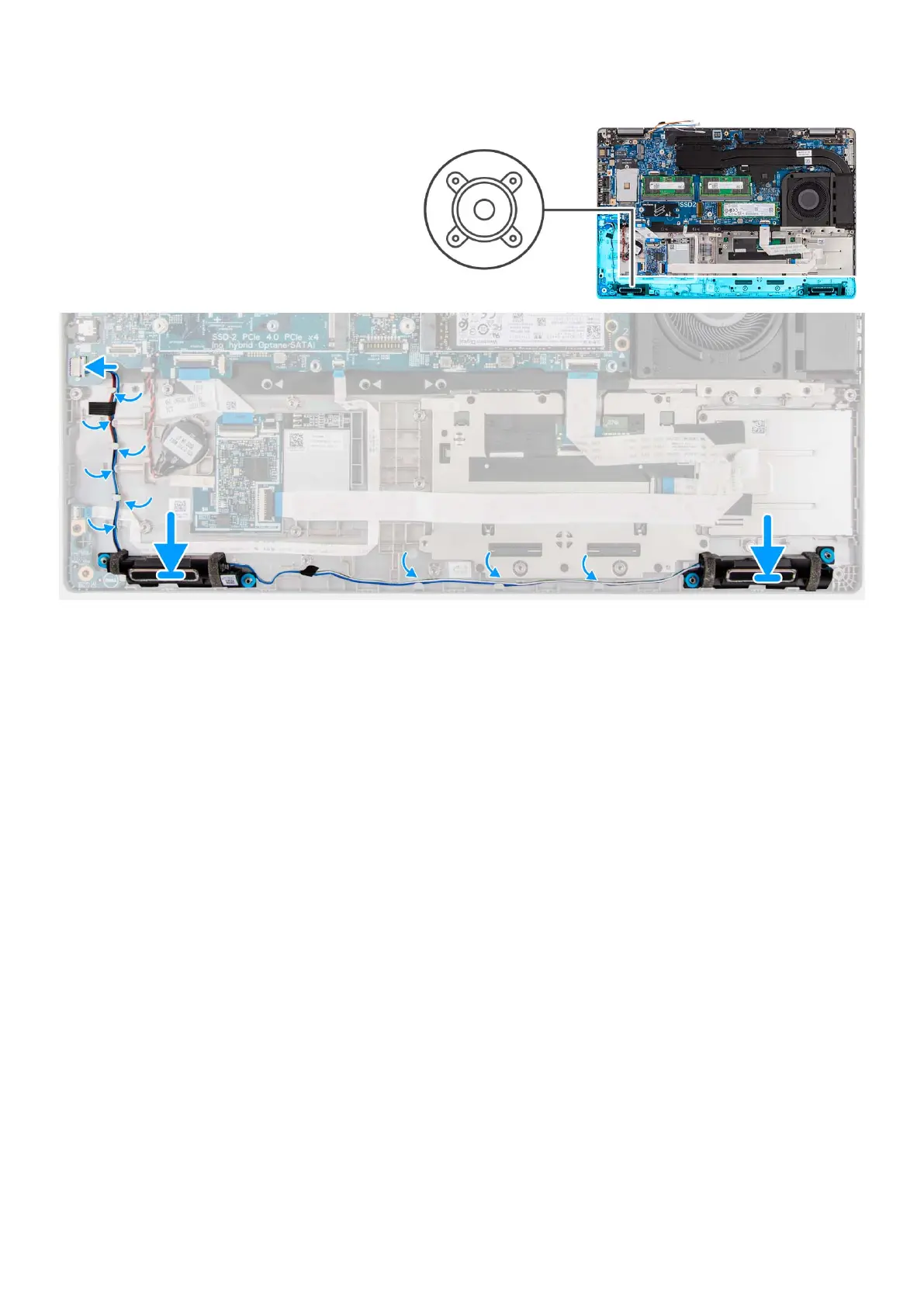

1. Using the alignment posts and rubber grommets, place the speakers on the slots of the palm-rest and keyboard assembly.
2. Route the speaker cable through the bottom-left corner of the system and ensure that the speaker cables are routed firmly
into the routing guides on the palm-rest and keyboard assembly.
3. Connect the speaker cable to the connector on the system board.
Next steps
1. Install the assembly inner frame.
2. Install the battery.
3. Install the hard drive.
4. Install the base cover.
5. Install the microSD card.
6. Install the SIM tray.
7. Follow the procedure in After working inside your computer.
System board
Removing the system board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
5. Remove the 2280 solid-state drive or 2230 solid-state drive.
6. Remove the battery.
68
Removing and installing components
