Steps

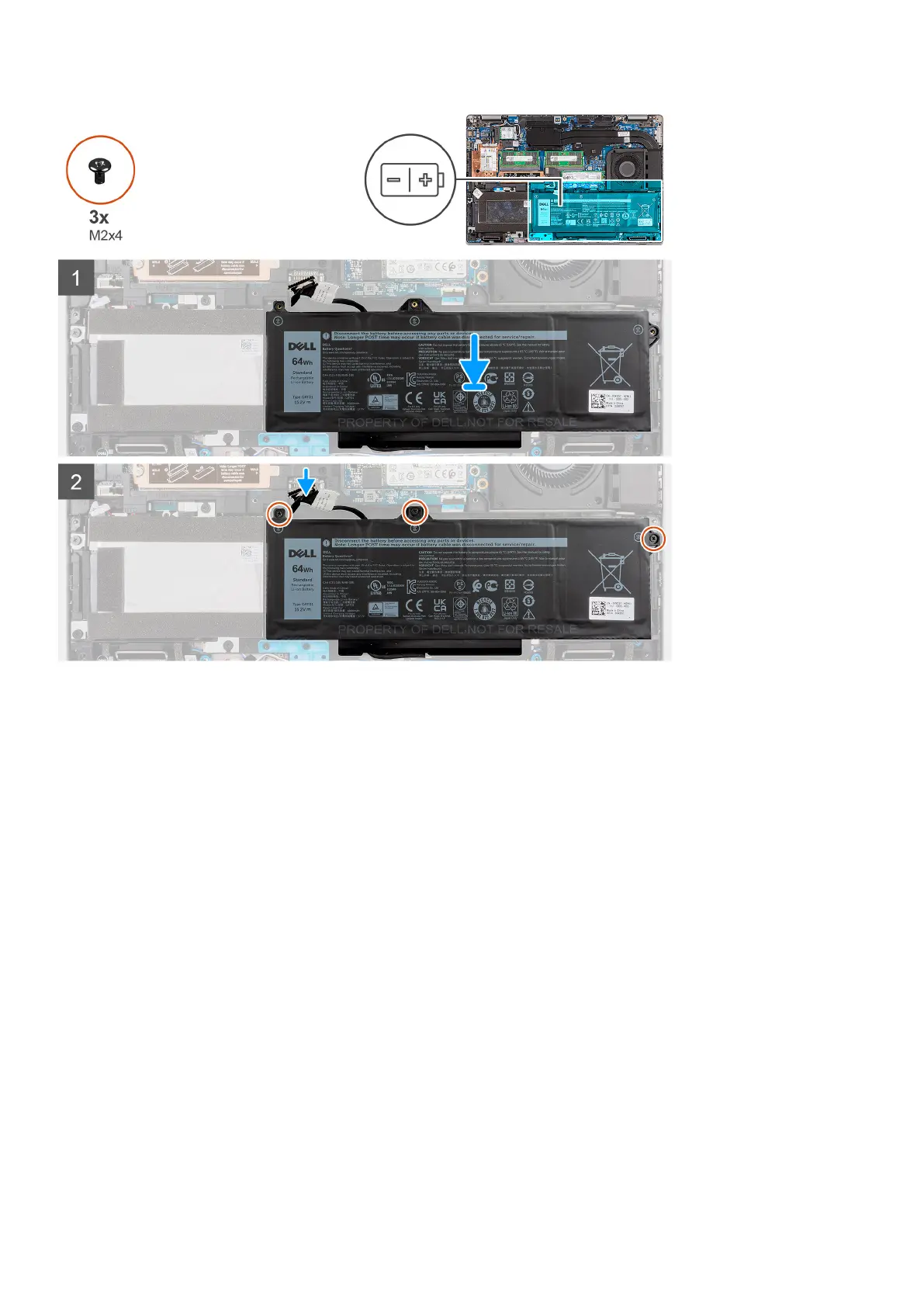

1. Align the screw holes on the 4-cell battery with the screw holes on the palm-rest and keyboard assembly.
2. Replace the three screws (M2x4) that secure the 4-cell battery to the palm-rest and keyboard assembly.
3. Connect the battery cable to the connector on the system board.
Next steps
1. Install the base cover.
2. Install the microSD card.
3. Install the SIM tray.
4. Follow the procedure in After working inside your computer.
Removing the 6-cell battery
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
About this task
The following images indicate the location of the 6-cell (97 Wh) battery and provides a visual representation of the removal
procedure.
48
Removing and installing components
