2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
About this task

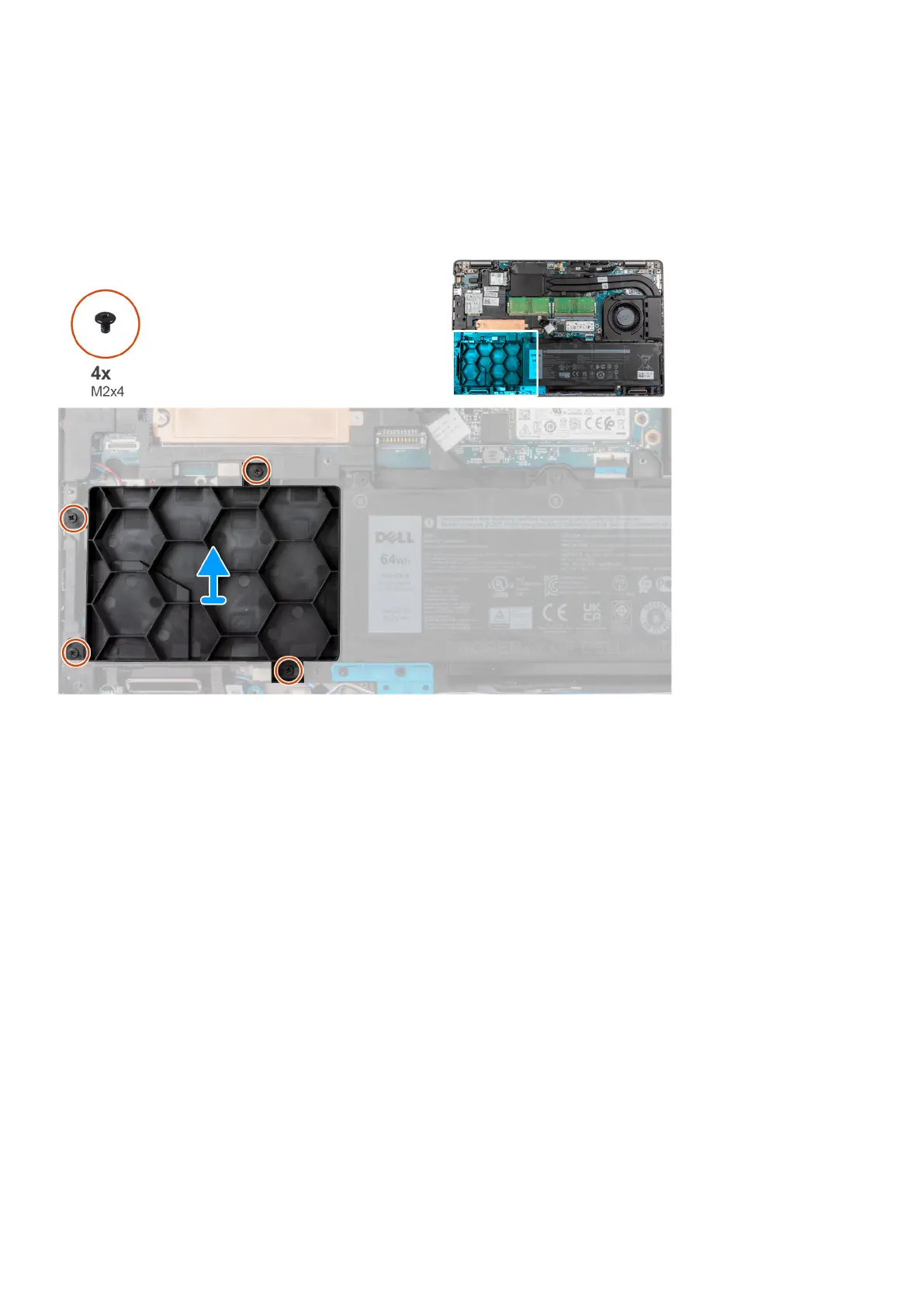

The following image indicates the location of the dummy hard-drive filler and provides a visual representation of the removal
procedure.
Steps
1. Remove the four screws (M2x4) that secure the dummy hard-drive filler to the system board.
2. Remove the dummy hard-drive filler from the computer.
Installing the dummy hard-drive filler
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the dummy hard-drive filler and provides a visual representation of the installation procedure.
40
Removing and installing components
