Steps
1. Place the display assembly on the system, and align the screw holes on the display hinges with screw holes on the system
board.
2. Replace the six screws (M2.5x5) that secure the display hinges to the system board.

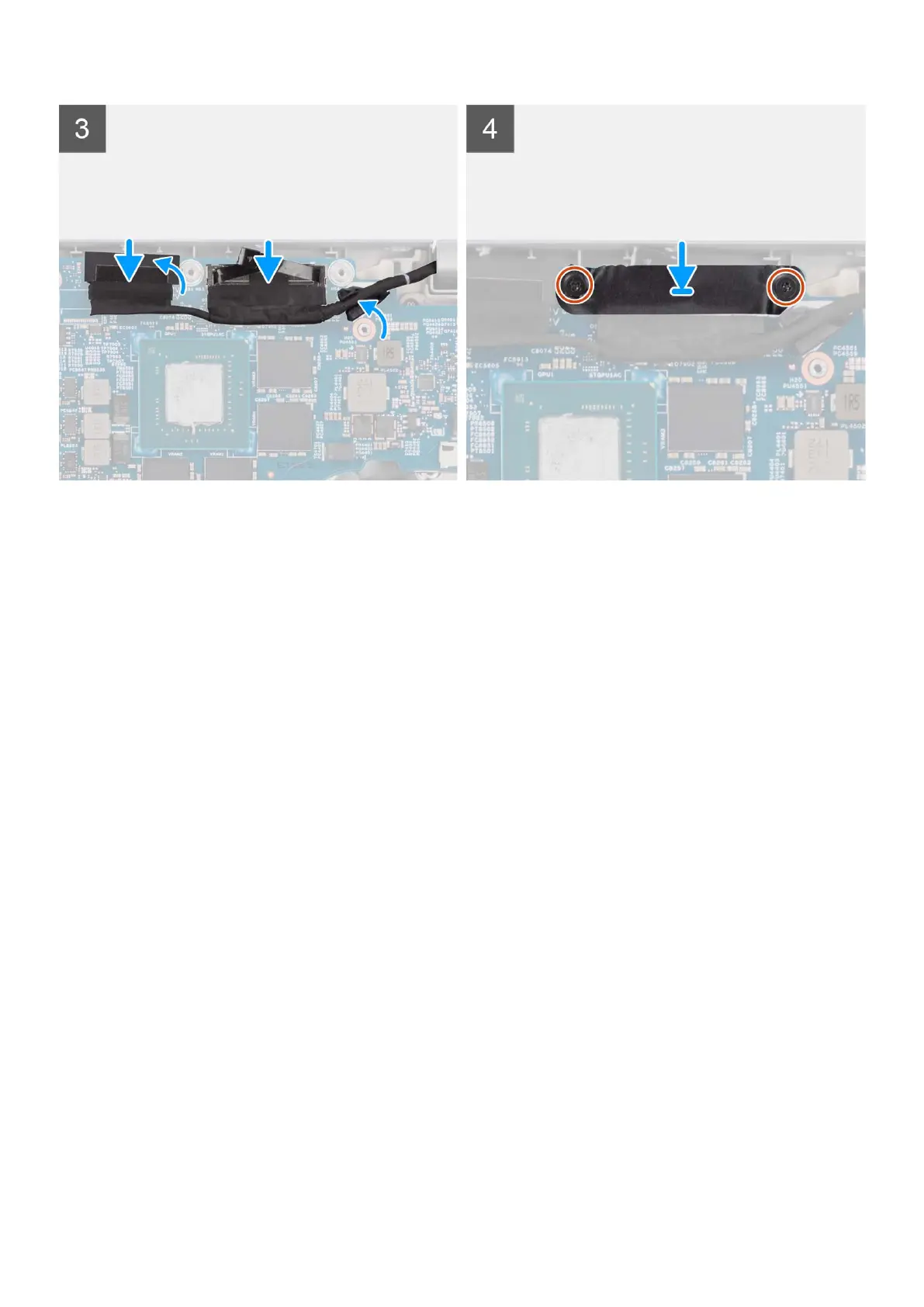

3. Close the display.
4. Route the display and eDP cable through the routing guide on the system board.
5. Connect the eDP cable to the connector on the system board.
6. Connect the display cable to the connector on the system board.
7. Adhere the tape that secures the display cable to the system board.
8. Connect the IR camera cable from its connector on the system board (for models shipped with an IR camera).
9. Connect the touchscreen cable from its connector on the system board (for models shipped with a touchscreen).
10. Align the screw holes on the eDP cable bracket with the screw holes on the system board.
11. Replace the two screws (M2x3) that secure the eDP cable bracket to the system board.
Next steps
1. Install the WWAN card.
2. Install the Wireless card.
3. Install the base cover.
4. Install the microSD card.
5. Install the SIM card.
6. Follow the procedure in After working inside your computer.
Display bezel
Removing the display bezel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
96
Removing and installing components
