Installing the heat sink and fan assembly—discrete
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
CAUTION: Incorrect alignment of the heat sink can damage the system board and processor.
NOTE: If either the system board or the heat sink is replaced, use the thermal pad/paste provided in the kit to ensure that
thermal conductivity is achieved.
About this task

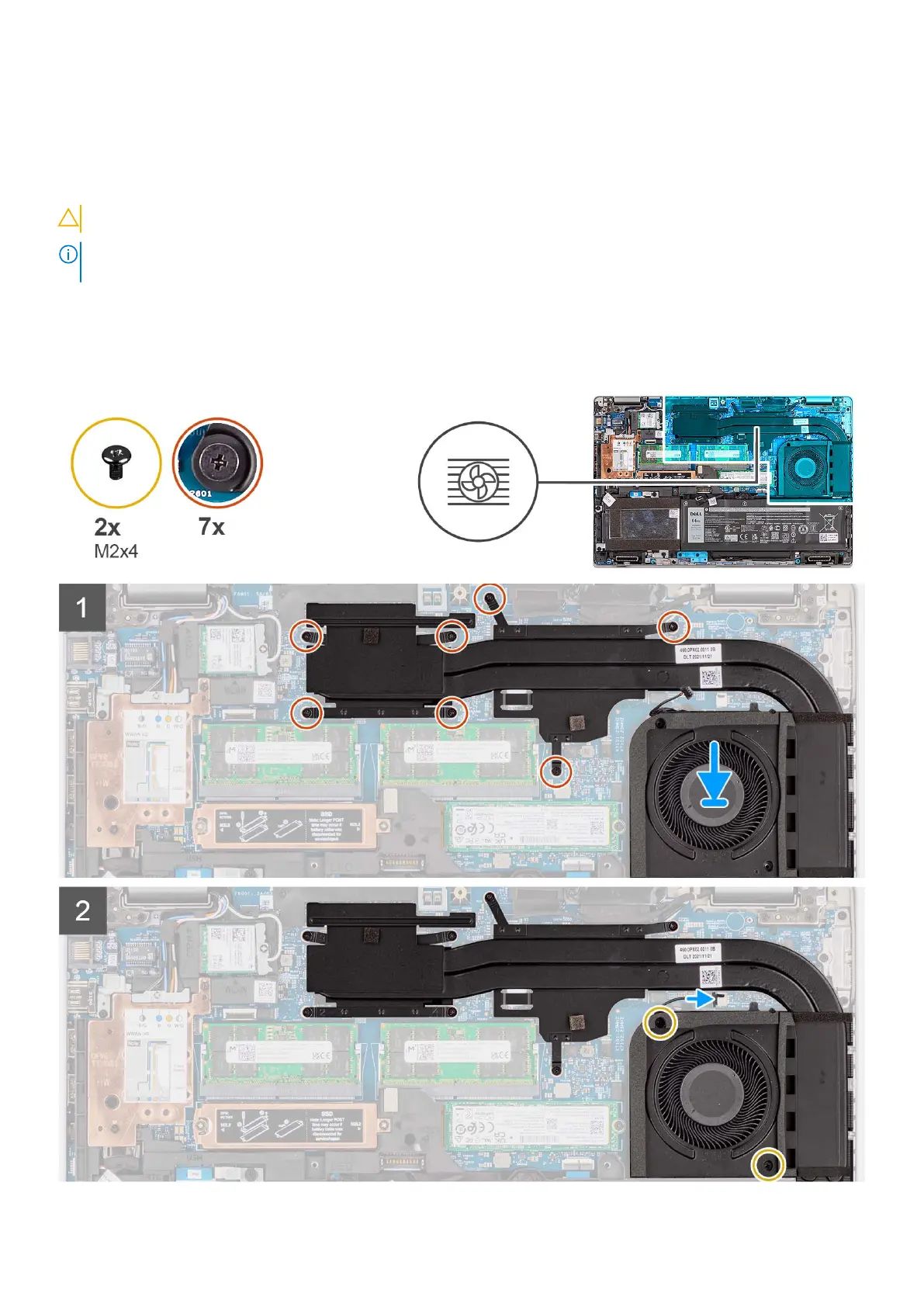

The following images indicate the location of the heat sink and fan assembly and provide a visual representation of the
installation procedure.
