Steps
1. Connect the battery cable to the system board.
2. Adhere the tape to secure the battery cable.
3. Align the screw holes on the base cover with the screw holes on the palm-rest assembly and keyboard assembly, and then
snap the base cover into place.

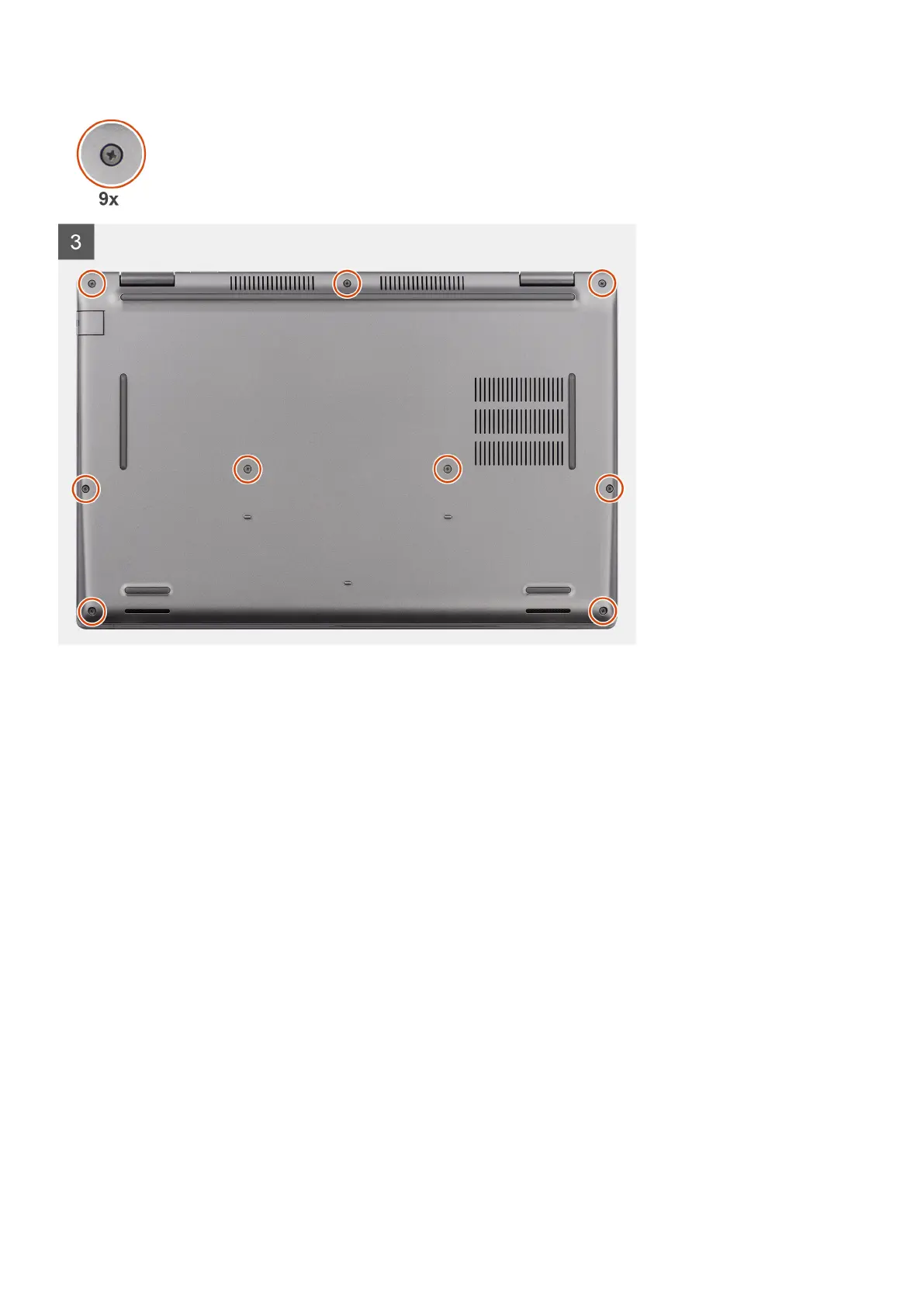

4. Tighten the nine captive screws that secure the base cover to the palm-rest and keyboard assembly.
Next steps
1. Install the microSD card.
2. Install the SIM card.
3. Follow the procedure in After working inside your computer.
Wireless card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
Removing and installing components
23
