Installing the display bezel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

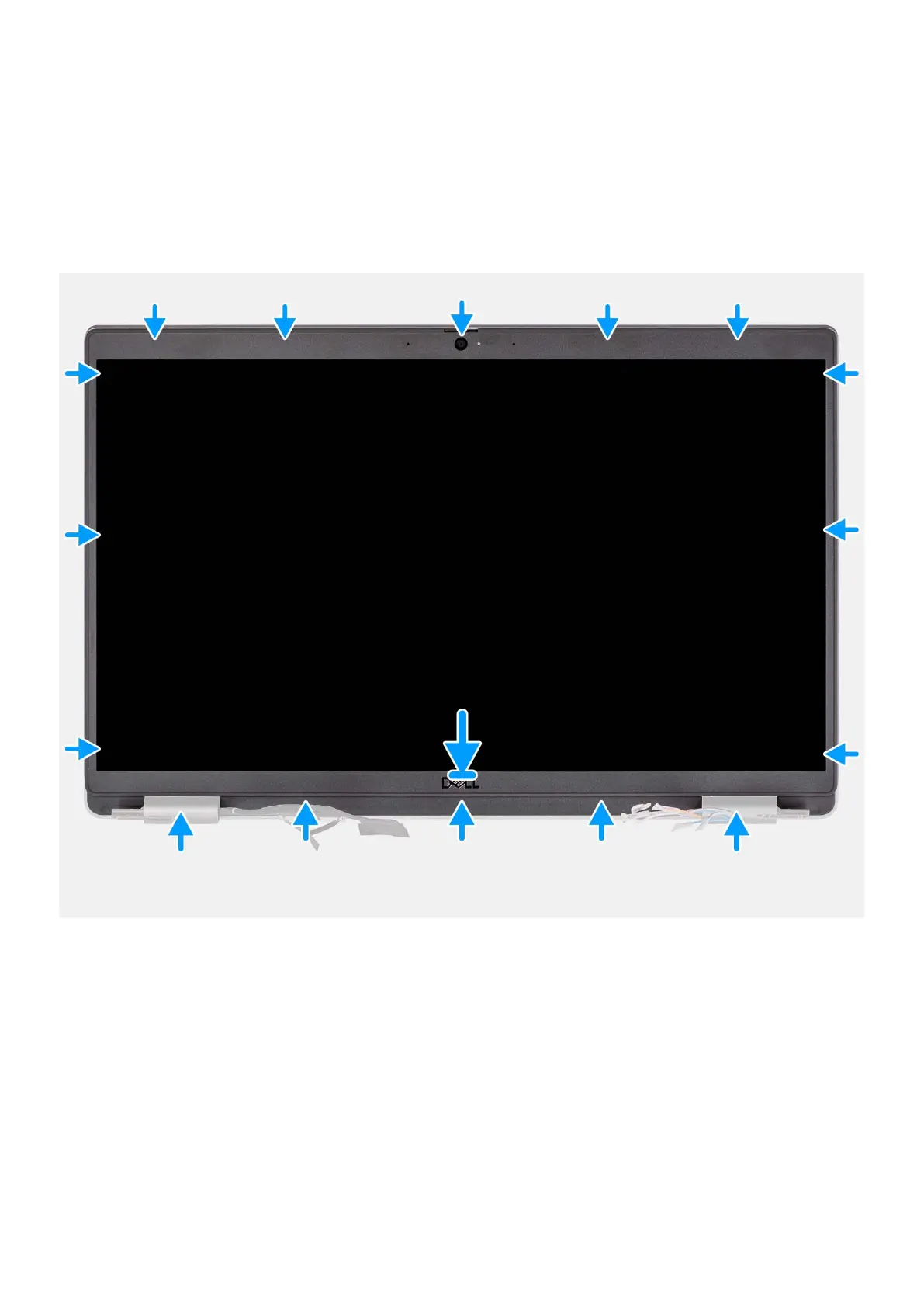

The following image indicates the location of the display bezel and provides a visual representation of the installation procedure.
Steps
1. Align and place the display bezel on the display assembly.
2. Gently snap the display bezel into place.
Next steps
1. Install the display assembly.
2. Install the WWAN card.
3. Install the Wireless card.
4. Install the base cover.
5. Install the microSD card.
6. Install the SIM card.
7. Follow the procedure in After working inside your computer.
98
Removing and installing components
