Steps

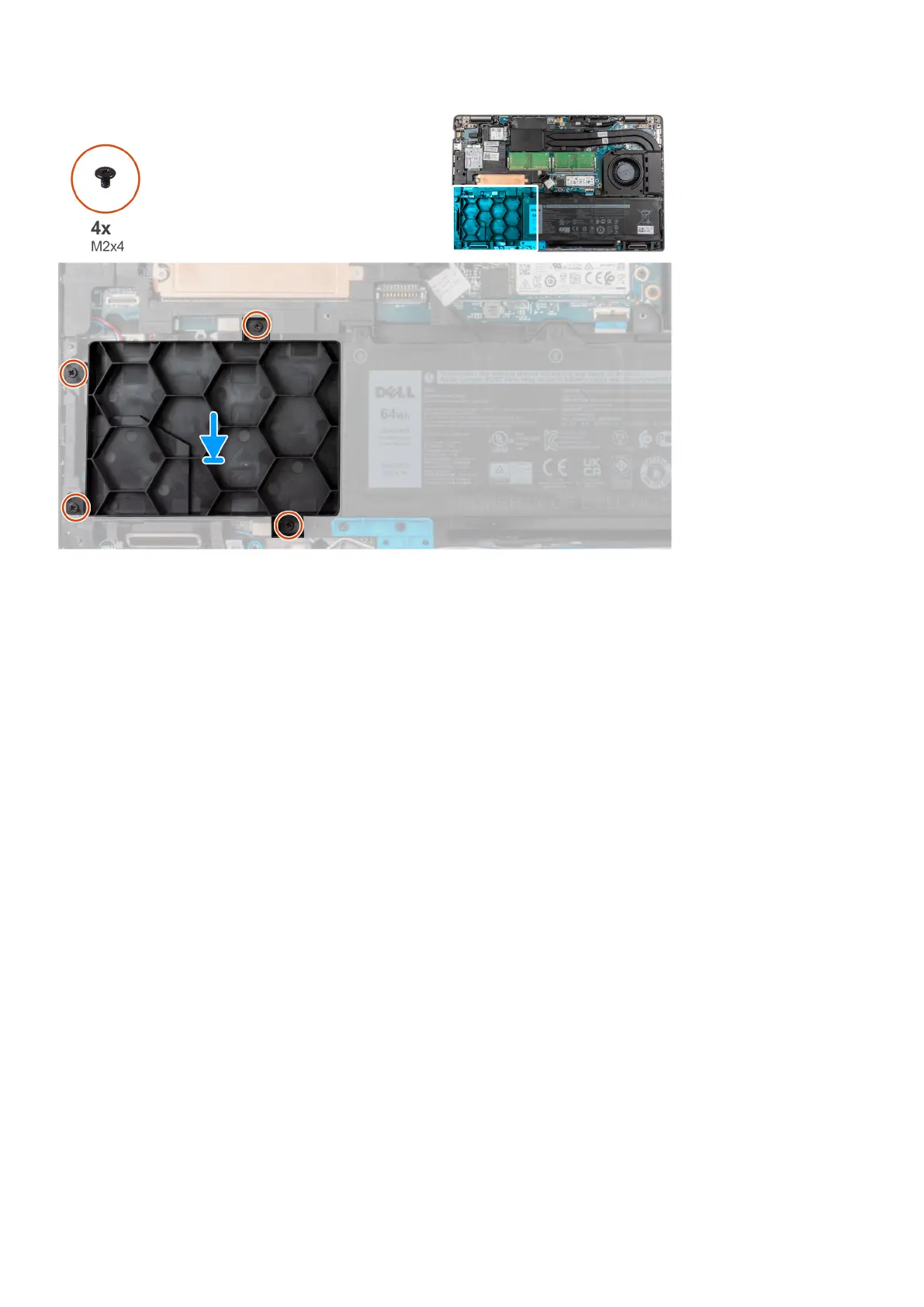

1. Align the screw holes on the dummy hard-drive filler with the screw holes on the palm-rest assembly.
2. Replace the four screws (M2x4) that secure the dummy hard-drive filler to the computer.
Next steps
1. Install the base cover.
2. Install the microSD card.
3. Install the SIM card.
4. Follow the procedure in After working inside your computer.
Hard-drive assembly
Removing the hard-drive assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
About this task
The following images indicate the location of the hard drive and provide a visual representation of the removal procedure.
Removing and installing components
41
