Dell P104F Service Manual

Steps

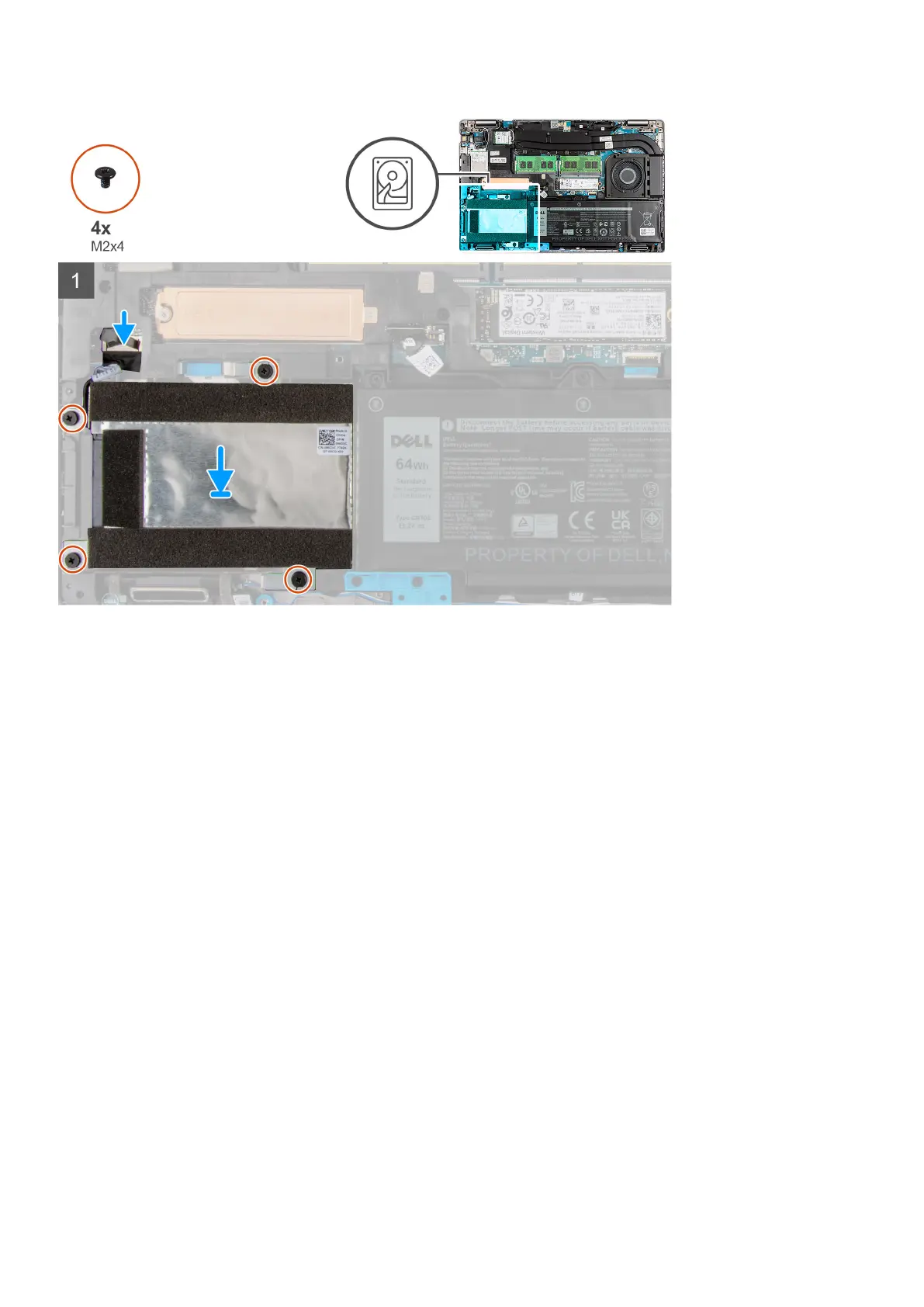

1. Align the screw holes on hard drive with the screw holes on the palm-rest and keyboard assembly.
2. Replace the four screws (M2x4) that secure the hard drive to the computer.
3. Connect the hard drive cable to the connector on the system board.
Next steps
1. Install the base cover.
2. Install the microSD card.
3. Install the SIM tray.
4. Follow the procedure in After working inside your computer.
Hard drive
Removing the hard-drive assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
5. Remove the hard drive.
About this task
The following images indicate the location of the hard drive and provide a visual representation of the removal procedure.
Removing and installing components
43
