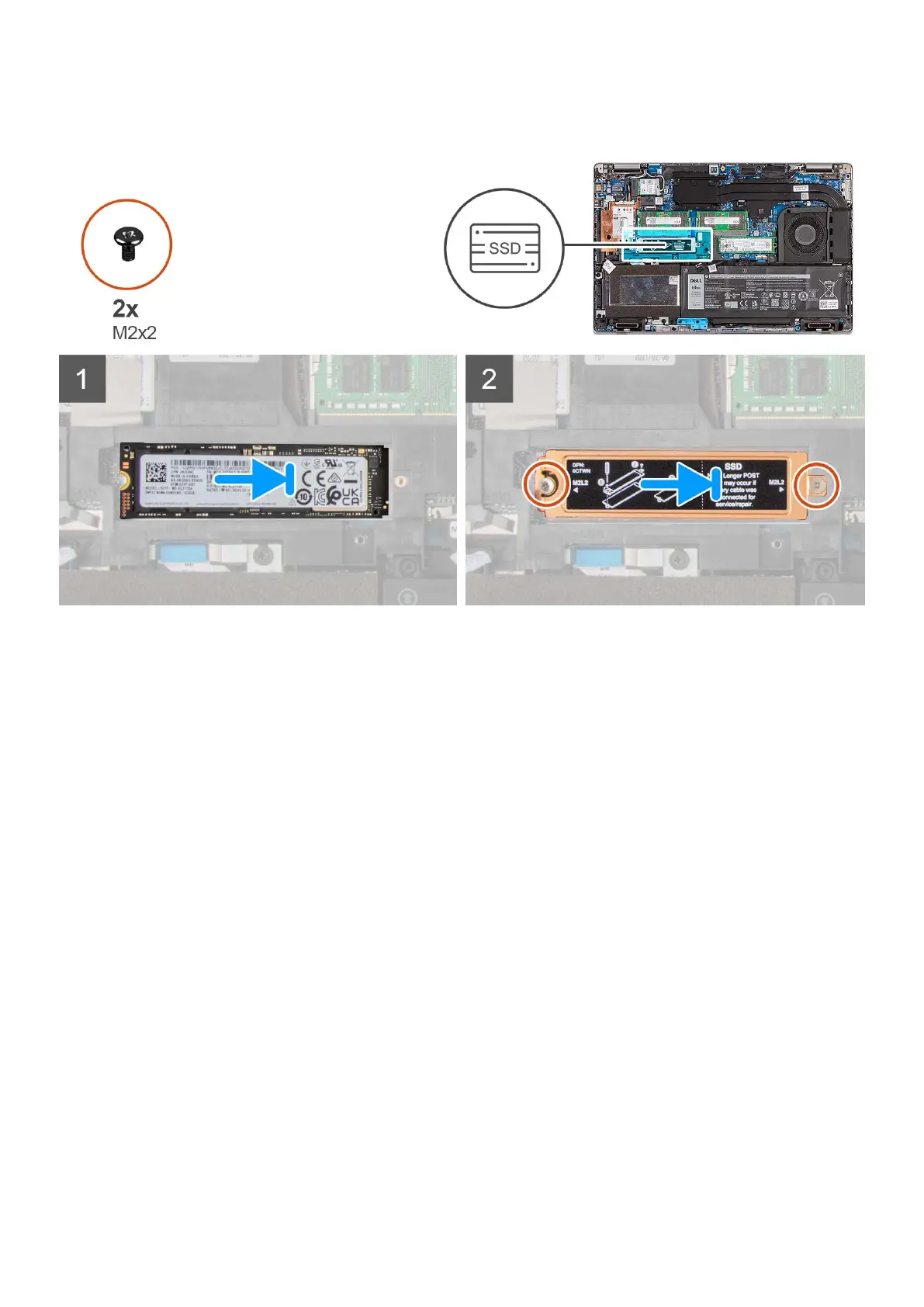

The following images indicate the location of the 2280 solid-state drive that is installed in M.2 slot and provides a visual
representation of the installation procedure.
Steps
1. Align the notch on the M.2 2280 solid-state drive with the tab on the M.2 solid-state drive slot.
2. Slide the M.2 2280 solid-state drive into the M.2 solid-state drive slot on the system board.
3. Place the solid-state drive thermal plate over the solid-state drive.
4. Align the screw holes on the solid-state drive and thermal plate with the screw hole on the palm-rest and keyboard
assembly.
5. Replace the two screws (M2x2) that secure the 2280 solid-state drive and thermal plate to the palm-rest and keyboard
assembly.
Next steps
1. Install the microSD card.
2. Install the SIM card.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
Memory
Removing the memory modules
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
Removing and installing components
37
