● M.2 2230 solid-state drive and an M.2 2230 thermal shield.
Your M.2 2230 is mounted on a 2230-specific thermal shield.
● M.2 2280 solid-state drive and a 2280-specific thermal shield.
The following image(s) indicate the location of the M.2 2280 solid-state drive and provides a visual representation of the
installation procedure.

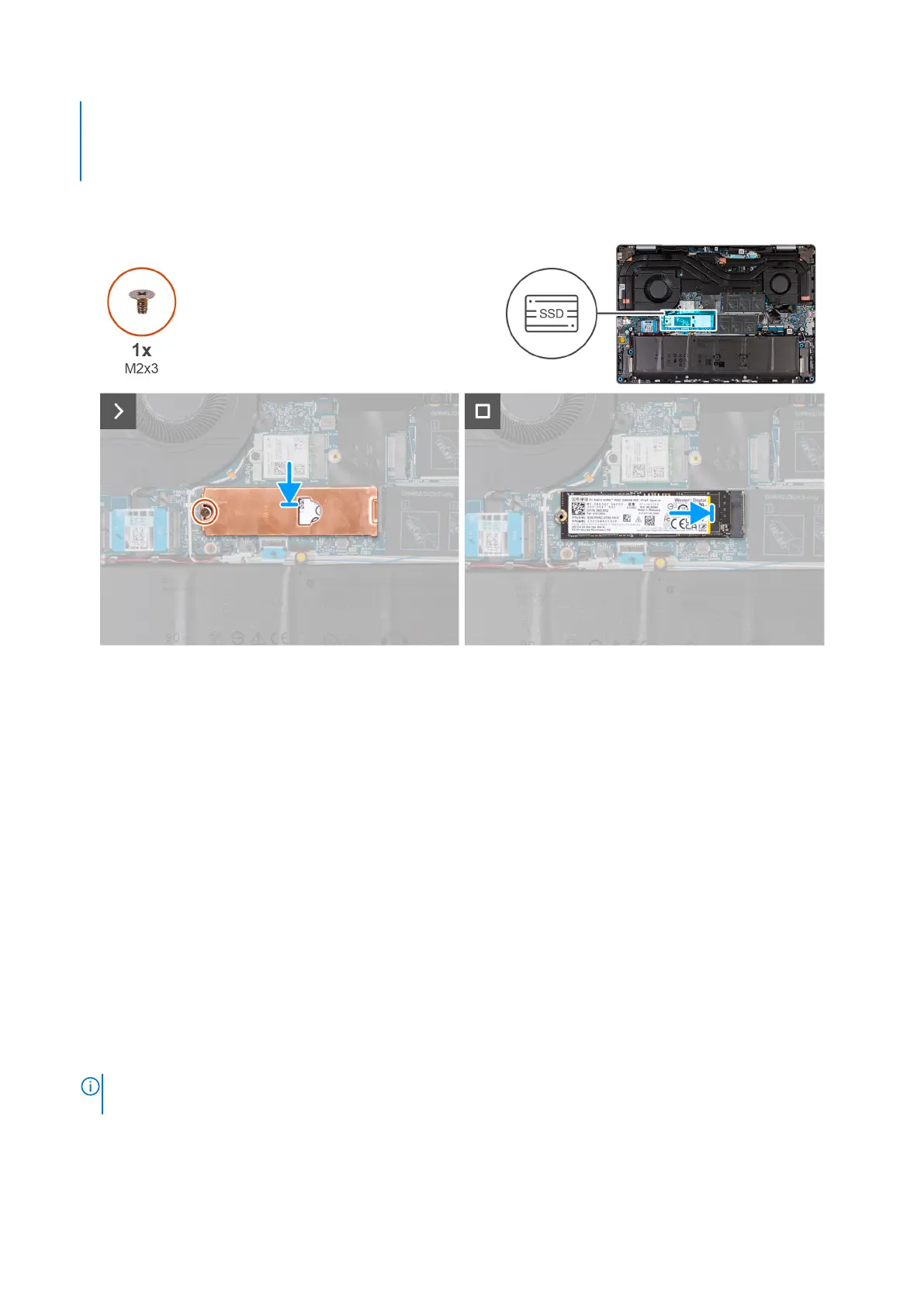

Figure 16. Installing the M.2 2280 solid-state drive
Steps
1. Align the notch on the M.2 2280 solid-state drive with the tab on the M.2 solid-state drive slot on the system board.
2. Slide the M.2 2280 solid-state drive into the M.2 solid-state drive slot (MAIN SSD) on the system board.
3. Place the M.2 2280 thermal shield on the M.2 2280 solid-state drive.
4. Replace the screw (M2x3) that secures the M.2 2280 solid-state drive and M.2 2280 thermal shield to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Wireless card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE:
Ensure that your computer is in Service Mode. For more information, see step 6 in Before working inside your
computer.
2. Remove the base cover.
Removing and installing Customer Replaceable Units (CRUs)
41
