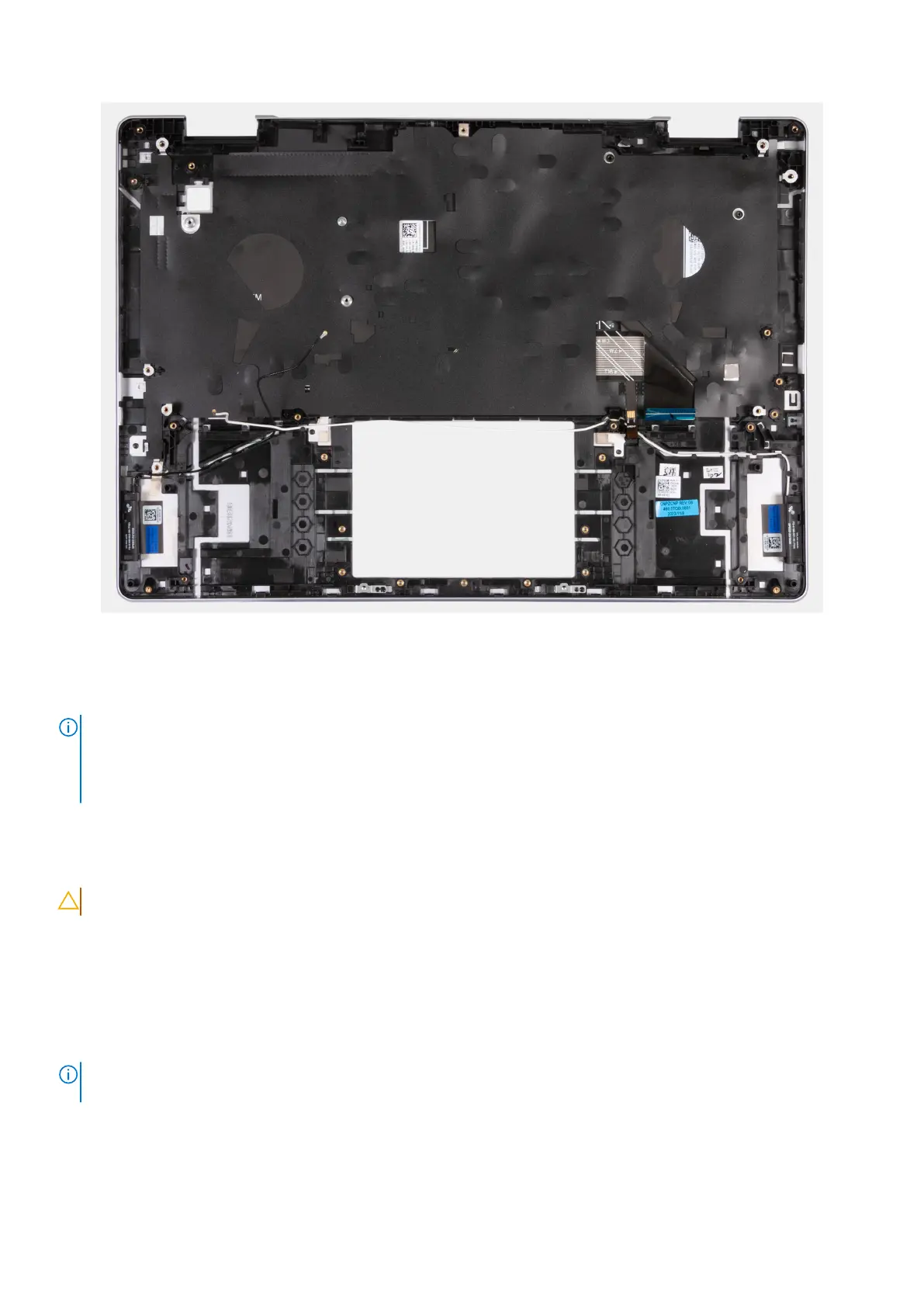

Figure 62. Palm-rest and keyboard assembly
Steps
After performing the Pre-requisites, you are left with the palm-rest and keyboard assembly.
NOTE:
The palm-rest and keyboard assembly consists of the following components:
● Palm rest
● Keyboard
● Wireless antenna (2)
Installing the palm-rest and keyboard assembly
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the palm-rest and keyboard assembly and provides a visual representation of the
installation procedure.
NOTE:
If either the system board or the heat sink is replaced, use the thermal grease that is provided in the kit to ensure
that thermal conductivity is achieved.
Removing and installing Field Replaceable Units (FRUs) 89
