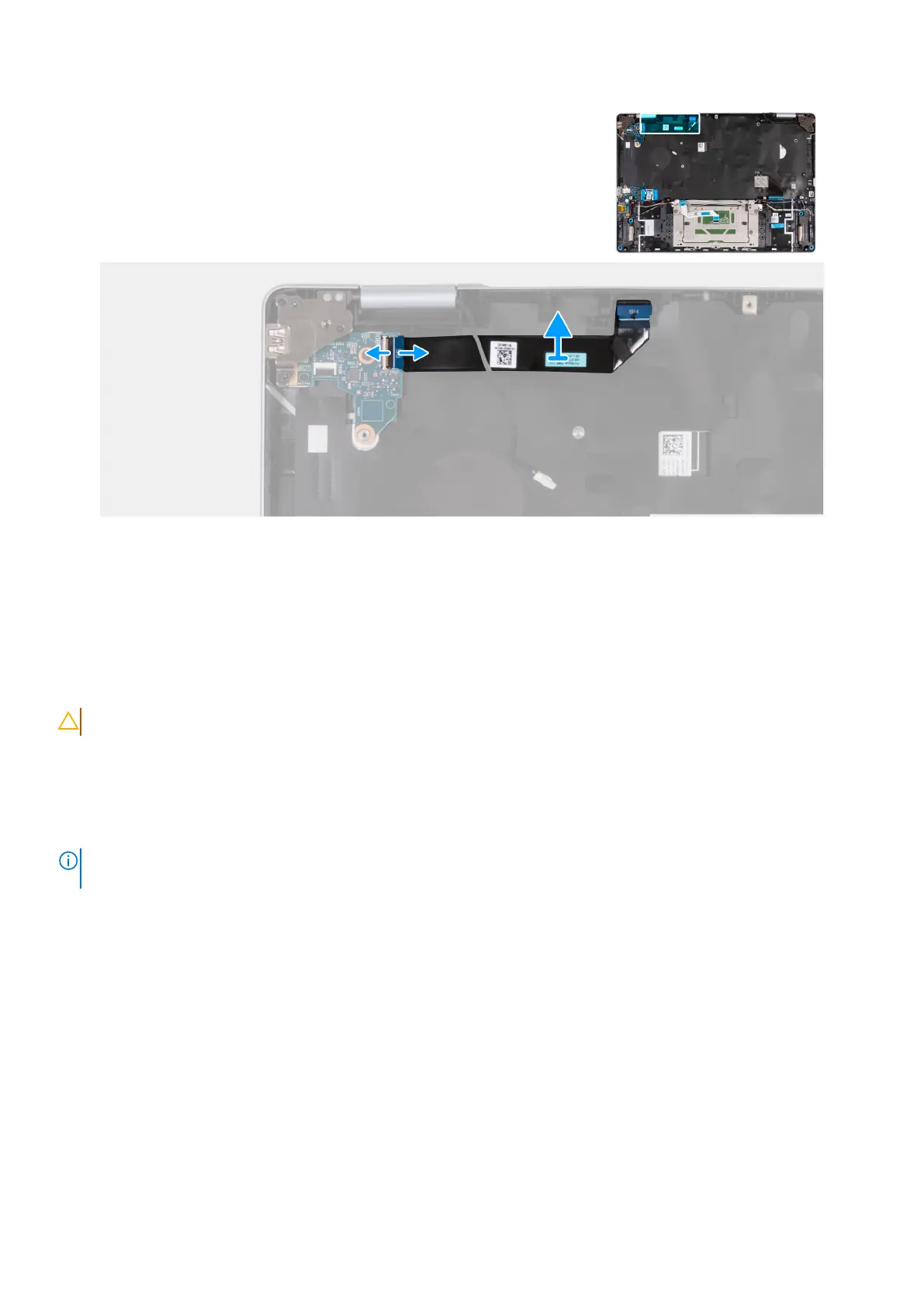

Figure 46. Removing the I/O-board cable
Steps
1. Lift the latch and disconnect the I/O-board cable from its connector (IOBD1) on the I/O board.
2. Peel the I/O-board cable off the palm-rest and keyboard assembly.
Installing the I/O-board cable
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE:
If either the system board or the heat sink is replaced, use the thermal grease that is provided in the kit to ensure
that thermal conductivity is achieved.
The following image(s) indicate the location of the I/O-board and provides a visual representation of the installation procedure.
72
Removing and installing Field Replaceable Units (FRUs)
