About this task
The following image(s) indicate the location of the audio board and provides a visual representation of the installation procedure.

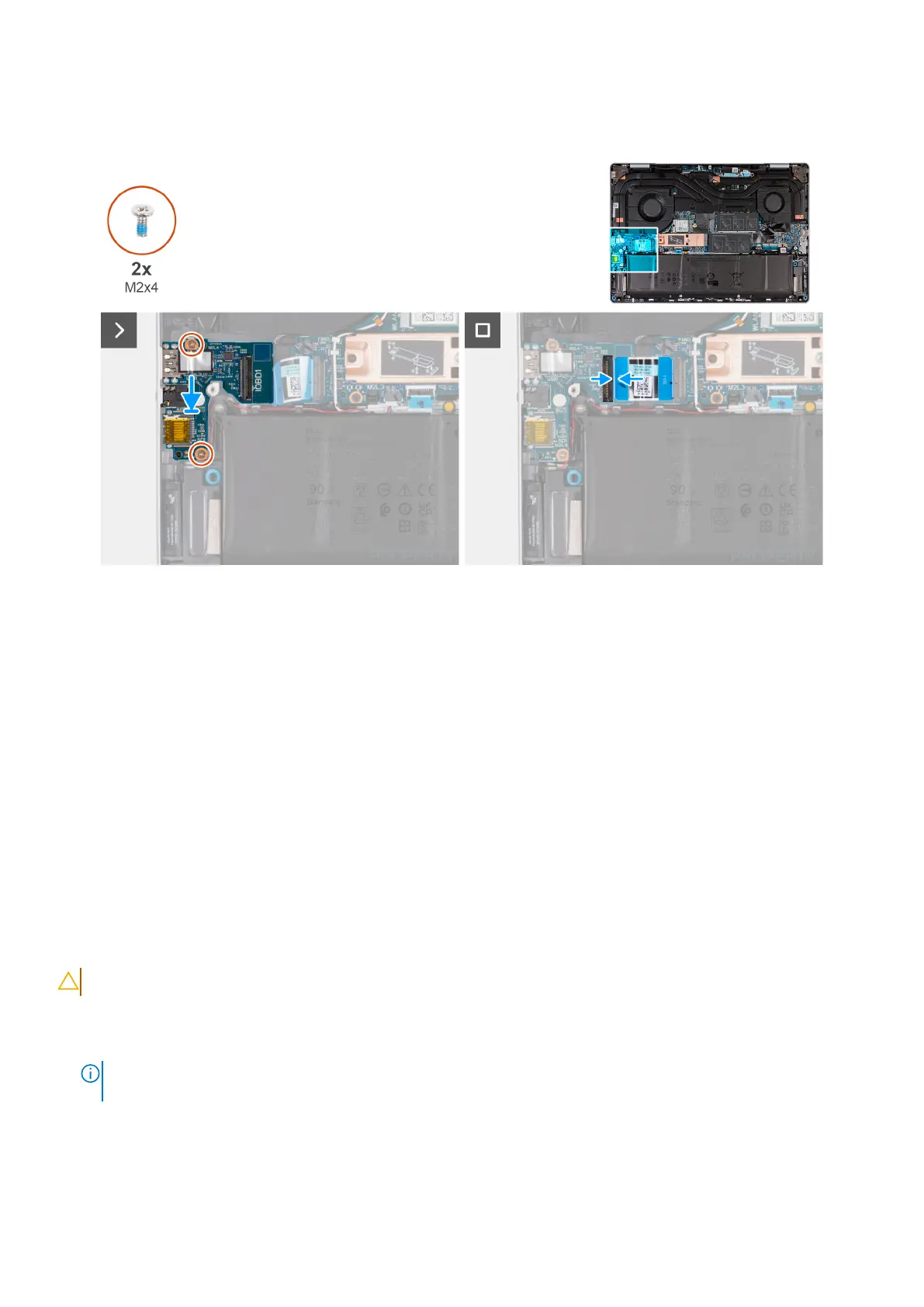

Figure 37. Installing the audio board
Steps
1. Place the audio board onto the palm-rest and keyboard assembly .
2. Align the ports on the audio board to the slots on the palm-rest and keyboard assembly.
3. Align the screw holes on the audio board to the screw holes on the palm-rest and keyboard assembly.
4. Replace the two screws (M2x4) that secure the audio board to the palm-rest and keyboard assembly.
5. Connect the audio-board cable to its connector (IOBD1) on the audio board and close the latch.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Audio-board cable
Removing the audio-board cable
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE:
Ensure that your computer is in Service Mode. For more information, see step 6 in Before working inside your
computer.
2. Remove the base cover.
64
Removing and installing Field Replaceable Units (FRUs)
