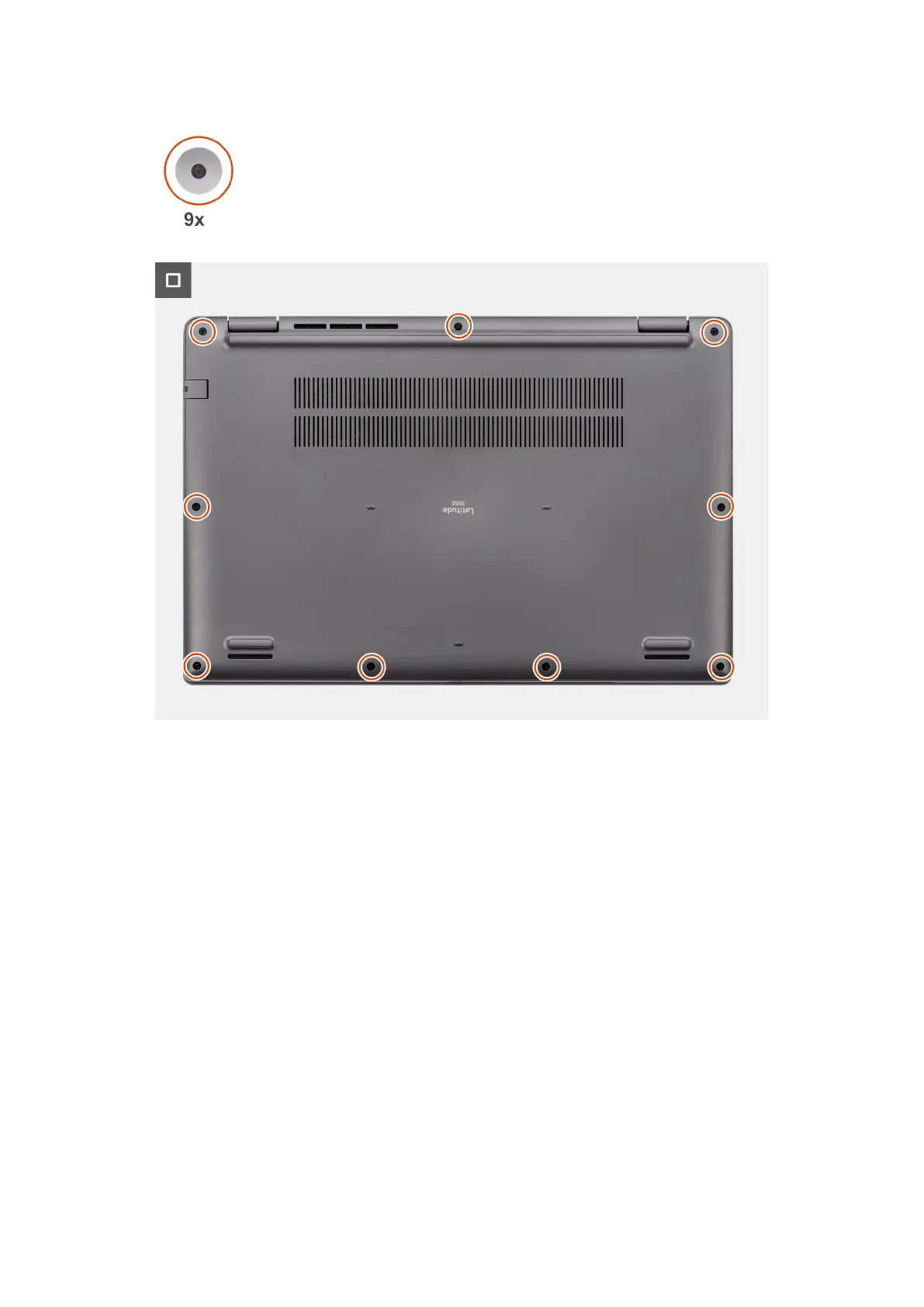

Figure 11. Installing the base cover
Steps
1. Place the base cover on top of the chassis.
2. Align the screw holes on the base cover with the screw holes on the palm-rest and keyboard assembly, and snap the base
cover latches into place.
3. Tighten the nine captive screws to secure the base cover to the chassis.
Next steps
1. Follow the procedure in After working inside your computer.
Memory module
Removing the memory module
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
40
Removing and installing Customer Replaceable Units (CRUs)
