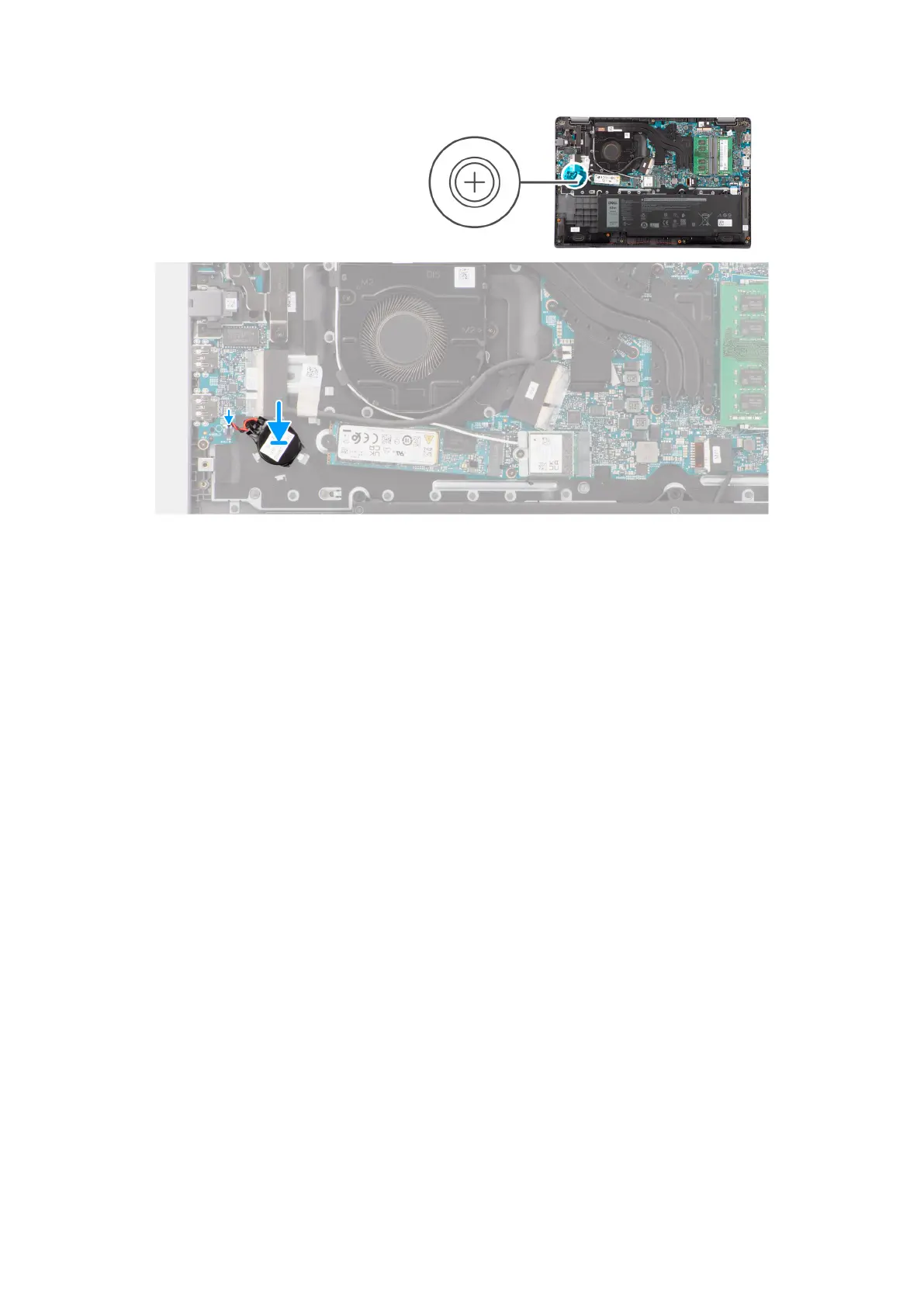

Figure 19. Installing the coin-cell battery
Steps
1. Align and place the coin-cell battery into its slot on the palm-rest and keyboard assembly.
2. Connect the coin-cell battery cable to the connector on the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following images indicate the location of the speakers and provide a visual representation of the removal procedure.
48
Removing and installing Customer Replaceable Units (CRUs)
