Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
I/O board
Removing the I/O board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following images indicate the location of the I/O board and provide a visual representation of the removal procedure.

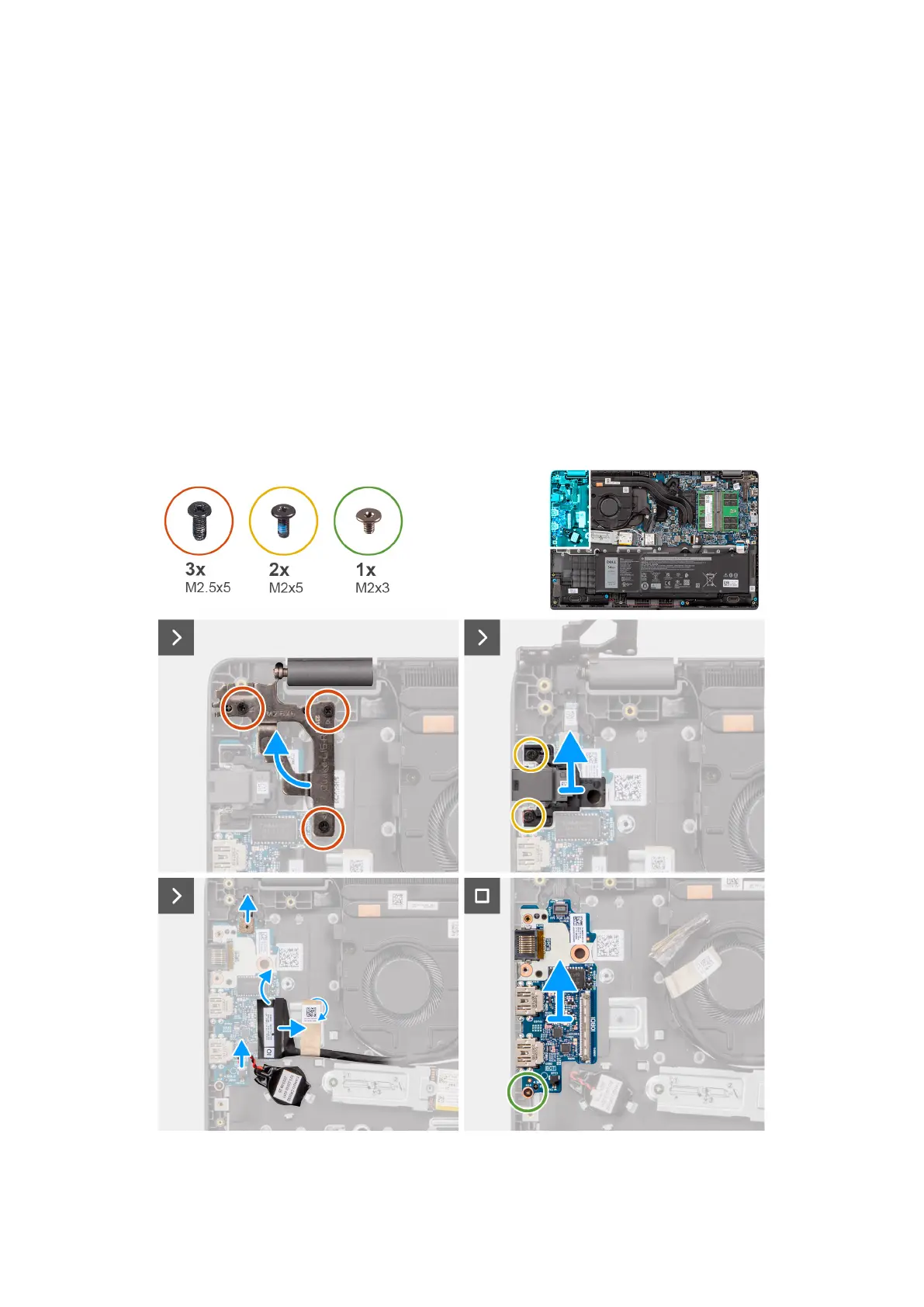

Figure 37. Removing the I/O board
68
Removing and installing Field Replaceable Units (FRUs)
