Display back cover
Removing the display back cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the display assembly.
4. Remove the display bezel.
5. Remove the display panel.
6. Remove the camera.
7. Remove the eDP cable.
About this task
The following image shows the display back cover and provide a visual representation of the removal procedure.

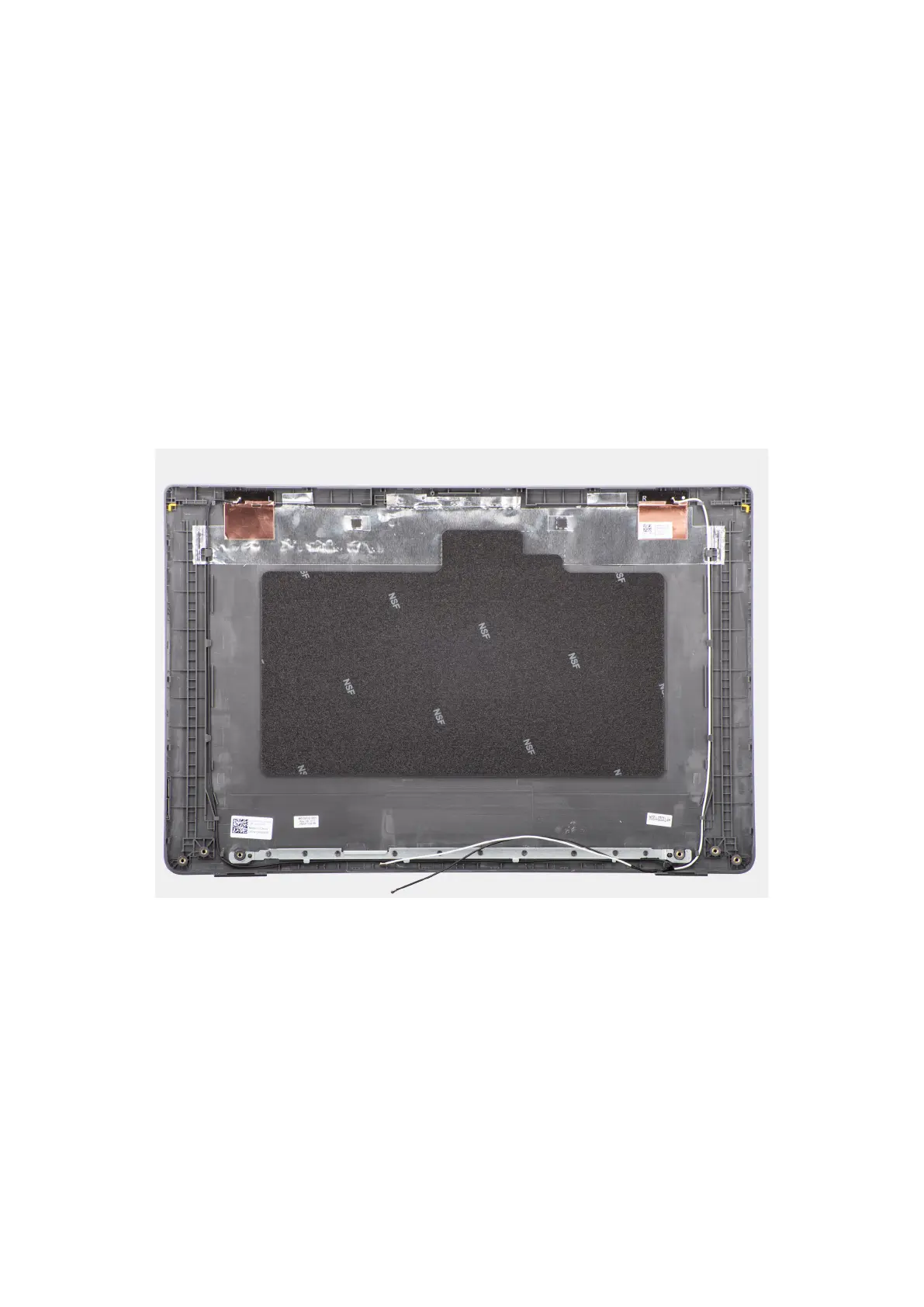

Figure 70. Removing the display back cover
Steps
After performing the steps in the pre-requisites, we are left with the display back cover.
Installing the display back cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
98
Removing and installing Field Replaceable Units (FRUs)
