Display panel
Removing the display panel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the display assembly.
4. Remove the display bezel.
About this task
The following images indicate the location of the display panel and provide a visual representation of the removal procedure.

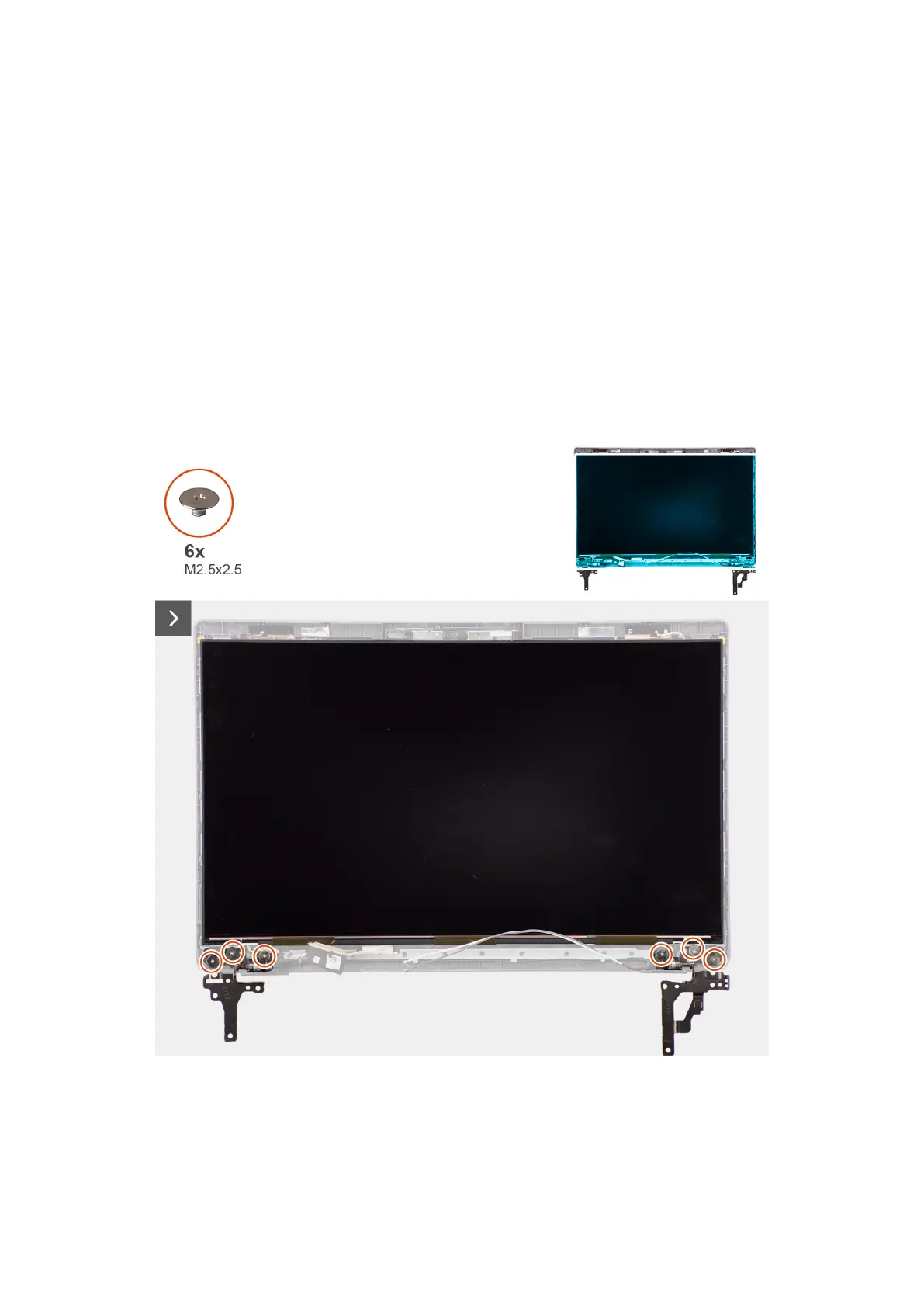

Figure 55. Removing the display panel
Figure 56. Removing the display panel
86
Removing and installing Field Replaceable Units (FRUs)
