9. Replace the three screws (M2.5x5) to secure the left display hinge to the system.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Power-button board
Removing the power button
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the I/O board.
About this task
The following images indicate the location of the power button and provide a visual representation of the removal procedure.

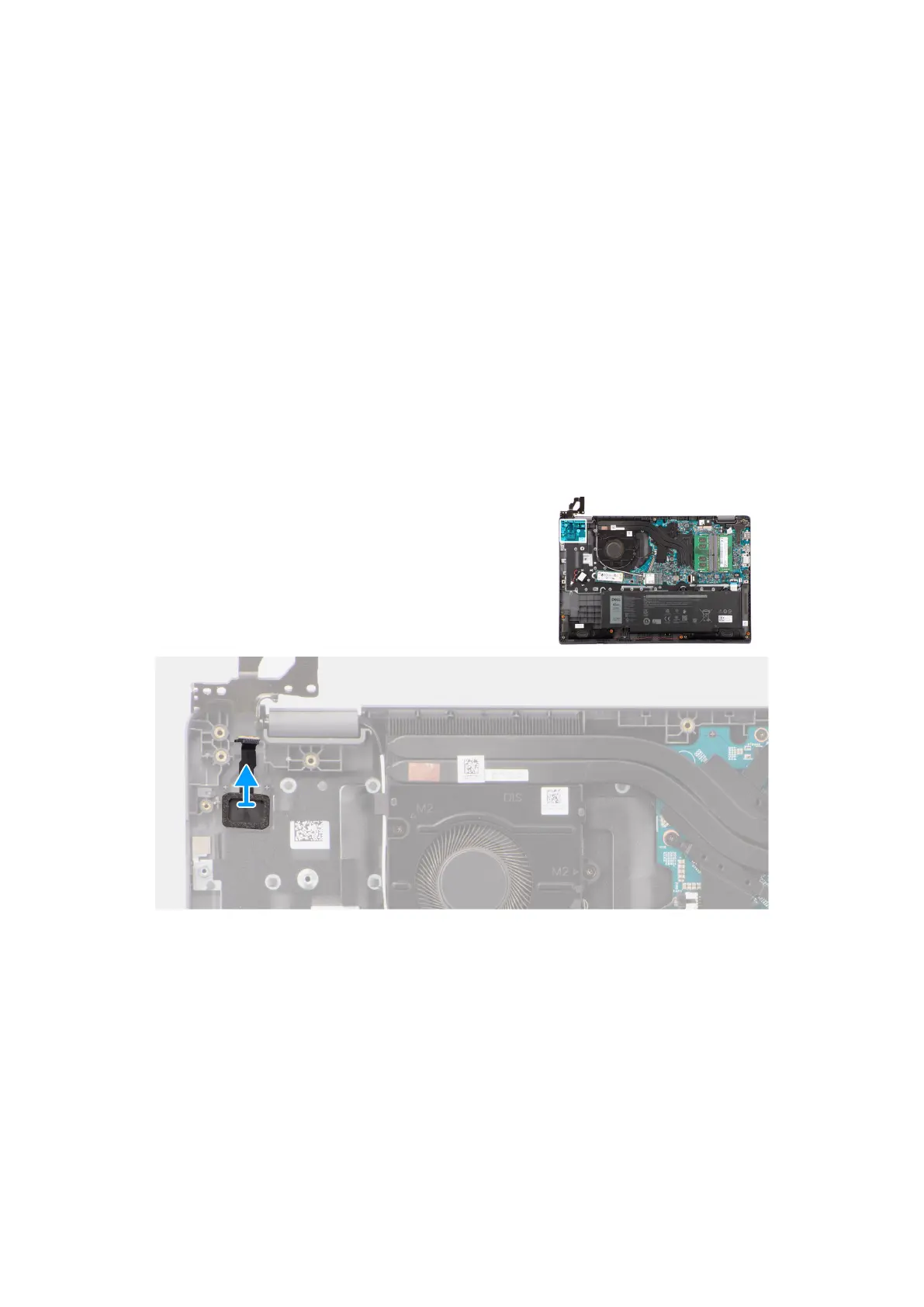

Figure 39. Removing the power button
Steps
Lift to remove the power button from the slot on the palm-rest and keyboard assembly.
Installing the power button
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
71
